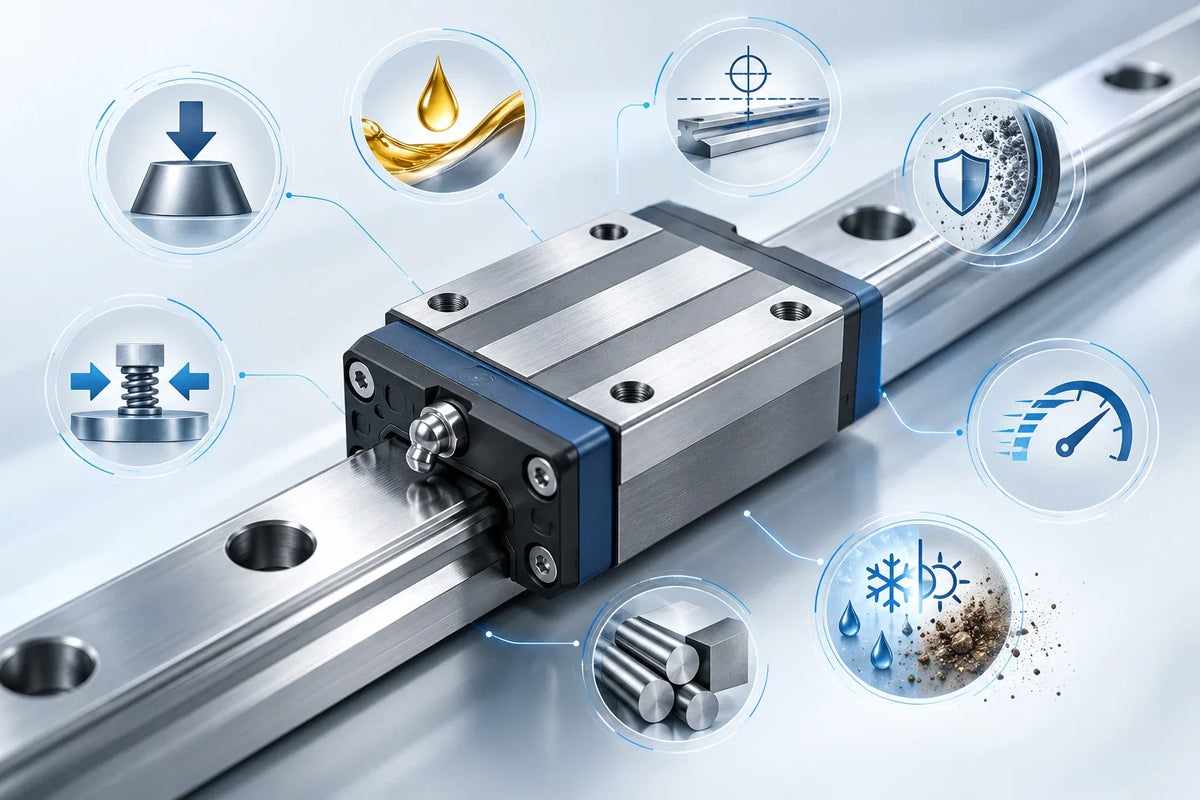

The service life of a linear guide rail depends on eight key factors: load capacity, lubrication, installation accuracy, contamination control, preload, operating conditions, manufacturing quality, and the working environment. Proper selection, installation, and maintenance can help reduce premature wear and improve long-term operating reliability.
This guide explains how each factor affects linear guide performance and what you can do to extend the service life of your linear guide system.
What Factors Affect Linear Guide Rail Service Life?
| Factor | Potential Impact | Recommended Action |
|---|---|---|
| Load capacity and distribution | Contact fatigue, excessive deformation, and premature wear | Calculate loads and moments before selecting a guide |
| Linear guide lubrication | Increased friction, wear, and corrosion | Use the correct lubricant and maintenance interval |
| Installation accuracy | Uneven loading, vibration, and abnormal wear | Check mounting surface accuracy and rail alignment |
| Contamination and sealing | Raceway damage, lubricant degradation, and corrosion | Select suitable seals and protective covers |
| Preload | Excessive friction or insufficient rigidity | Match preload to the application |
| Operating conditions | Increased dynamic loads and lubricant demands | Evaluate speed, acceleration, stroke, and duty cycle |
| Material and manufacturing quality | Reduced fatigue resistance and inconsistent performance | Choose products with appropriate specifications and quality control |
| Environment and maintenance | Corrosion, lubrication deterioration, and undetected damage | Inspect the system and adapt protection to the environment |
1. Load Capacity and Load Distribution
Load capacity is one of the most important factors affecting linear guide rail service life. When a guideway operates under excessive loads, the rolling elements and raceways experience higher contact stress, which can accelerate rolling fatigue and surface damage.
However, the total weight of the moving assembly is not the only consideration. Engineers must also account for:
- Radial and lateral loads: Forces acting in different directions on the guide system.
- Moment loads: Overturning, pitching, and yawing moments caused by eccentric loads or cantilevered structures.
- Dynamic loads: Additional forces generated during acceleration, deceleration, and sudden stops.
- Uneven load distribution: Differences in the forces carried by individual sliders due to rail spacing, slider positioning, or mounting errors.
For example, a machine carrying a heavy workpiece on an offset mounting plate may impose a substantial moment load on one or more sliders, even when the total weight appears acceptable.
How to extend service life:
Calculate the actual loads and moments under the most demanding operating conditions. Check the manufacturer's basic dynamic load rating, basic static load rating, and applicable safety factors. Where long operating life is required, verify the expected rating life using the manufacturer's calculation method.
Choosing a larger guide rail without evaluating the actual loading arrangement does not automatically guarantee a longer service life.
For more details, see SIMKAWA's guide to linear roller rail load capacity.
2. Linear Guide Lubrication
Proper linear guide lubrication reduces friction between rolling elements and raceways, helps prevent excessive wear, and protects contact surfaces against corrosion.
Insufficient lubrication can cause increased friction, abnormal heating, and premature wear. The wrong lubricant or an unsuitable maintenance interval can also reduce operating reliability.
Common lubrication problems include:
- Insufficient grease or oil supply.
- Lubricants with unsuitable viscosity for the operating conditions.
- Lubricant contamination by dust, metal particles, or moisture.
- Lubrication intervals that are too long for the actual workload.
- Inadequate lubricant distribution in certain mounting orientations.
Both grease and oil may be suitable for linear guide systems, but the correct choice depends on the guide design, operating speed, temperature, environment, and lubrication method.
How to extend service life:
Follow the manufacturer's lubrication instructions and establish a maintenance schedule based on actual travel distance, workload, operating conditions, and contamination levels.
For example, SIMKAWA's LMGQ product guidance gives 100 km of travel as a general reference for grease relubrication. This is not a universal interval for every linear guide model or application.
Learn more in our linear guide lubrication guide.
3. Installation Accuracy and Rail Alignment
Even a high-quality linear guide rail can wear prematurely if it is installed incorrectly.
The guide rail and slider must operate within the mounting accuracy and alignment requirements specified by the manufacturer. Incorrect installation can introduce internal stresses and unevenly distribute loads across the rolling elements.
Common installation problems include:
- Mounting surfaces with excessive flatness or straightness deviations.
- Two parallel rails that are not correctly aligned.
- Burrs, chips, or dirt trapped between the rail and mounting surface.
- Uneven bolt tightening that distorts the rail.
- Machine frames that deform under load or during assembly.
These problems may cause increased running resistance, vibration, abnormal noise, or uneven wear.
How to extend service life:
Clean the mounting surfaces before installation. Check the required flatness, straightness, and parallelism, and tighten mounting bolts in the recommended sequence and to the specified torque.
Some guide designs incorporate self-aligning features that can accommodate limited mounting errors. For example, SIMKAWA's LMGQ series is designed to absorb certain mounting surface deviations. Such features do not eliminate the need for correct installation.
Refer to our Linear Motion Rails Installation Guide for additional precautions.
4. Contamination and Sealing Protection
Dust, metal chips, abrasive particles, coolant, and moisture can enter the slider and damage the rolling contact surfaces. Contamination may also interfere with lubrication and accelerate wear.
The severity of this problem depends on the machine and its working environment.
For example:
- CNC machining may expose guideways to metal chips and cutting fluids.
- Woodworking equipment may generate fine dust and wood particles.
- Grinding and abrasive processing may introduce hard particles.
- Outdoor or washdown equipment may face moisture and corrosion risks.
Even small hard particles can create localized indentations or damage the raceways, potentially affecting accuracy and service life.
How to extend service life:
Select suitable end seals, bottom seals, scrapers, bellows, or rail covers according to the contamination risks. Inspect protective components regularly and replace damaged seals promptly.
SIMKAWA's LMGQ linear guideway incorporates end and bottom seals to help prevent contaminants from entering the system.
Explore the LMGQ Linear Guideway for details of its sealing and lubrication features.
5. Preload Selection
Preload is the internal loading applied to the rolling elements to reduce clearance and improve the rigidity of a linear guide system.
The appropriate preload helps maintain positioning accuracy and resist deformation under load. However, a higher preload is not always better.
Excessive preload can increase friction, heat generation, and internal contact stress. Conversely, insufficient preload may result in inadequate rigidity or unwanted clearance for applications that require precise motion.
The appropriate level depends on several factors:
- Required positioning accuracy.
- External loads and moment loads.
- Machine rigidity and structural design.
- Vibration and impact conditions.
- Operating speed and friction requirements.
How to extend service life:
Choose the preload level according to the application and the manufacturer's recommendations. Avoid modifying factory-set preload without confirming the technical requirements.
For example, SIMKAWA LG heavy-duty linear guide series provides different preload options for different operating requirements. Light, medium, and heavy preload should be selected according to the actual balance between friction, rigidity, and stability.
See the LG Heavy Duty Linear Guide for product-specific information.
6. Operating Speed, Acceleration, and Duty Cycle
Operating conditions influence the dynamic forces and lubrication requirements of a linear guide rail.
High speed alone does not necessarily shorten service life. The effect depends on the guide's design, applied load, acceleration, lubrication, and operating environment.
Factors that require attention include:
- Frequent acceleration and deceleration.
- Rapid direction changes and repeated starts and stops.
- High operating frequency over extended periods.
- Short-stroke reciprocating motion.
- Continuous operation under demanding loads.
Frequent motion reversals can increase dynamic loading, while high-speed operation may place greater demands on lubrication and heat dissipation. Short-stroke applications may also require particular attention to lubricant distribution and localized wear.
How to extend service life:
Evaluate the complete motion profile rather than selecting a guide based only on maximum speed. Check the manufacturer's permissible speed, acceleration, load ratings, and lubrication recommendations.
Where necessary, optimize acceleration and deceleration settings and avoid unnecessary shock loads. The guide system should be selected for the actual duty cycle, not just occasional peak performance.
7. Material and Manufacturing Quality
The material properties and manufacturing quality of a linear guide rail affect its ability to withstand repeated rolling contact.
Important considerations include:
- Material quality and heat treatment.
- Raceways' hardness and surface condition.
- Geometric accuracy and dimensional consistency.
- Rolling element quality.
- Consistency of assembly and inspection processes.
Poor surface quality, unsuitable heat treatment, or inconsistent manufacturing can reduce fatigue resistance and increase the risk of premature damage.
However, material quality alone does not determine service life. A high-quality guide can still fail early if it is overloaded, poorly lubricated, or incorrectly installed.
How to extend service life:
Choose a supplier that provides clear technical specifications, appropriate load ratings, defined accuracy grades, and consistent quality inspection. Verify that the selected product meets the requirements of the intended application.
SIMKAWA provides linear guide options for different load, rigidity, precision, and installation requirements. Selecting the correct series and configuration is an important part of achieving reliable operation.
8. Working Environment and Maintenance
The operating environment affects both the condition of the guideway and the effectiveness of its protective and lubrication systems.
High temperatures may alter lubricant performance, while moisture and corrosive substances can damage exposed metal surfaces. Vibration, shock, and inadequate maintenance can further accelerate deterioration.
Maintenance is especially important because early signs of damage may be subtle.
Watch for the following warning signs:
- Unusual noise during movement.
- Increased running resistance or inconsistent motion.
- Unexpected vibration or positioning errors.
- Rust, damaged seals, or contaminated lubricant.
- Visible raceway damage or rolling fatigue flaking.
These symptoms do not always mean that the guide rail itself has failed. They may also result from alignment problems, mounting looseness, lubrication issues, or other machine faults.
How to extend service life:
Establish a regular inspection schedule based on the application and operating conditions. Check lubrication, seals, mounting bolts, running smoothness, and positioning performance. Investigate unusual changes promptly rather than waiting for a complete failure.
For equipment exposed to dust, moisture, or corrosive substances, select suitable protective measures and increase inspection frequency when necessary.
Conclusion
The service life of a linear guide rail depends on the combined effects of loading, lubrication, installation accuracy, contamination, preload, operating conditions, manufacturing quality, and the working environment.
SIMKAWA offers linear guide solutions for different load capacities, precision requirements, and industrial applications. Review our linear guide products to identify a suitable configuration for your equipment.
Frequently Asked Questions
1. What is the most important factor affecting linear guide rail service life?
There is no single factor that dominates every application. Excessive loading, inadequate lubrication, installation misalignment, and contamination are common causes of premature wear. The most important factor depends on the machine's load, operating conditions, and environment.
2. Does lubrication extend linear guide rail service life?
Yes. Appropriate lubrication reduces friction, limits wear, and helps protect rolling contact surfaces. However, lubrication cannot compensate for excessive loads, incorrect installation, damaged raceways, or inadequate contamination protection.
3. How often should a linear guide rail be lubricated?
The interval depends on the guide model, travel distance, load, speed, lubricant, and working environment. SIMKAWA's LMGQ product guidance uses 100 km of travel as a general grease relubrication reference. Always confirm the correct interval for the specific guide and application.
4. Can excessive preload shorten linear guide service life?
Yes. Excessive preload can increase internal contact forces, friction, and heat generation. Select preload according to the required rigidity, precision, loading conditions, and manufacturer specifications.
