Rigid Coupling
Shop high-strength rigid shaft couplings ideal for precise alignment in motors, gearboxes, and industrial machinery. Zero backlash, corrosion-resistant.
Quantity:
Choose options
Quantity:
Quantity:

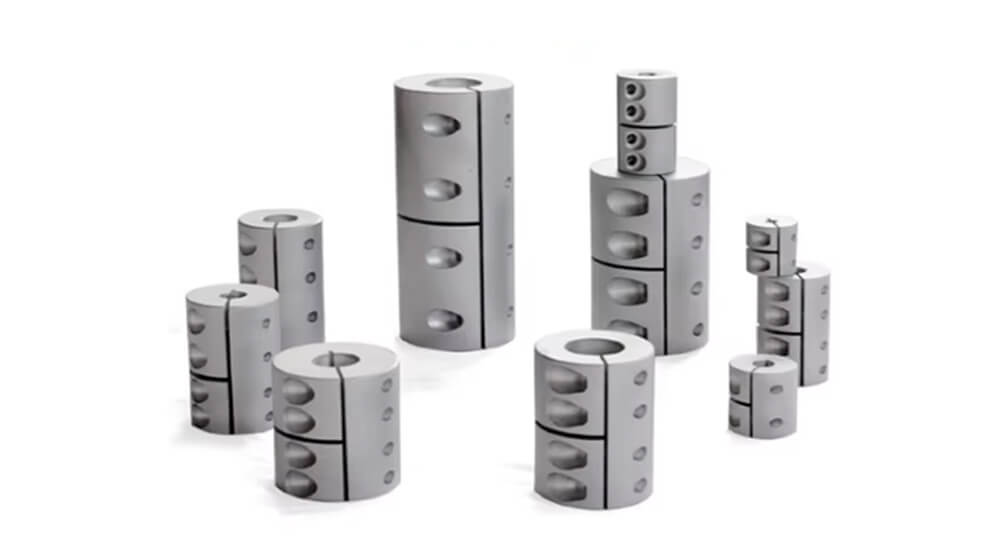

Rigid Coupling Descriptions
- The rigid coupling is made of aluminum alloy, which is particularly resistant to oil and chemicals.
- The hard aluminum alloy material ensures the low inertia, high sensitivity, long life and maintenance-free of the rigid coupling. At the same time, the clamping rigid coupling has the common characteristics of high torque rigidity and zero rotational clearance of the coupling.
- The rigid shaft coupling is a coupling composed of an integrated structure. It can perform excellent performance under low speed, high speed and high torque conditions. It is a coupling with extremely high cost performance.
simkawa shaft coupling
Customization Options
Simkawa is proficient in the design and manufacture of various couplings, with excellent materials. Different models can meet different needs. You can customize according to your needs or provide drawings and technical requirements. We will provide you with the best quality products at the best price and high-quality service.
Product Parameter
| Model | Aperture | D | L | Torque (N.m) | Allowable speed (min-1) | Tightening torque | ||||
| d1 | d2 | |||||||||
| Min | Max | Min | Max | Min | Max | |||||
| JR16 | 4 | 6 | 4 | 6 | 16 | 16 | 0.3 | 0.6 | 20000 | 0.7 |
| JR16C | 5 | 6 | 5 | 6 | 16 | 16 | 0.3 | 0.6 | 18000 | 1.0 |
| JR20 | 5 | 10 | 5 | 10 | 20 | 30 | 0.5 | 1.0 | 20000 | 0.7 |
| JR20C | 5 | 8 | 5 | 8 | 20 | 30 | 0.5 | 1.0 | 16000 | 1.0 |
| JRL20C | 5 | 8 | 5 | 8 | 20 | 24 | 0.5 | 1.0 | 14000 | 1.0 |
| JR25 | 6 | 12 | 5 | 12 | 25 | 40 | 1 .0 | 2.0 | 12000 | 1.7 |
| JR25C | 6 | 10 | 5 | 10 | 25 | 40 | 1 .0 | 2.0 | 16000 | 1.5 |
| JRL25C | 6 | 10 | 5 | 10 | 25 | 36 | 1 .0 | 2.0 | 12000 | 1.0 |
Metal Bellows Coupling Solutions
Machine Tools
Industrial Robots
Automation Equipment
CNC Milling Machines
Product Packaging
1. PE bag independent packaging.
2. Support neutral packaging.
3. Logo customization.
