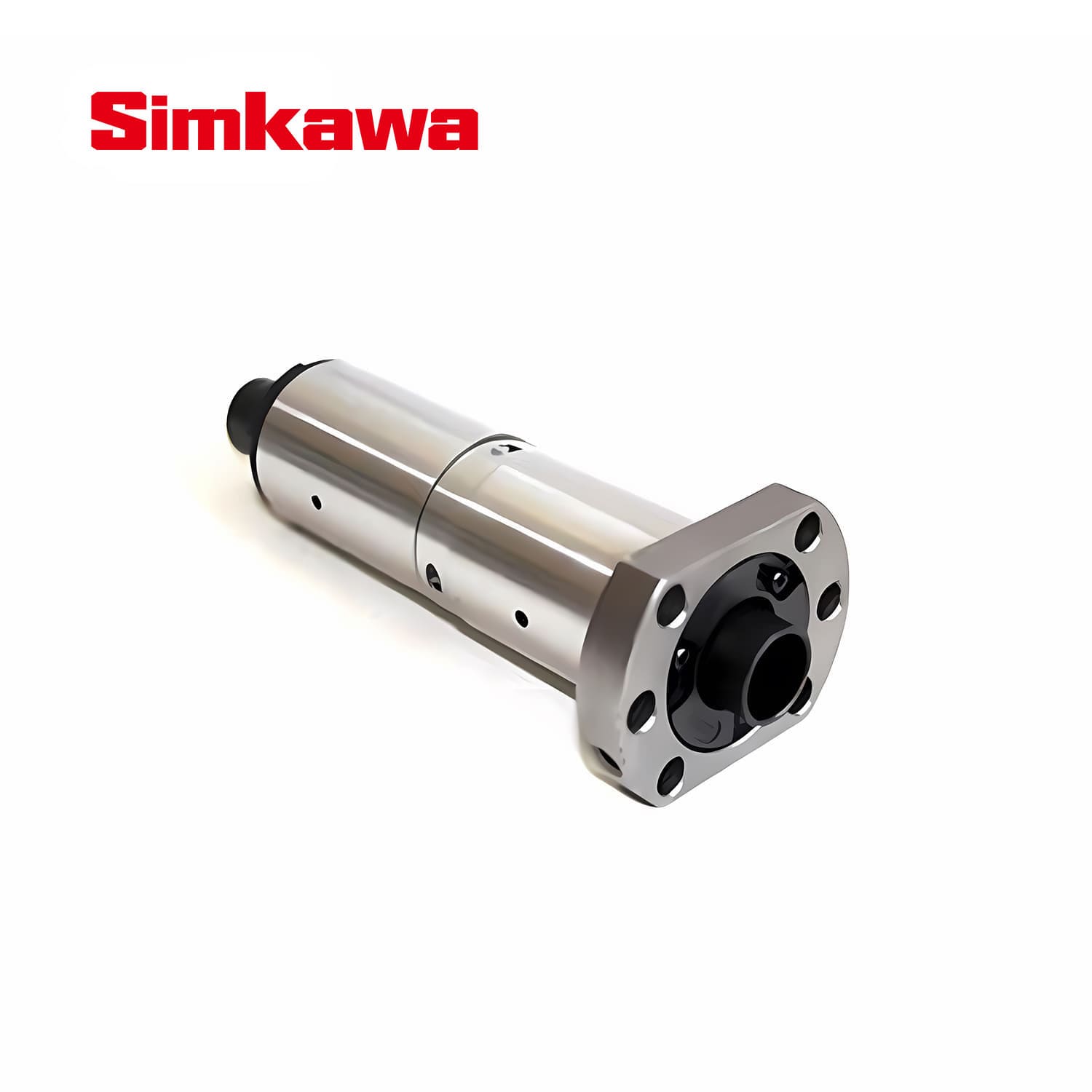

NSFU/NSFNUR Right Hand Screw Nut
High-precision NSFU/NSFNUR right hand screw nut for ball screws, offering low friction, high load capacity, and reliable linear motion for CNC and automation.
This series of nuts adopts a right-hand thread design, which means that linear motion is generated when rotating in a clockwise direction, which conforms to the standard transmission habits of most machines.
Choose options
Structural Features
The nut body is typically made of high-strength alloy steel or engineered plastic composites.
NSFU: Standard flange design, suitable for general installation requirements.
NSFNUR: Extended or special flange design, offering increased load capacity, suitable for high-load or long-stroke applications.
simkawa drive system

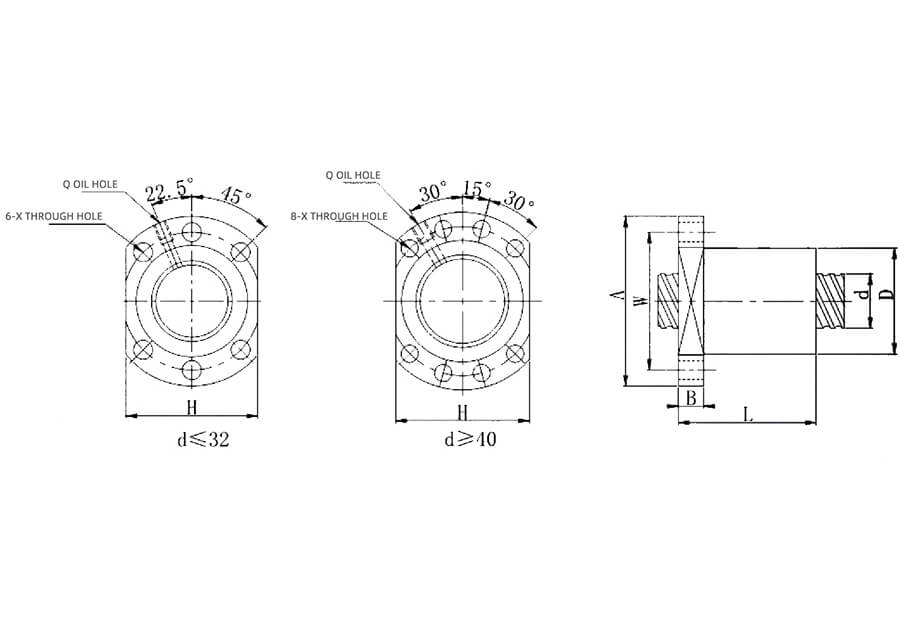

Structures of Right Hand Nut
Contact us by clicking the button below to get the latest quote for NSFU series screw nut system.
simkawa drive system

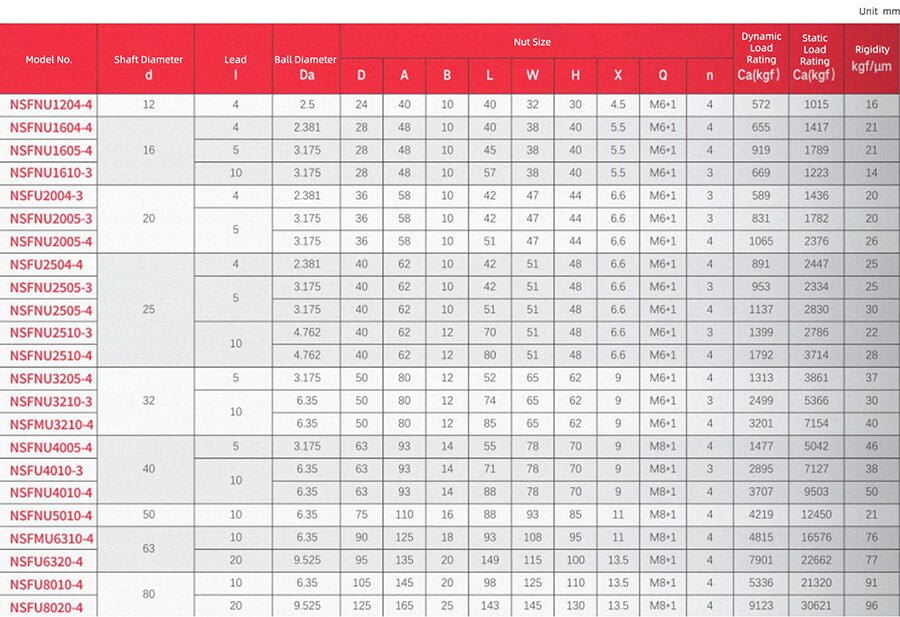

Specifications of Right Hand Nut
Contact us by clicking the button below to get the latest quote for NSFU series screw nut system.
Symbol Meaning
1. NSFU
N: Represents the standard series designation for the ball screw series.
S: Indicates the screw nut type.
F: Flange nut, for easy mounting.
U: Universal/Preloaded, eliminates backlash during operation, improving rigidity and accuracy.
2. NSFNUR
N: Ball Screw Series
S: Screw Nut
F: Flange, for easy mounting.
NU: Right-Hand Preloaded (NUR)
R: Extended/High Load flange or special design, suitable for applications with higher loads or long strokes.
Matching Screw model
1204# 1604# 1605# 2005G 2505G 2510# 3205G 3210# 4005G 4010# 5010# 6310# 6320 #8010 #8020#
Notes:
#: SCR heavy-duty screw,
*: SSR light-duty silent screw,
G: Both types available.
Ball Screw CNC Solutions
Optical Equipment
Packaging Industry
Electronics Manufacturing
Automation Equipment
Medical Equipment
Robotics
Internal Circulation
The circulation mode of the right hand thread nut can be divided into internal circulation, external circulation, end plug circulation, etc. according to the circulation mode of the steel ball. Each circulation mode has different advantages and disadvantages and can be selected according to needs.
| Circulation Method | Specifications | Features | |
| Single Nut | Double Nut | ||
| Internal circulation | NSFU | NDFU | The nut has a small outer circle (does not take up space), suitable for small lead |
| External Circulation | NSFV | NDFV | Economical series, suitable for large lead and heavy load |
