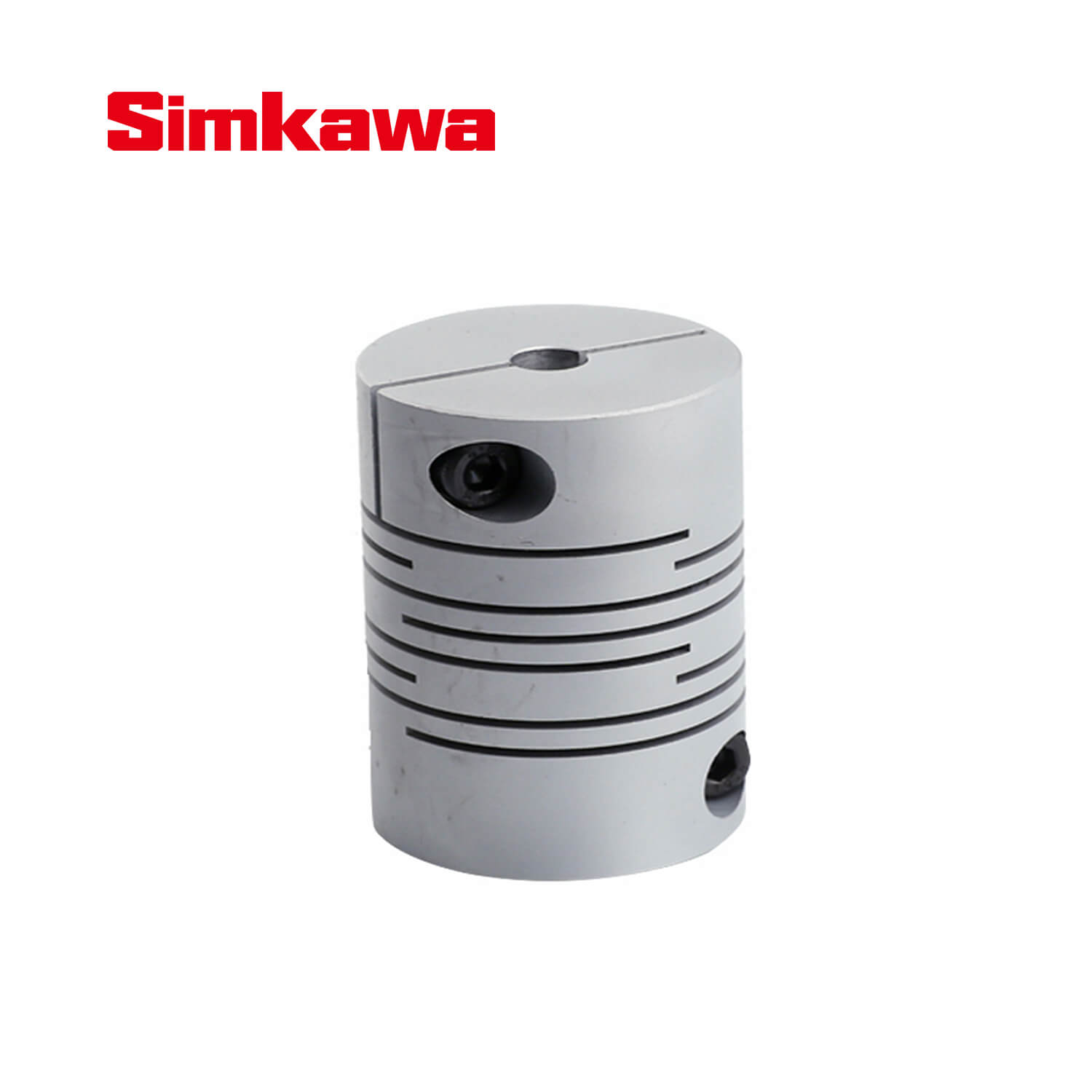

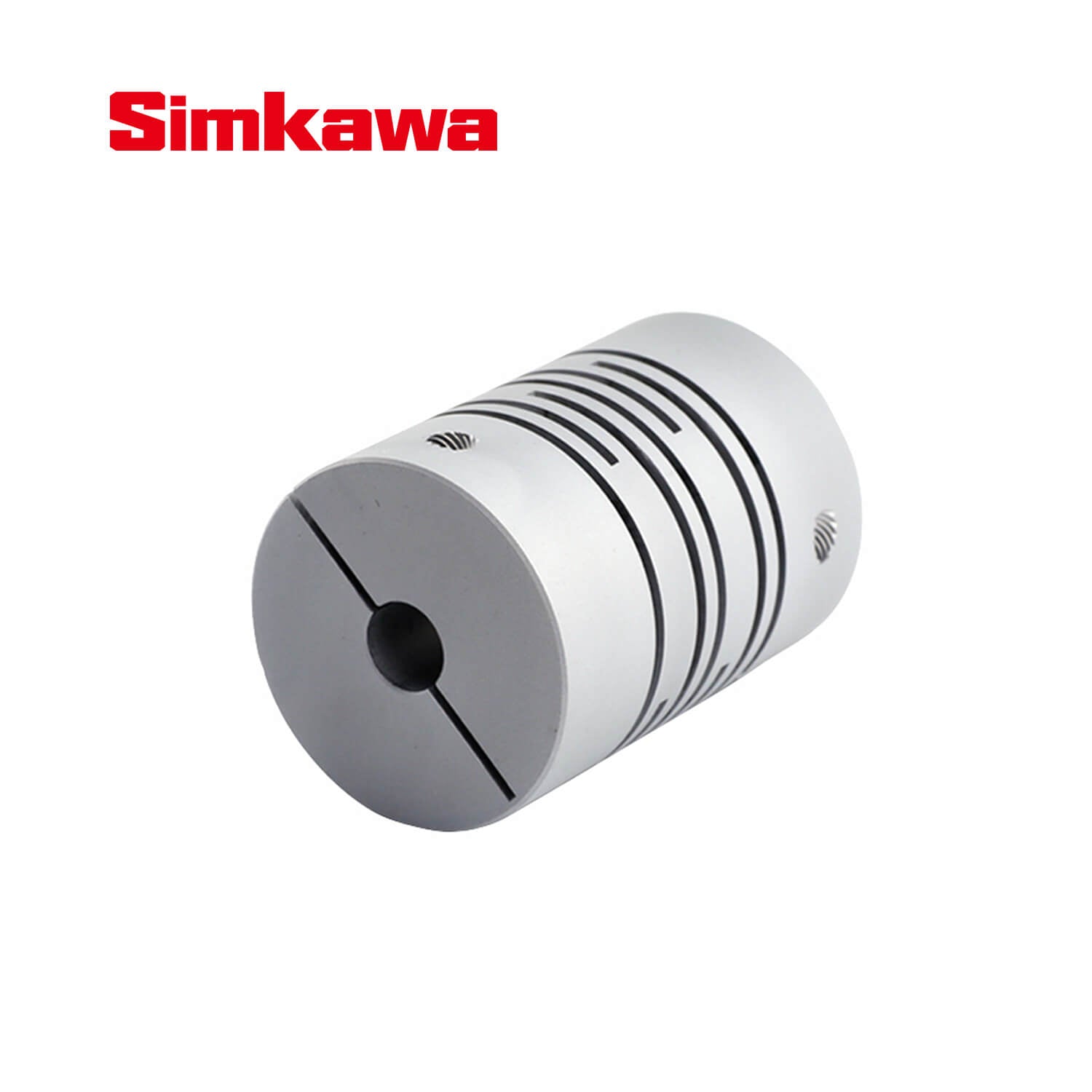

Beam Coupling
Compared with other couplings, beam couplings have higher oil and chemical resistance.
Discover high-performance beam couplings designed for precision motion control. Ideal for servo motors, stepper motors, and encoder systems.
Choose options

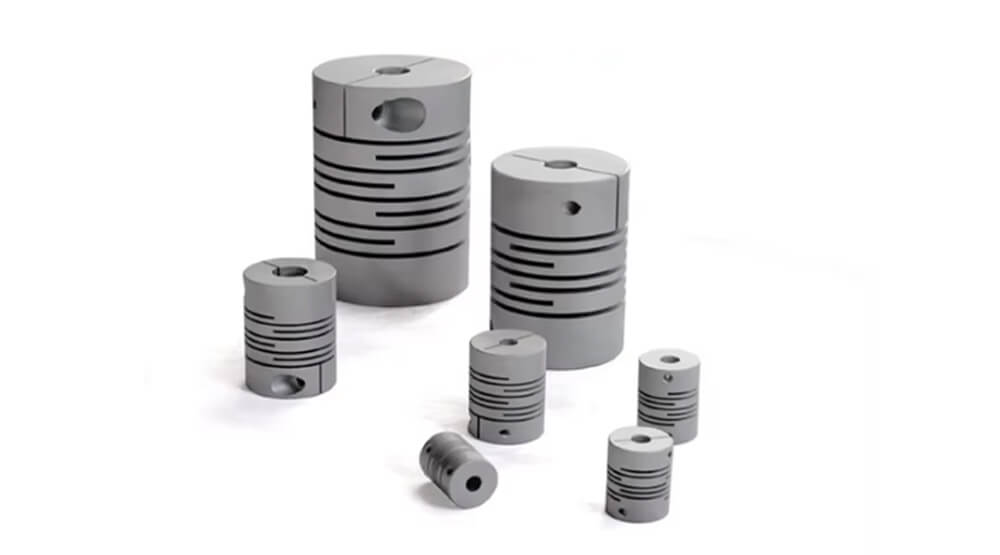

Beam Coupling Descriptions
- The entire beam coupling is made of 7075 aluminum alloy, which makes it particularly resistant to oil and chemicals.
- The hard aluminum alloy material ensures the low inertia, high sensitivity, long life and maintenance-free performance of the beam coupling. At the same time, the clamping beam coupling has the common characteristics of high torque rigidity and zero rotational clearance of the coupling.
- The beam coupling is a coupling composed of an integrated structure. It can perform excellent performance under low speed, high speed and high torque conditions. It is a coupling with extremely high cost performance.
Note:
When choosing a coupling, the first thing to consider is that the rated torque of the coupling needs to be greater than the rated torque of the motor used in the same equipment.
simkawa shaft coupling
Customization Options
Simkawa shaft couplings offer OEM, ODM, and OBM customization support, allowing users to tailor the product to their specific requirements.
- Spline Hole
Rectangular spline and involute spline holes are optional.
Rectangular spline hole processing follows GB/T1144-2001, and involute spline hole processing follows DIN5480 5482 standard
- Taper Hole
Taper hole processing is divided into 1:5 taper hole and 1:8 taper hole.
- Keyway
Keyway can be processed for hole diameters of 5-95
Product Parameter
| Model | Aperture | D | L | Torque (N.m) | Allowable speed (min-1) | Tightening torque | ||||
| d1 | d2 | |||||||||
| Min | Max | Min | Max | Min | Max | |||||
| JT16 | 5 | 8 | 5 | 8 | 16 | 23 | 0.5 | 1.0 | 24000 | 0.7 |
| JT16C | 5 | 8 | 5 | 8 | 1.0 | |||||
| JT20 | 5 | 10 | 5 | 10 | 20 | 26 | 1.0 | 2.0 | 20000 | 0.7 |
| JT20C | 5 | 10 | 5 | 10 | 1.0 | |||||
| JT25 | 6 | 12 | 6 | 12 | 25 | 31 | 2.0 | 4.0 | 15000 | 1.7 |
| JT25C | 6 | 12 | 6 | 12 | 1.5 | |||||
| JT32 | 8 | 16 | 8 | 16 | 32 | 41 | 4.0 | 8.0 | 12000 | 1.7 |
| JT32C | 8 | 16 | 8 | 16 | 2.5 | |||||
Functions of Beam Couplings
- Zero rotational backlash
- One of a kind design with no torque loss
- Radial, axial and angular misalignment compensation performance
- Excellent torque stiffness and sensitivity
Product Packaging
1. PE bag independent packaging.
2. Support neutral packaging.
3. Logo customization.
