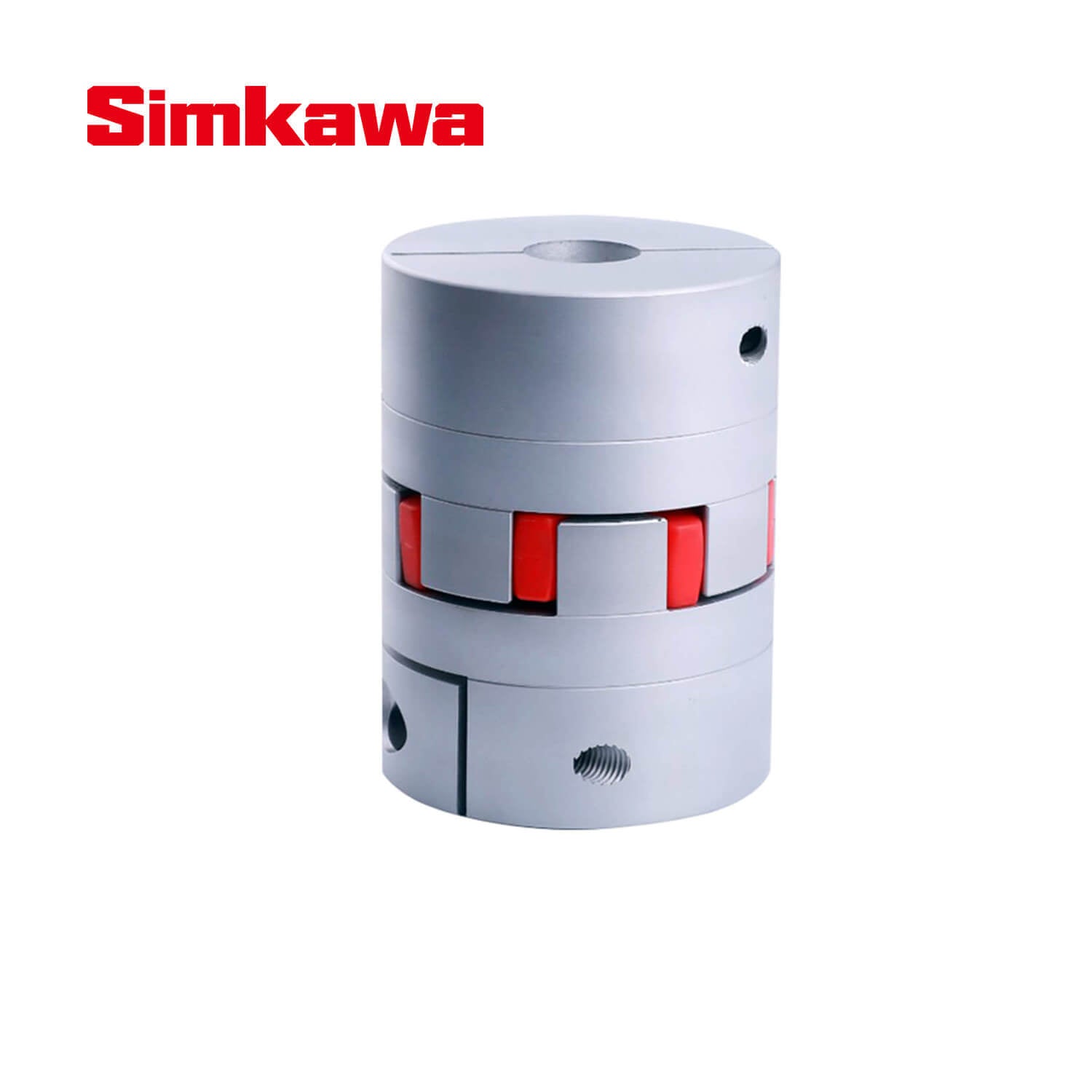

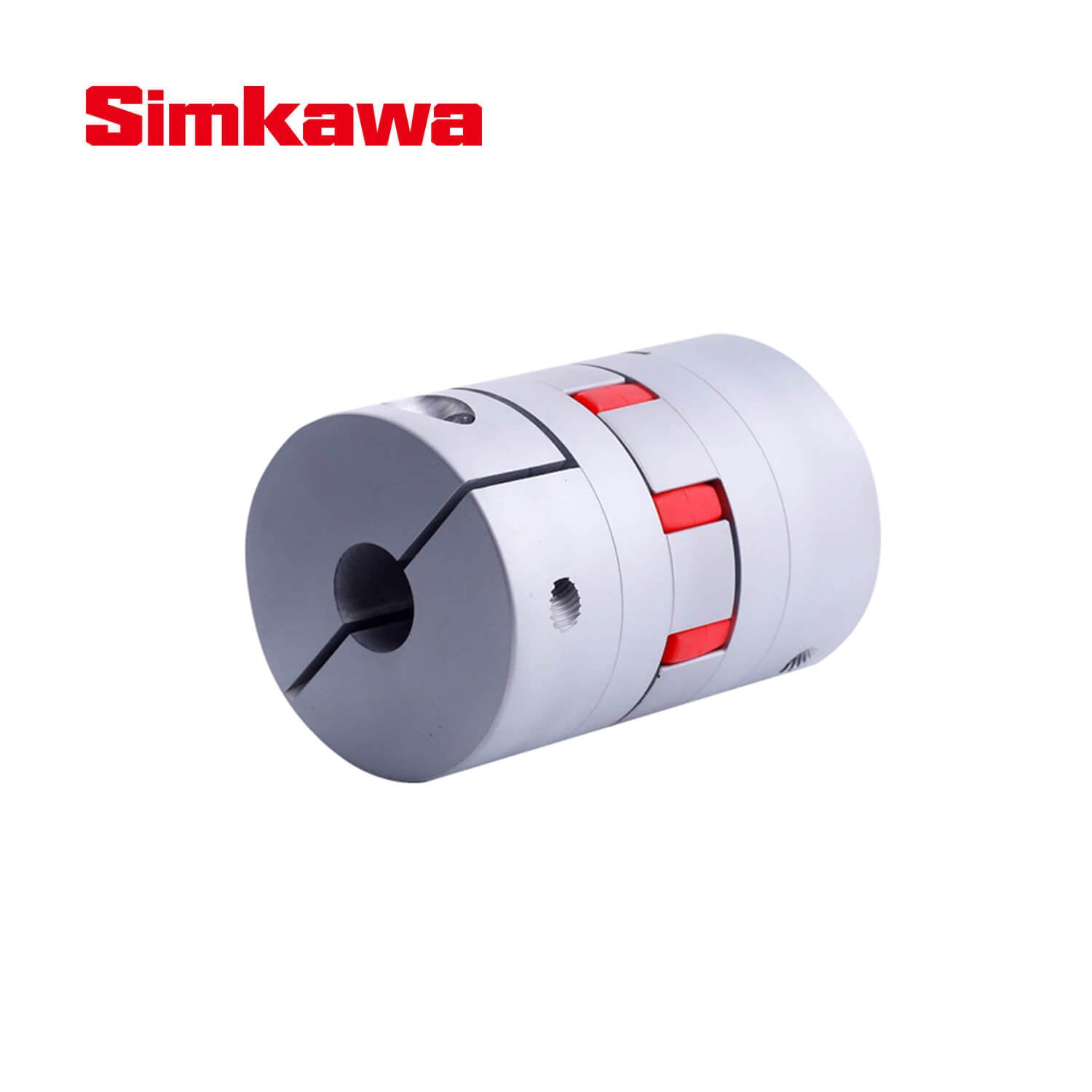

Jaw Coupling
Explore high-quality jaw couplings with elastomer spiders for damping vibrations and absorbing shock loads. Perfect for motors, pumps, and general power transmission systems.
Choose options
Jaw Coupling Descriptions

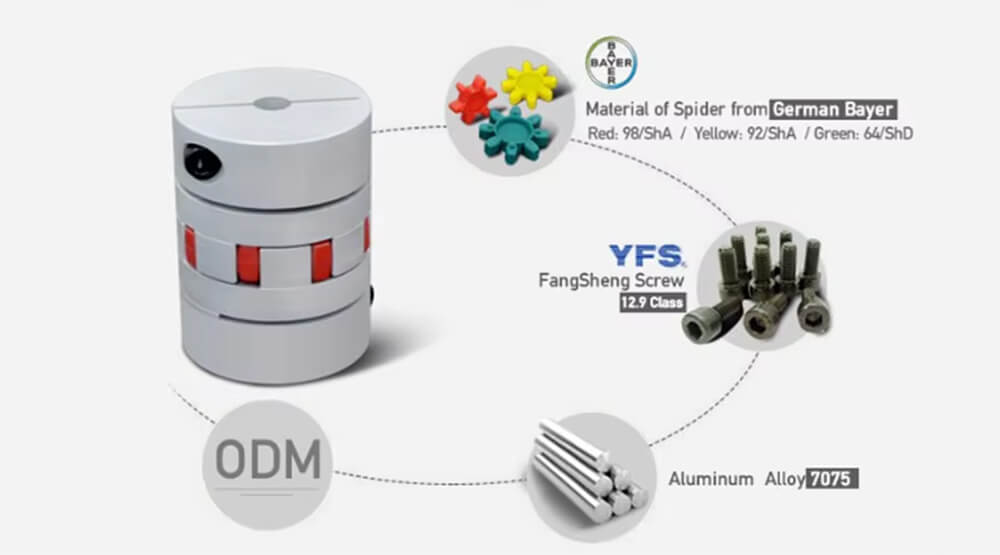

The jaw coupling is mainly composed of aluminum alloy and polyurethane elastomer, which can buffer the vibration during the transmission process, absorb the impact caused by uneven motor speed, and effectively correct the axial, radial and angular installation deviations.
Our company can provide a variety of models such as clamping claw couplings, clamping claw couplings, and ring-feed claw couplings, and can process keyways and special apertures according to customer requirements.
simkawa shaft coupling
Customization Options
Simkawa can provide a variety of models such as clamping claw couplings, clamping claw couplings, and ring-feed claw couplings, and can process keyways and special apertures according to customer requirements.
simkawa shaft coupling

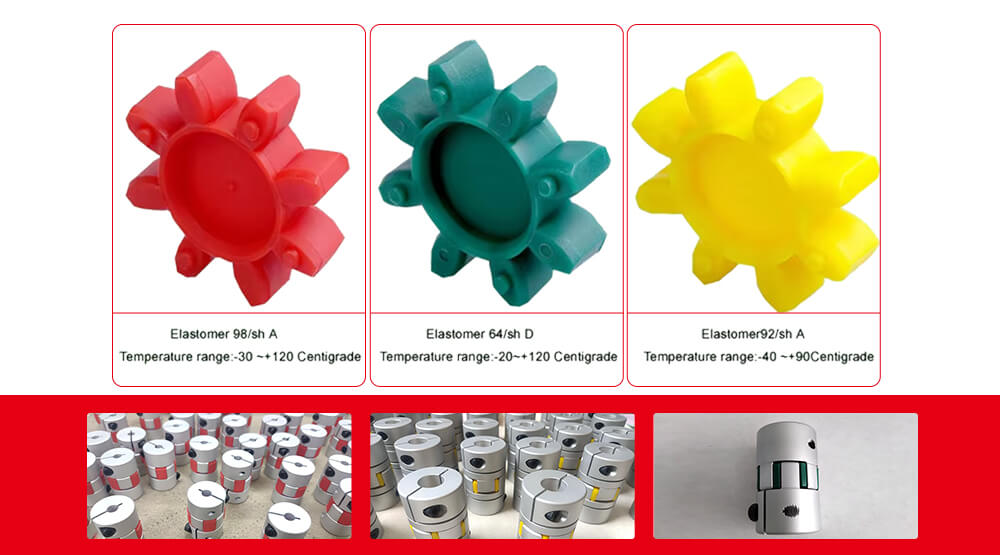

Elastomer
- Elastomer 98/sh A
Temperature range:-30 ~+120 Centigrade
- Elastomer 64/sh D
Temperature range:-20~+120 Centigrade
- Elastomer92/sh A
Temperature range:-40~+90Centigrade
Product Parameter
| Model | Aperture | D | L | Torque (N.m) | Allowable speed (min-1) | Tightening torque (N.m)OD | ||||
| d1 | d2 | |||||||||
| Min | Max | Min | Max | Min | Max | |||||
| JM14 | 3 | 7 | 3 | 7 | 14 | 22 | 1.2 | 2.4 | 28000 | 6.7 |
| JM14C | 3 | 6 | 3 | 6 | 14 | 22 | 1.2 | 2.4 | 25000 | 6.7 |
| JM16 | 3 | 7 | 3 | 7 | 16 | 22 | 1.5 | 3.0 | 27000 | 9.0 |
| JM16C | 3 | 7 | 3 | 7 | 16 | 22 | 1.5 | 3.0 | 24700 | 9.0 |
| JM20 | 4 | 10 | 4 | 10 | 20 | 30 | 3.0 | 6.0 | 26000 | 19.8 |
| JM20C | 4 | 10 | 4 | 10 | 20 | 30 | 3.0 | 6.0 | 25500 | 19.8 |
| JM25 | 4 | 12 | 4 | 12 | 25 | 34 | 6.0 | 12.0 | 19000 | 37.0 |
Jaw Flexible Coupling Solutions

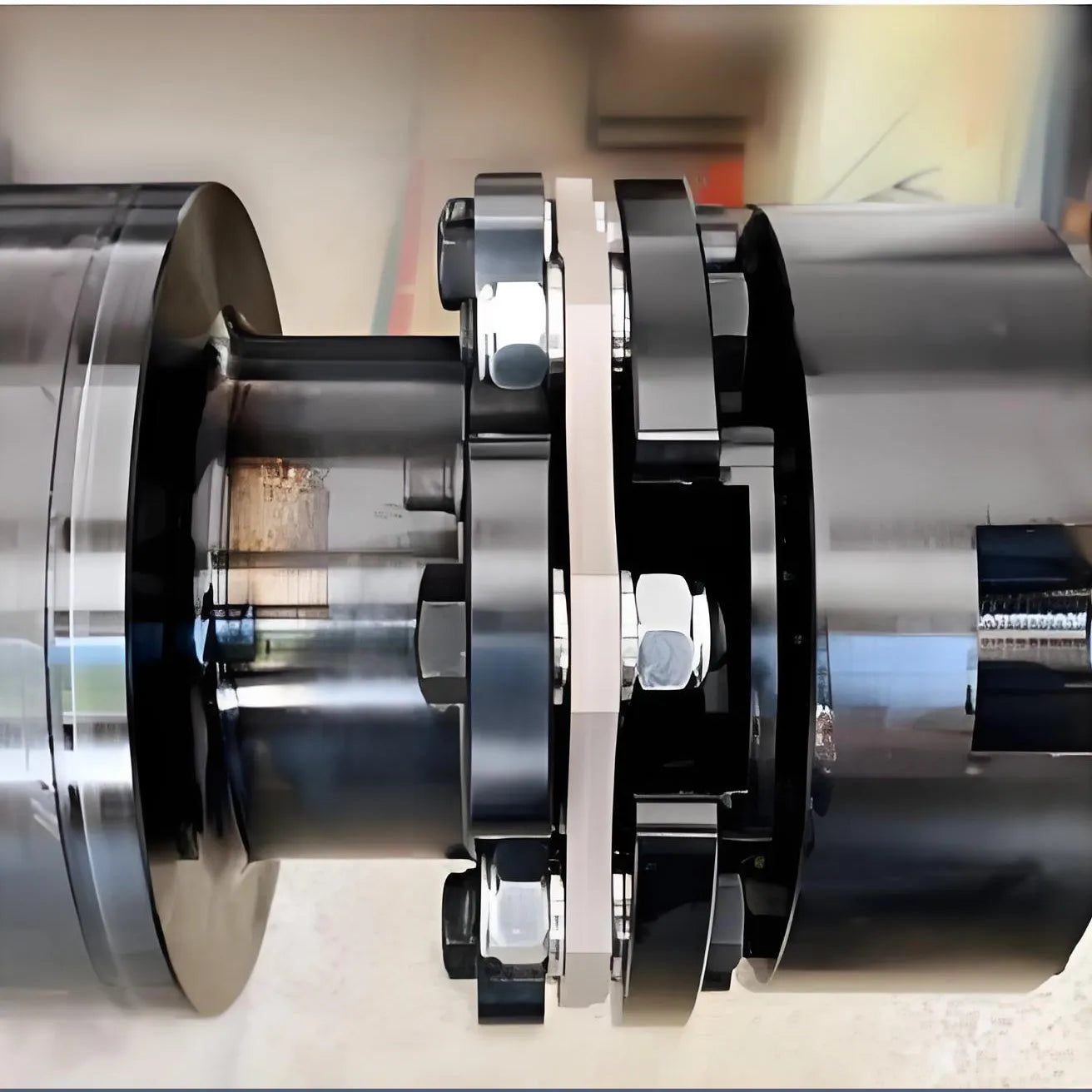

Machine Tools

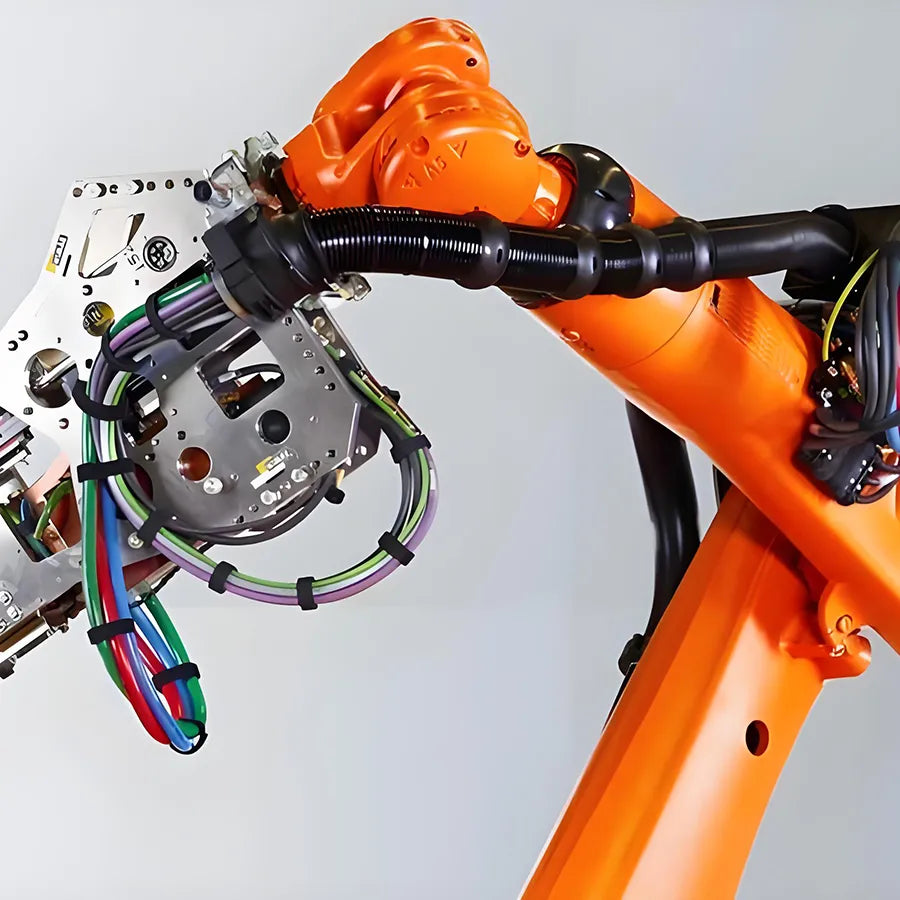

Industrial Robots

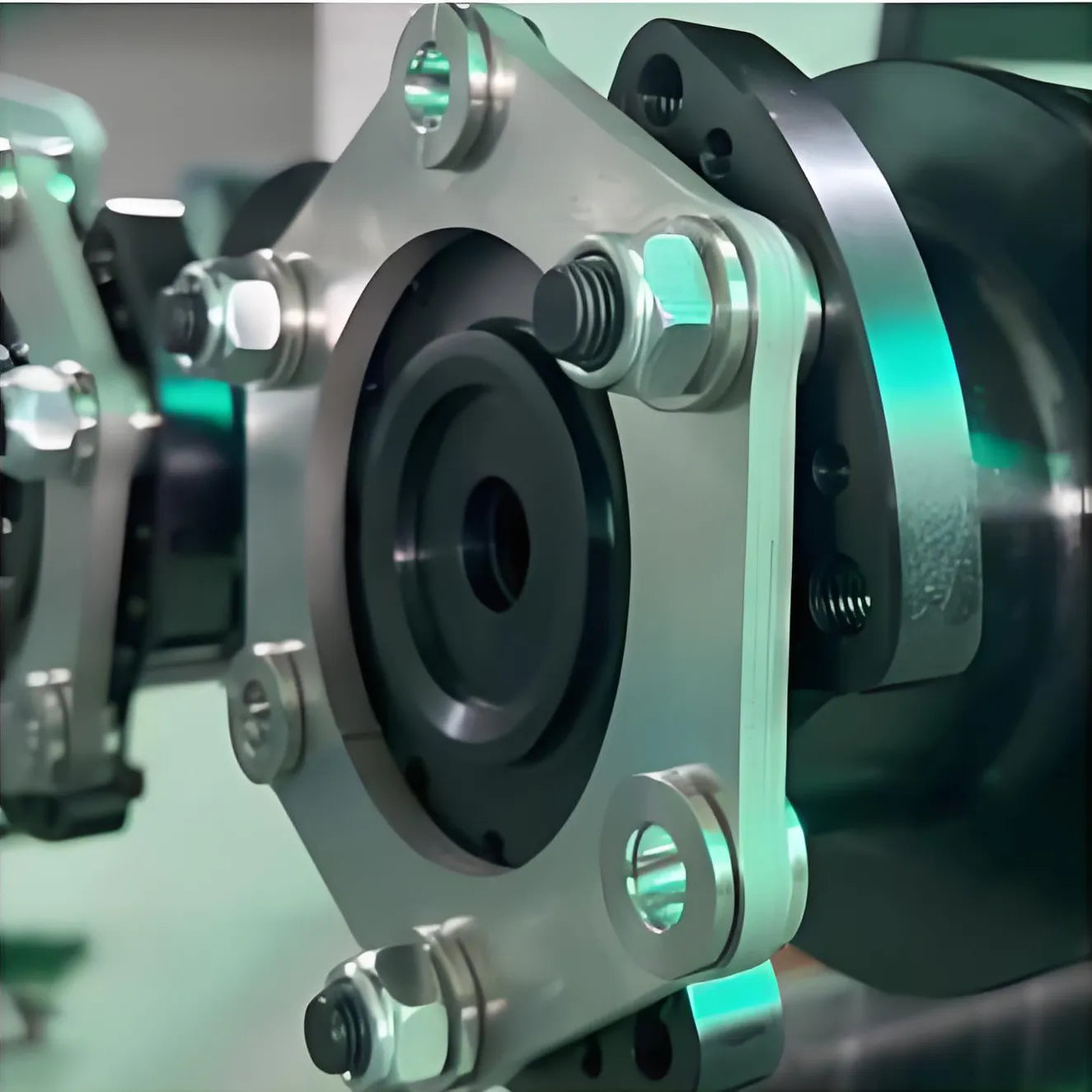

Automation Equipment

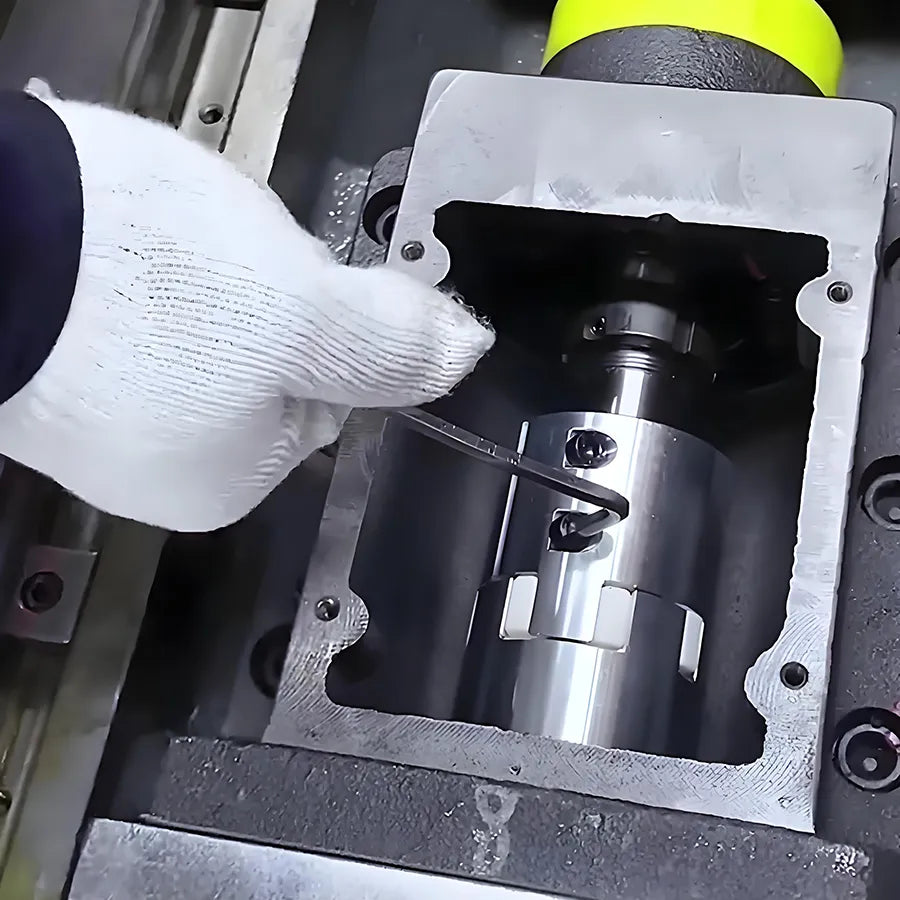

CNC Milling Machines
Product Packaging
1. PE bag independent packaging.
2. Support neutral packaging.
3. Logo customization.
