Iron Core Linear Motor DPG Series
Explore our full range of high precision linear motors ideal for automation, CNC machine tools and industrial applications. Fast response, zero backlash and maintenance free.
Choose options
Iron Core Linear Motor DPG Features
- High speed up to 5m/s
- High thrust density
- Low speed fluctuation
- Peak thrust: 187.7N~2440.8N
- Continuous thrust: 25.3N~691.6N
- Optional Hall sensor available
simkawa linear motor

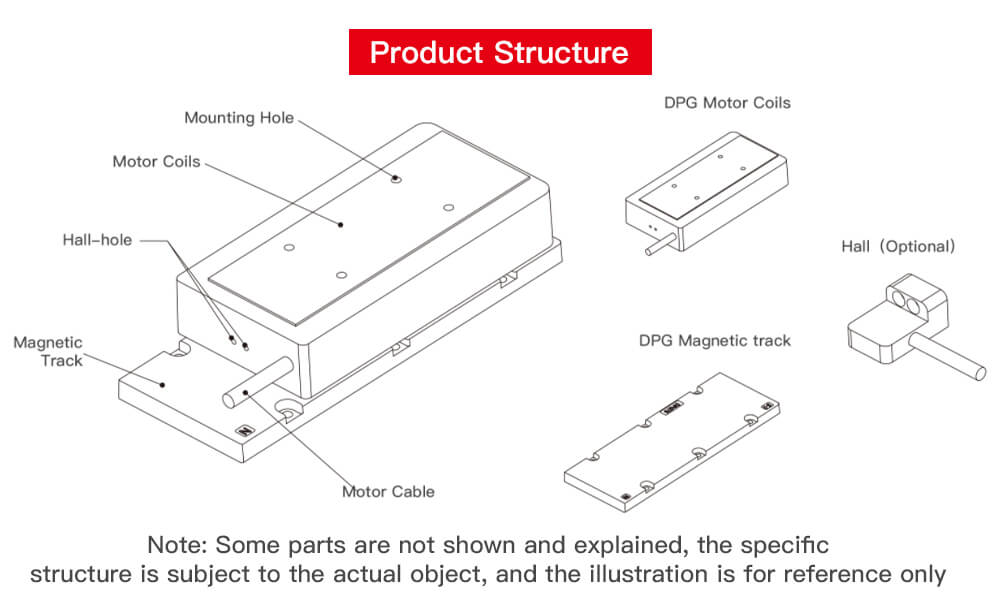

Structures of DPG Linear Motor
DPG linear motor runs smoothly without jamming, provides precise magnetic attraction, and is often used in high-precision, high-dynamic response automation systems.

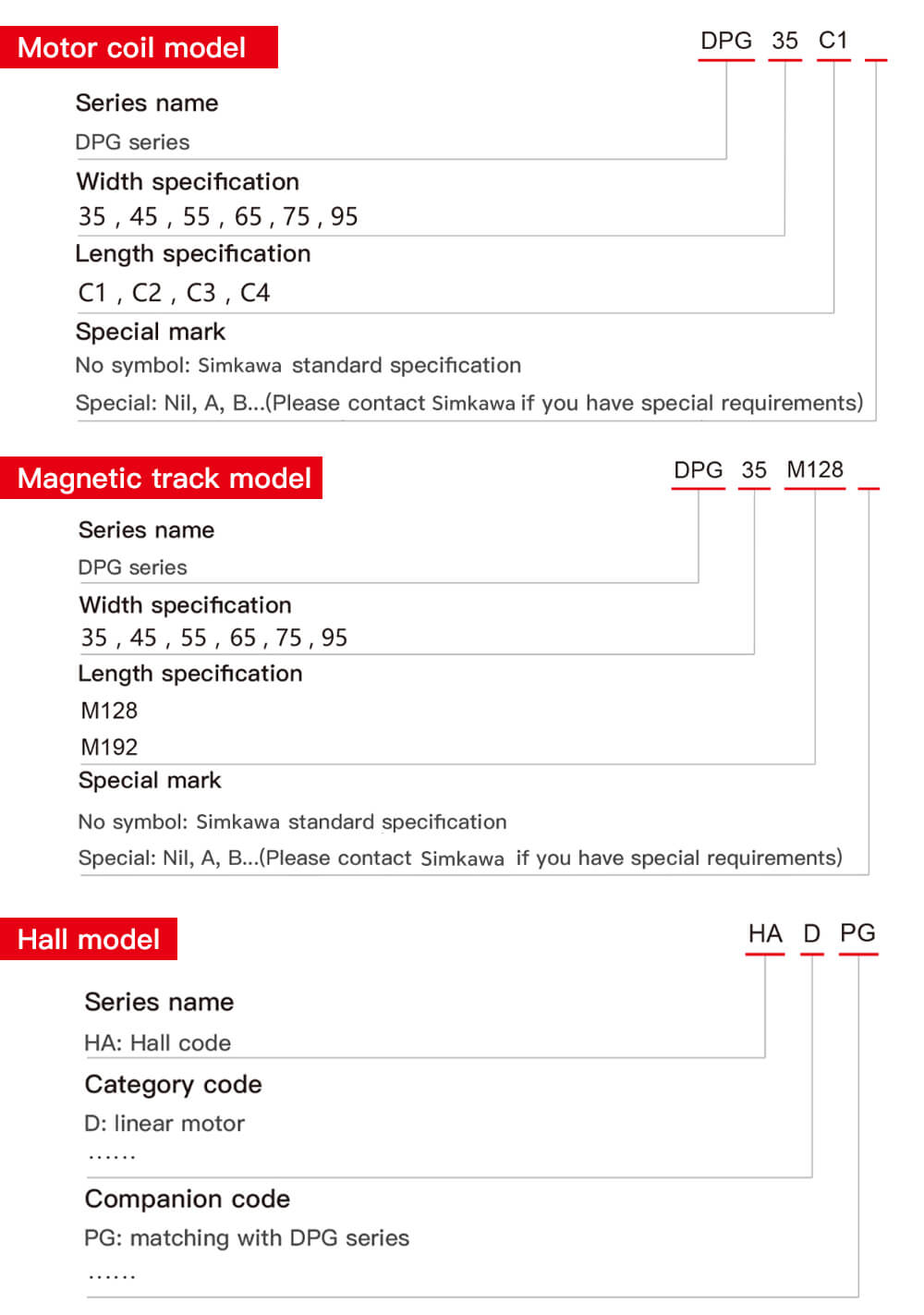

Specifications
DPG Series
The following are common specifications and typical parameter ranges of DPG linear motors.
Testing

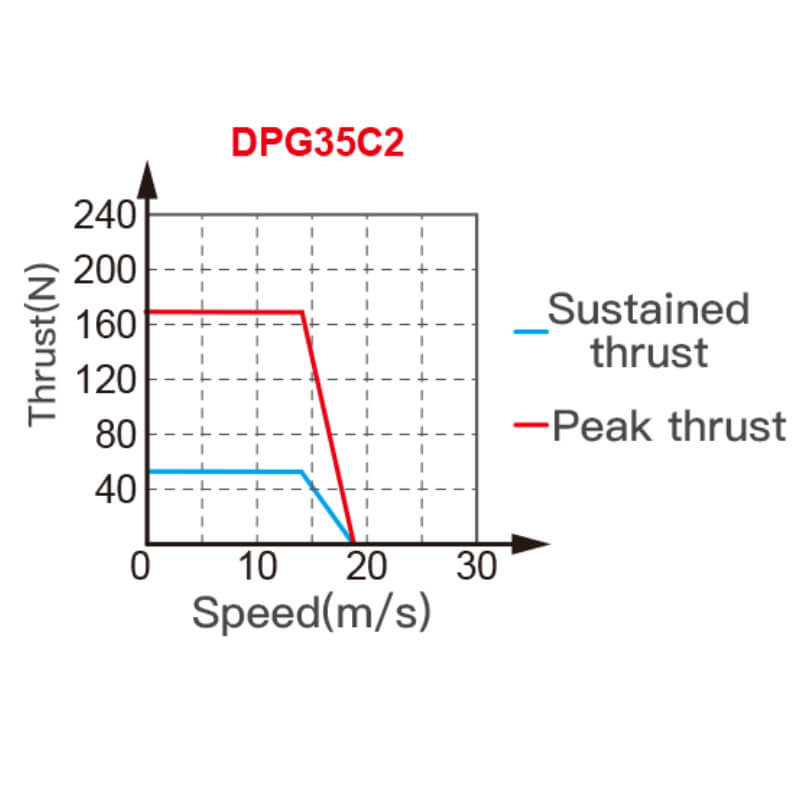

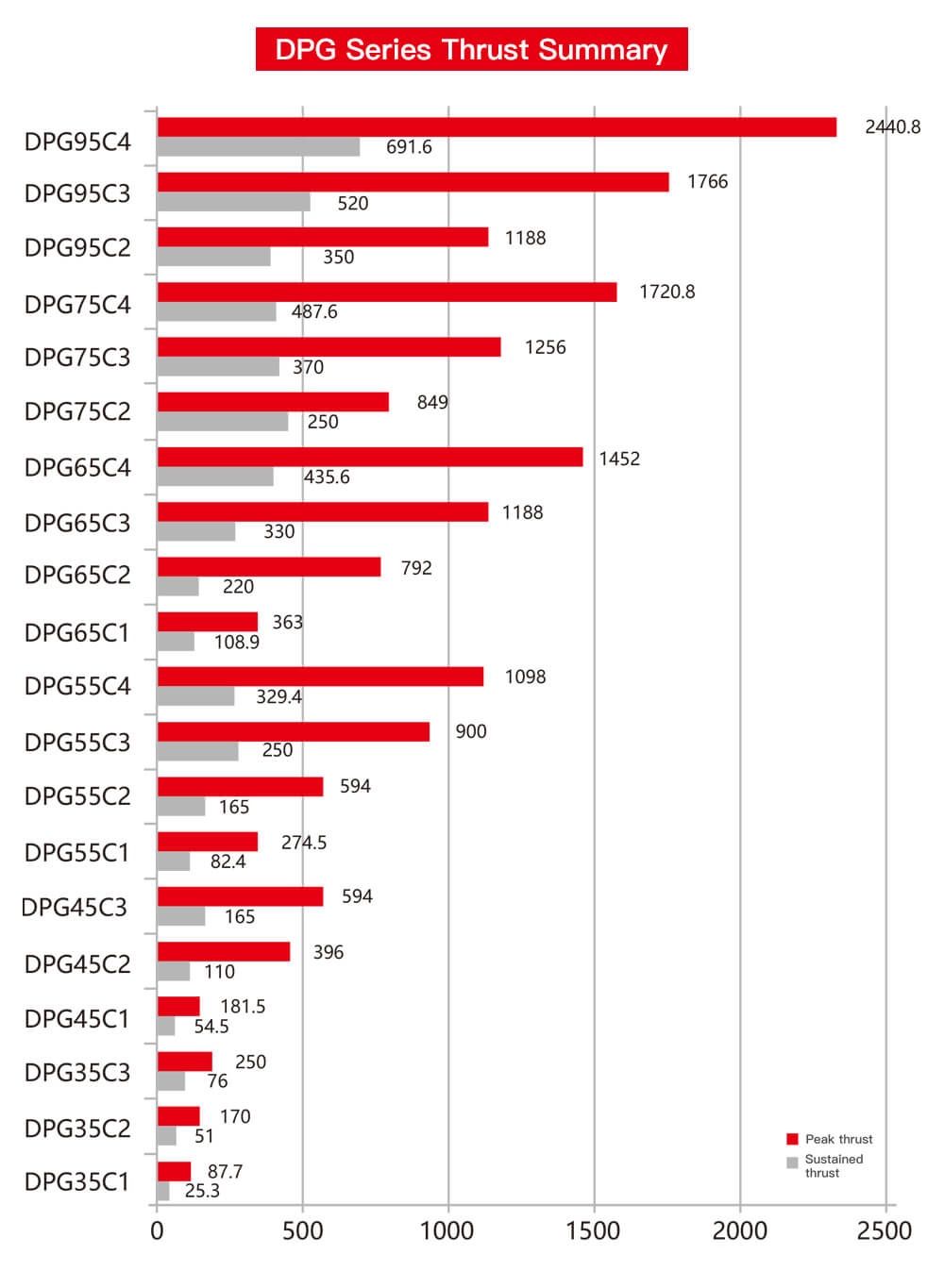

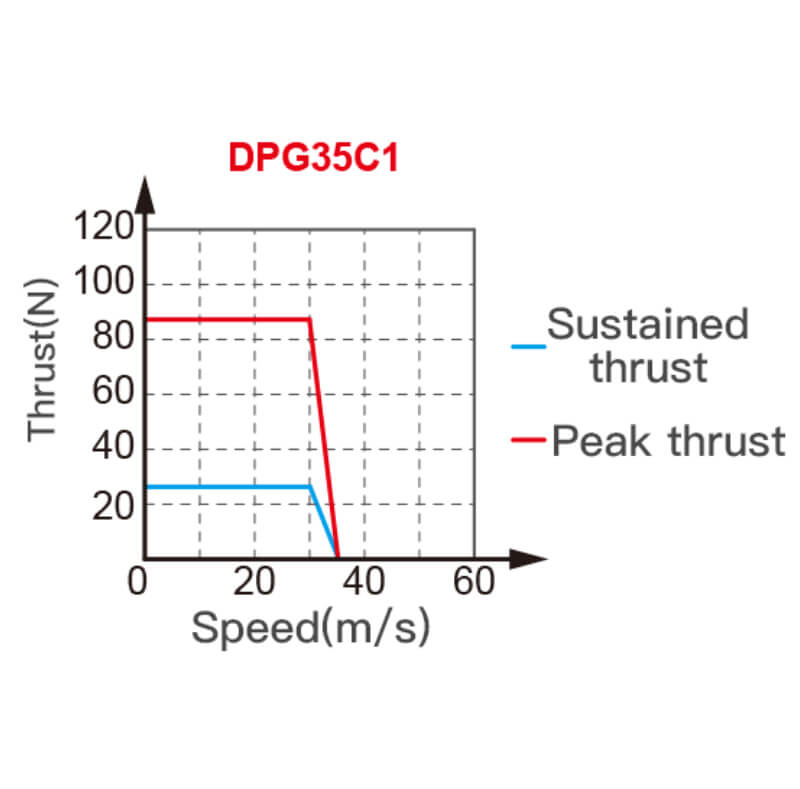

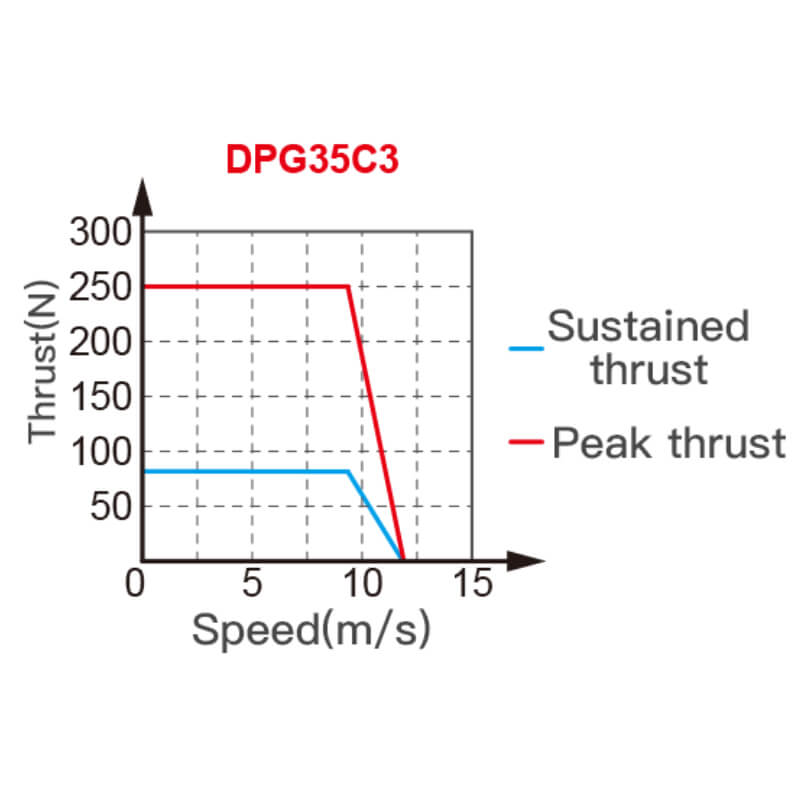

DPG Linear Motor Thrust Test
The thrust test of a linear motor is a key step in evaluating the performance of the motor. It is mainly used to verify whether its actual output thrust meets the design or application requirements. The left side is a complete thrust test of a linear motor.
Size

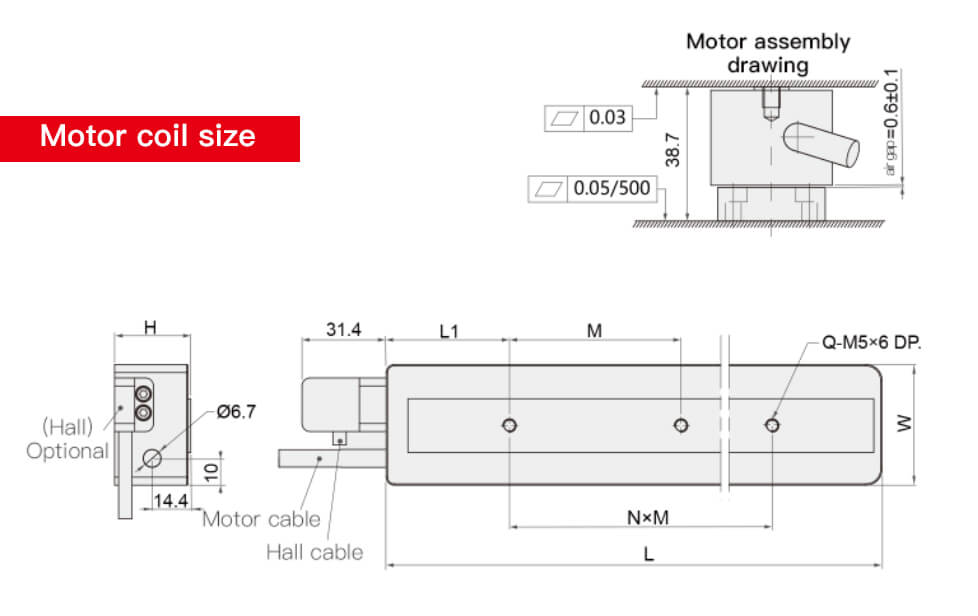

Motor Coil
The coil is the moving part of the linear motor and is usually mounted on a motion platform.
Size

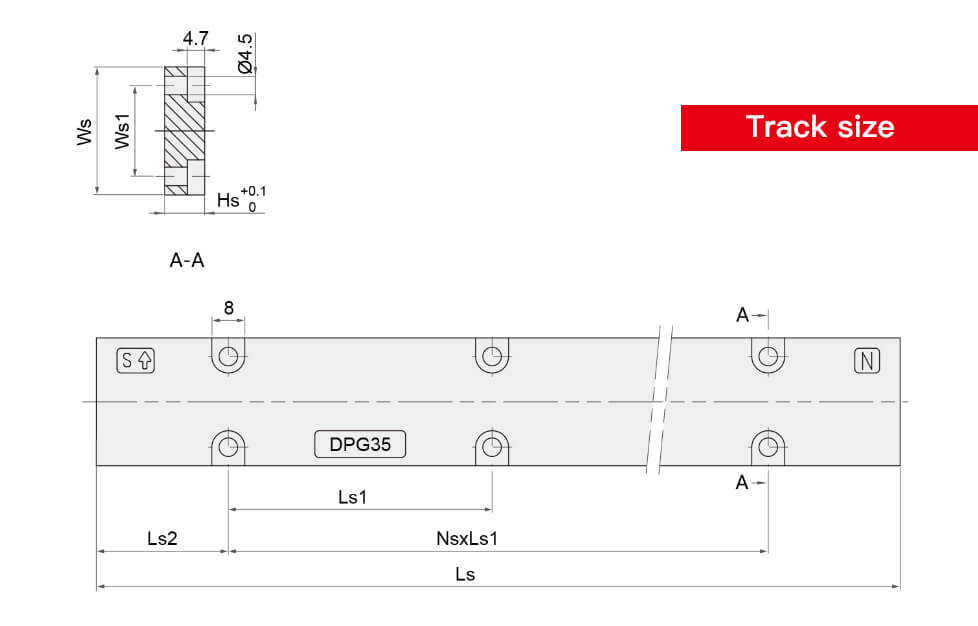

Track
The track is the fixed part, usually composed of a high-strength aluminum base + permanent magnet, and is installed on the bottom or both sides of the linear stage.
