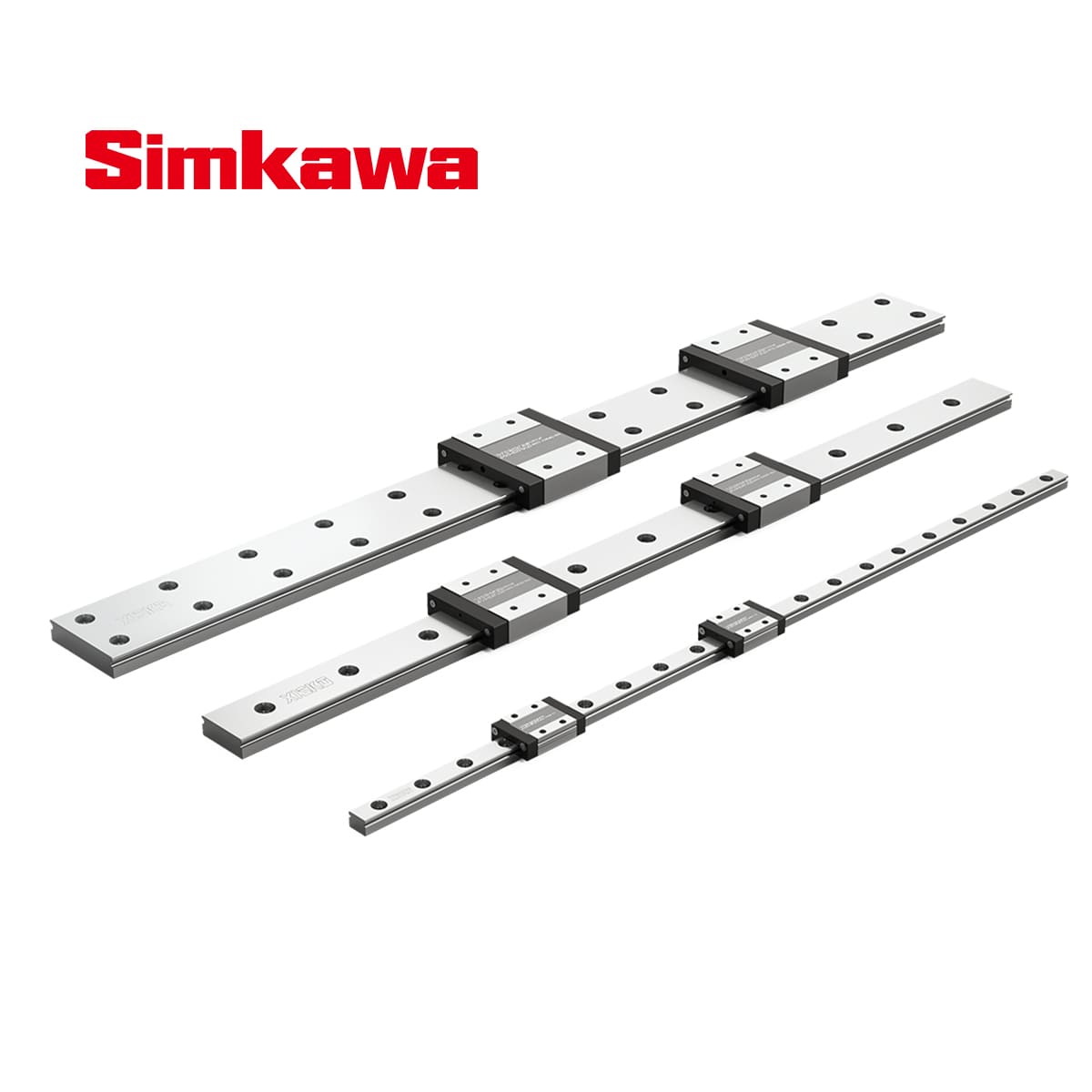

LGW Wide Miniature Linear Rails
LGW wide miniature linear rails are designed to be wider than miniature guides, which greatly improves the torque load capacity and can be used on a single axis.
Choose options
LGW Wide Miniature Linear Rails Features
1. Widened guide rail design greatly improves torque load capacity and can be used on a single axis.
2. Gothic four-point contact design can withstand loads in all directions and has high rigidity.
3. The slider is equipped with a micro-retaining steel wire, and the steel ball will not fall off when the slider is disassembled.
4. The slider and all metal accessories are made of stainless steel and are corrosion-resistant.
simkawa linear guide
Structures of LGW Wide Miniature Guide Rails

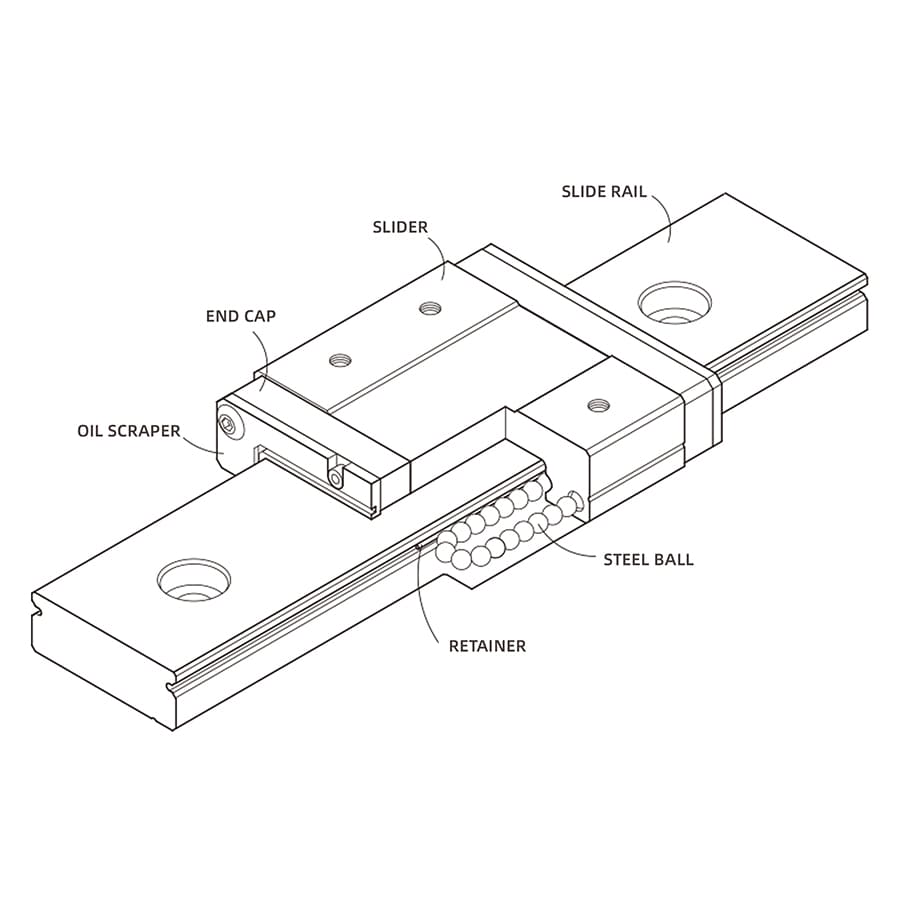

Rolling circulation system: slider, slide rail, end cover, steel ball, retainer.
Lubrication system: LGW15 end cover is equipped with a grease nipple for customers to fill oil, while LGW7, 9, 12 have a reserved oil filling hole on the end cover side, and a syringe can be used to inject oil or grease into the slider for lubrication.
Dustproof system: Oil scraper, bolt cover.
Specifications
Miniature Linear Rails Set

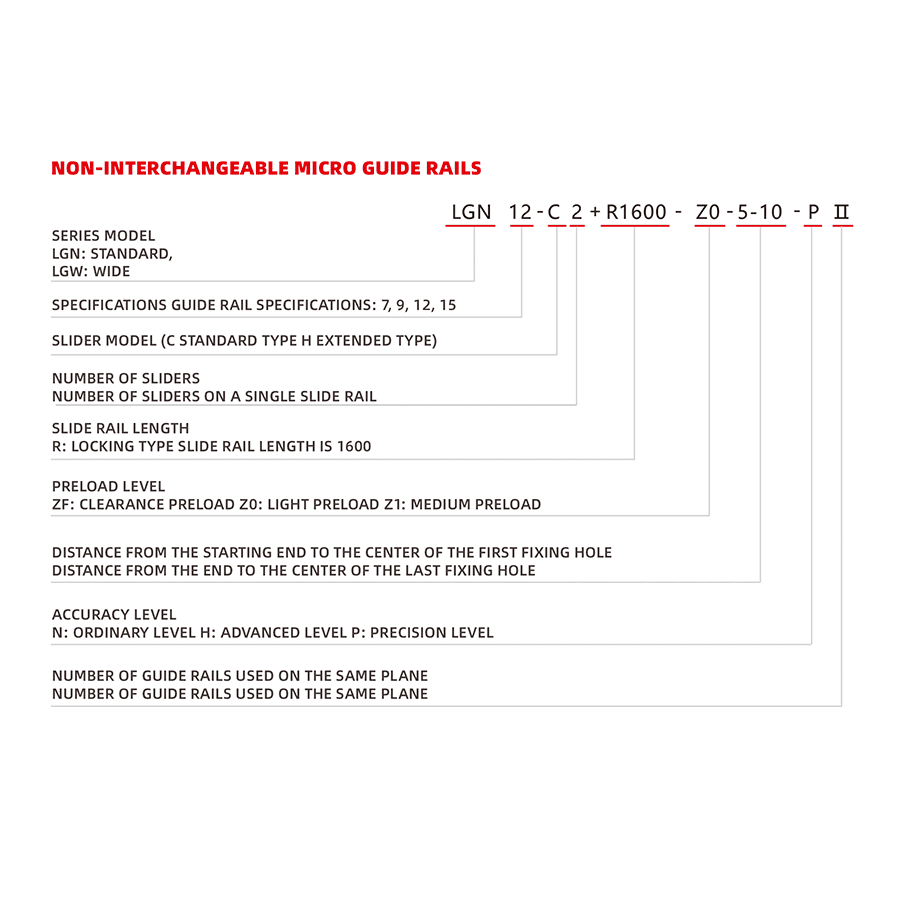

Linear guide assemblies are usually composed of guide rails and sliders. Common specifications and models are as follows.
Specifications

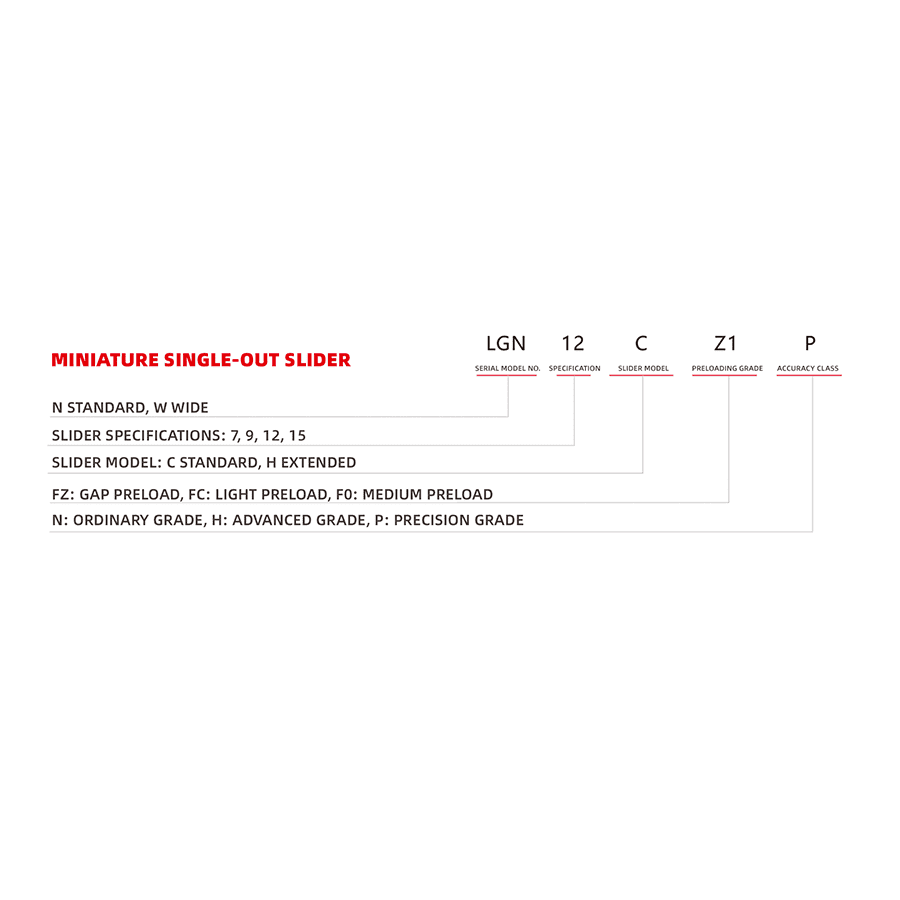

Slider Model
The slider is the part used in conjunction with the guide rail, common specifications and models are as follows.
Preload Level
LGW series provide three types of preload: normal gap, no preload and light preload.
1. Normal gap (FZ)
- Preload level: Precision gap (4~10 μm)
- Applicable accuracy level: N (normal level)
2. No preload (FC)
- Preload level: 0 (no preload)
- Applicable accuracy level: N-P (normal to medium accuracy)
3. Light preload (F0)
- Preload level: 0.02×rated dynamic load C
- Applicable accuracy level: N-P
Installation Notes

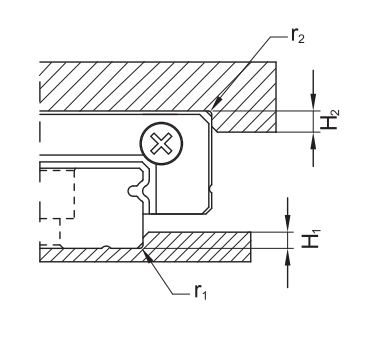

When installing the LGW miniature guide rails, you must pay attention to whether the condition of the shoulder of the mounting surface is appropriate. For example, if the chamfer is too large, the protrusion will easily cause poor precision of the linear guide rail, and if the height is too high, it will interfere with the slider.
| Specifications | Maximum chamfer radius of shoulder | Rail shoulder height | Rail shoulder height | |
| r1(mm) | r2(mm) | H1(mm) | H2(mm) | |
| LGW7 | 0.2 | 0.2 | 1.7 | 3 |
| LGW9 | 0.3 | 0.3 | 2.5 | 3 |
| LGW12 | 0.4 | 0.4 | 3 | 4 |
| LGW15 | 0.4 | 0.8 | 3 | 5 |
