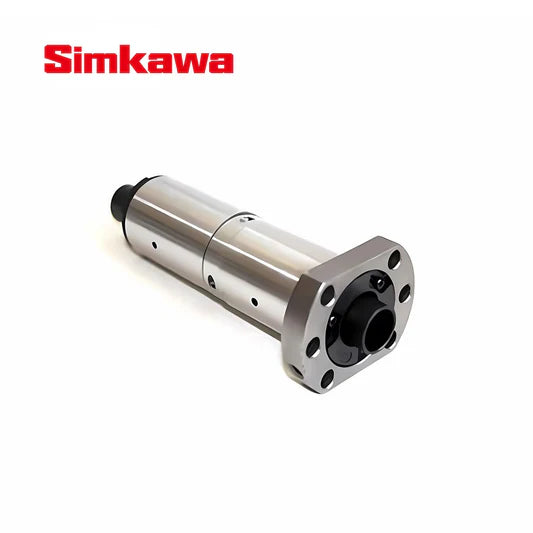

FSC Miniature Ball Screw
FSC miniature ball screws provide precise, quiet, and efficient linear motion for tight-space designs in advanced industrial applications
Choose options
FSC Miniature Ball Screw Features
- The FSC series adopts an ultra-miniaturized design and is suitable for precision equipment with limited space.
- High-precision micro-displacement control, combined with a preload structure, achieves extremely low axial clearance and high repeatability.
- Low friction, smooth operation, improved transmission efficiency, and more stable and efficient equipment operation.
- The raceway and circulation system are optimized, with low noise and vibration during operation.
simkawa drive system

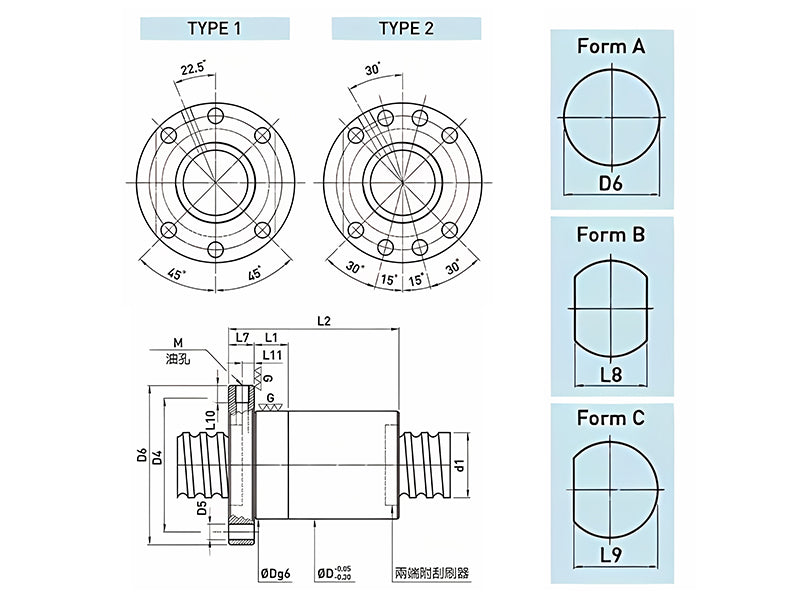

Specifications of FSC Ball Screw
Contact us by clicking the button below to get the latest quote for FSC series ball screw drive system.
Ball Screw Installation
In order to improve the axial rigidity, the screw support usually uses a bearing combination with thrust bearing as the main component. Only when the axial load is very small, the radial thrust bearing is used.

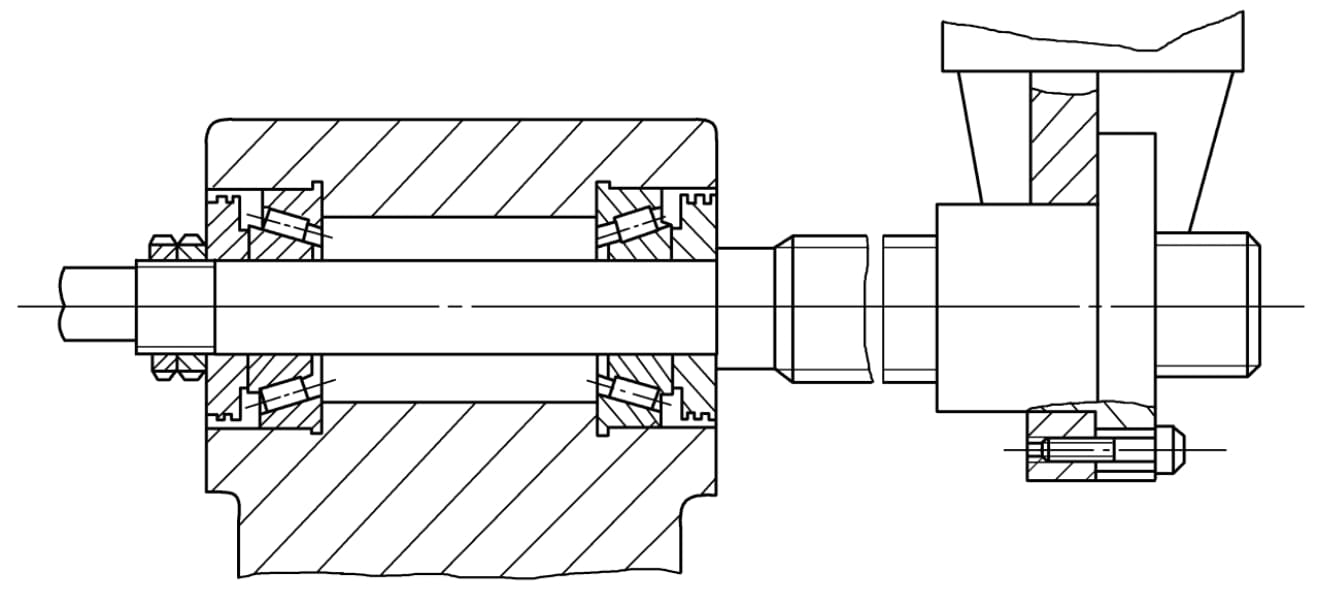

Double Push-Free

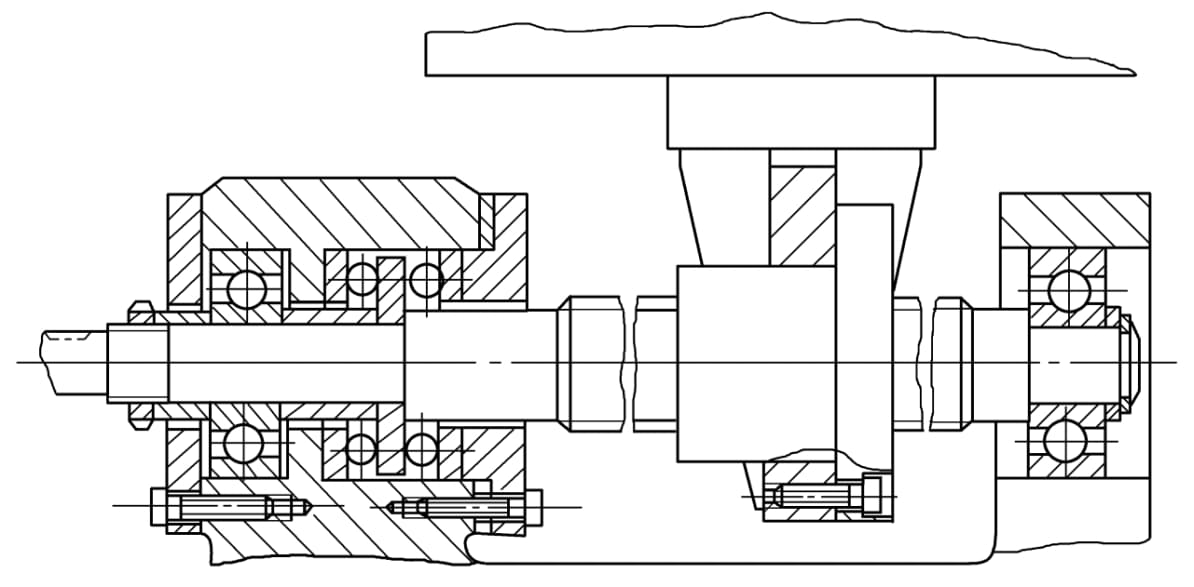

Double Push-Simple Support

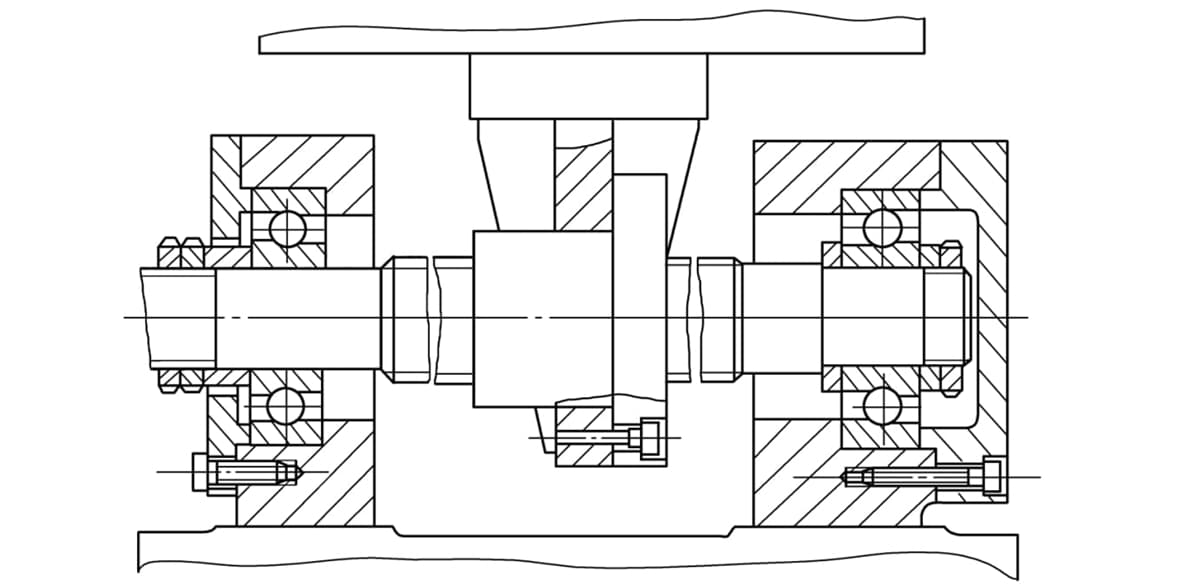

Single Push-Single Push

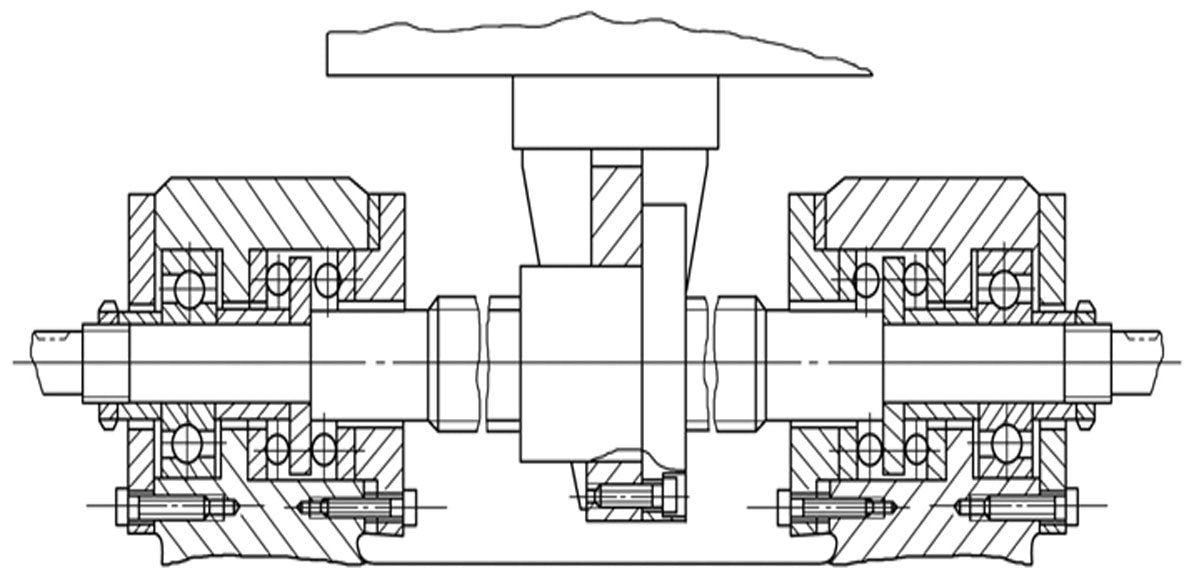

Double Push-Double Push
Comparison of Four Support Methods
| Support method | Stiffness | Carrying capacity | Instability |
| Double push-free | Low | Low | have |
| Double push-simple support | Not high | Not high | have |
| Single push-single push | Higher | Higher | None |
| Double push-double push | Highest | Highest | None |

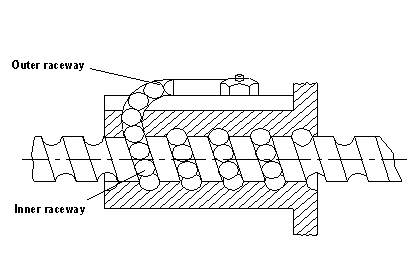

FSC Miniature Ball Screw Working Principle
Arc-shaped spiral grooves are ground on the lead screw and the nut. The two arc-shaped spiral grooves are matched to form a spiral raceway, and balls are installed in the raceway.
