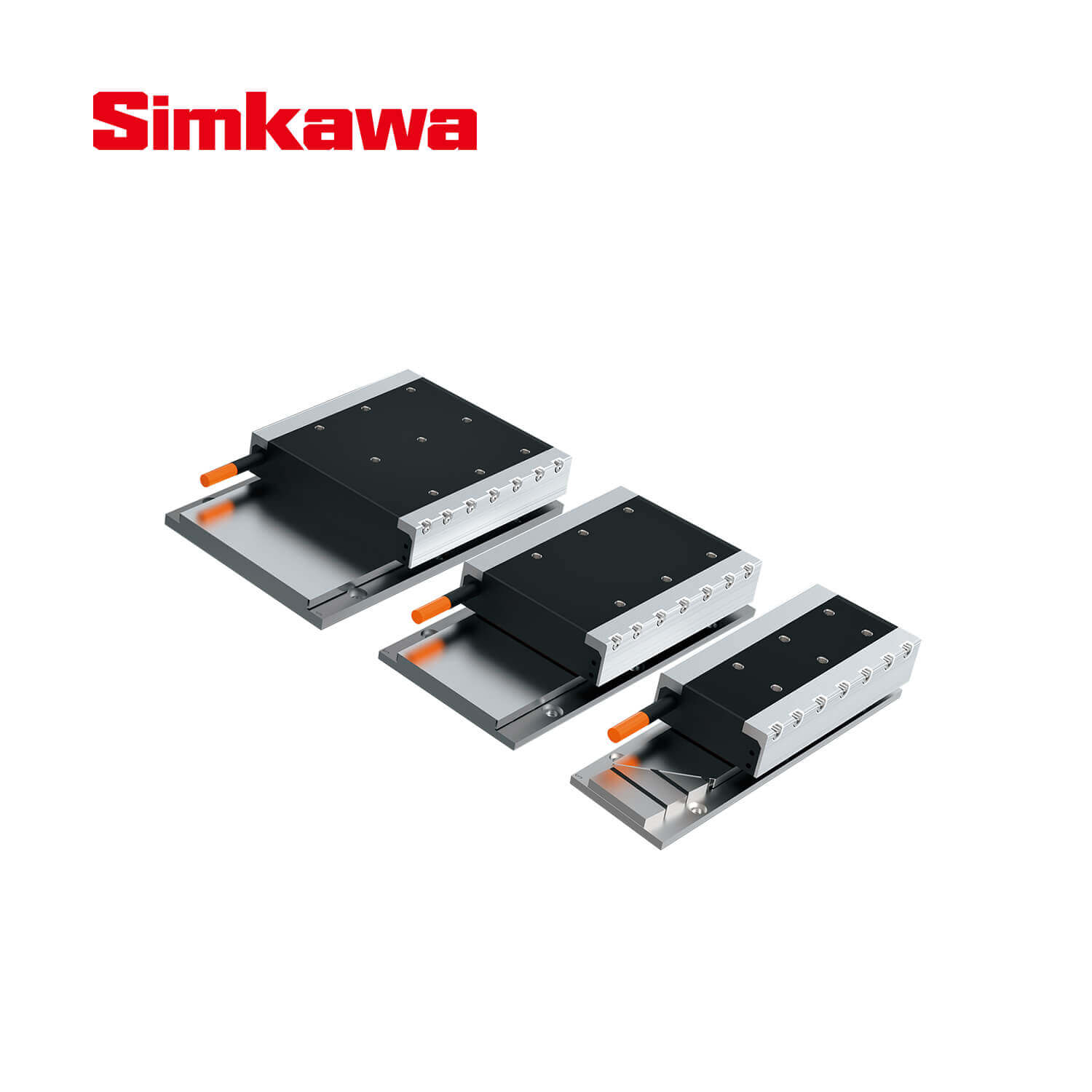

Iron Core Linear Motor DPD Series ( Standard )
This series linear motion motor is composed of motor line and magnetic track. The motor coil can be combined arbitrarily in series to form a new ultra-thin high-thrust motor. Magnetic yoke length can be customized according to customer requirements, length is unlimited, travel can be arbitrary.
Choose options
Iron Core Linear Motor DPD Features
1. The iron core structure has excellent thrust density and can achieve high acceleration and large load transmission.
2. The motor is compact and suitable for integration in space-constrained equipment.
3. The magnetic circuit design is optimized to greatly reduce the cogging effect, and high precision and low vibration can be maintained even at low speeds.
4. Direct drive mode, no mechanical transmission parts, no backlash error, fast response time, and high positioning accuracy.
simkawa linear motor

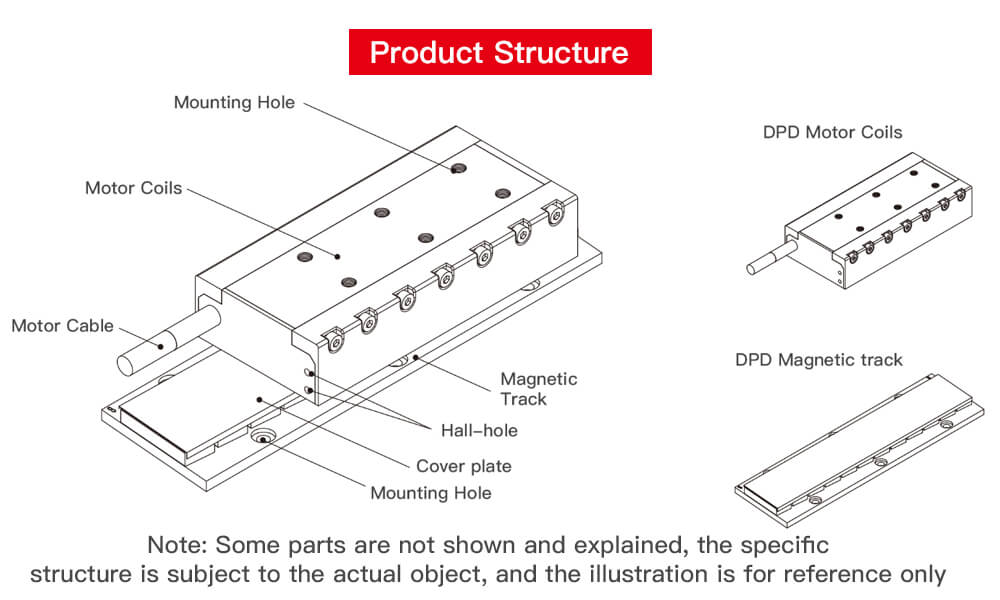

Structures of DPD Linear Motor
DPG linear motor runs smoothly without jamming, provides precise magnetic attraction, and is often used in high-precision, high-dynamic response automation systems.

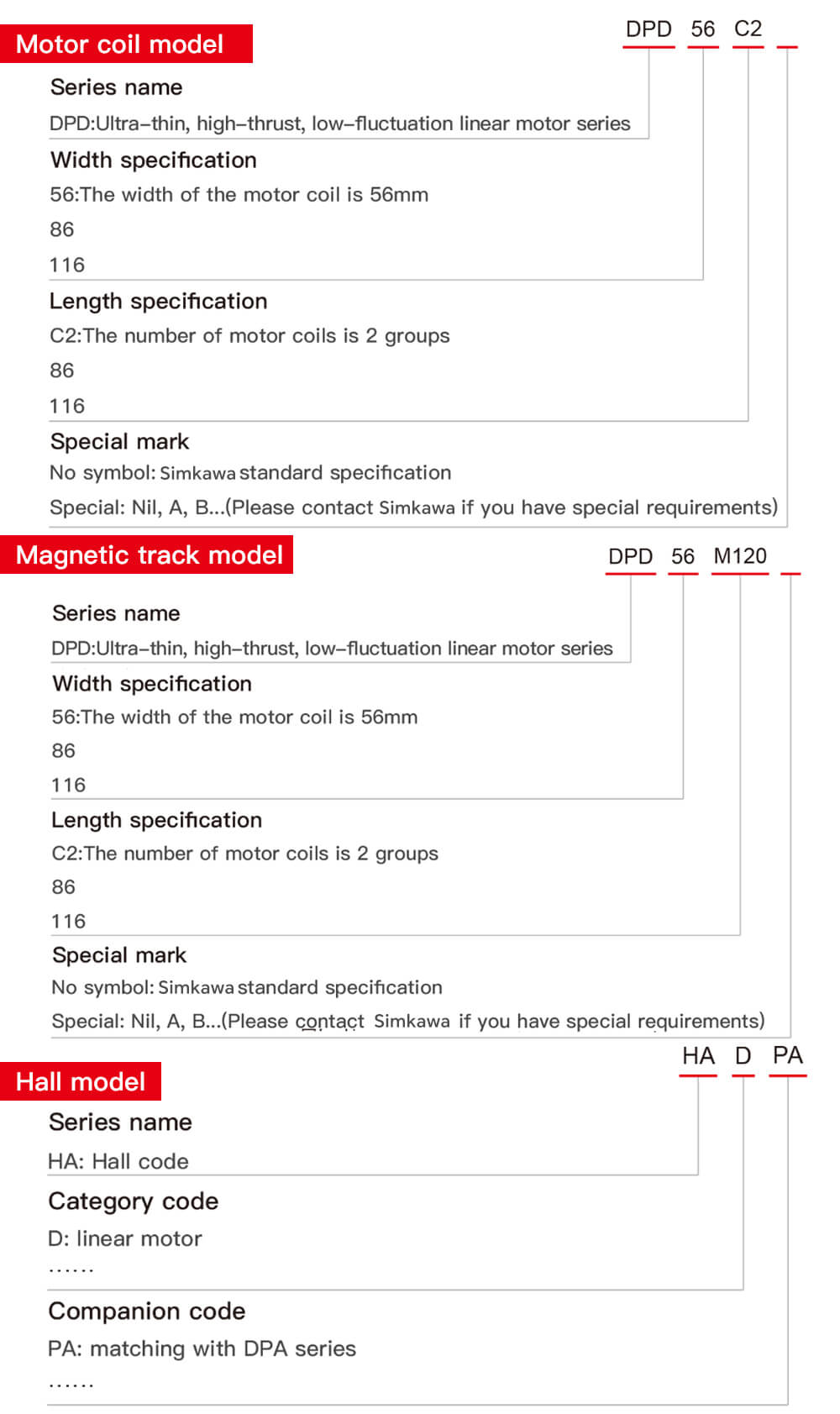

Specifications
DPD Series
The following are common specifications and typical parameter ranges of iron core linear motor DPD series.
Size

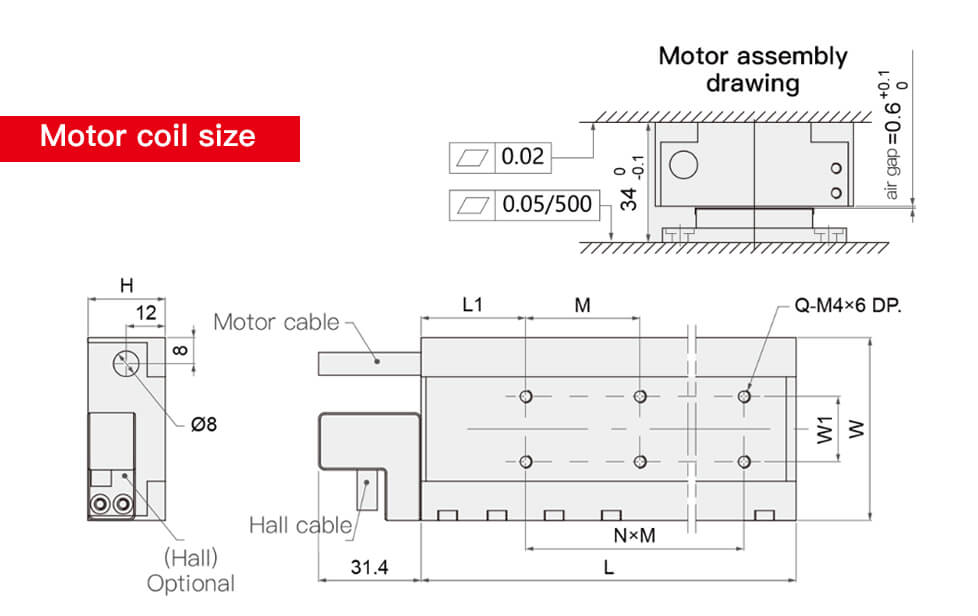

Motor Coil
The coil is the moving part of the linear motion motor and is usually mounted on a motion platform.
Size

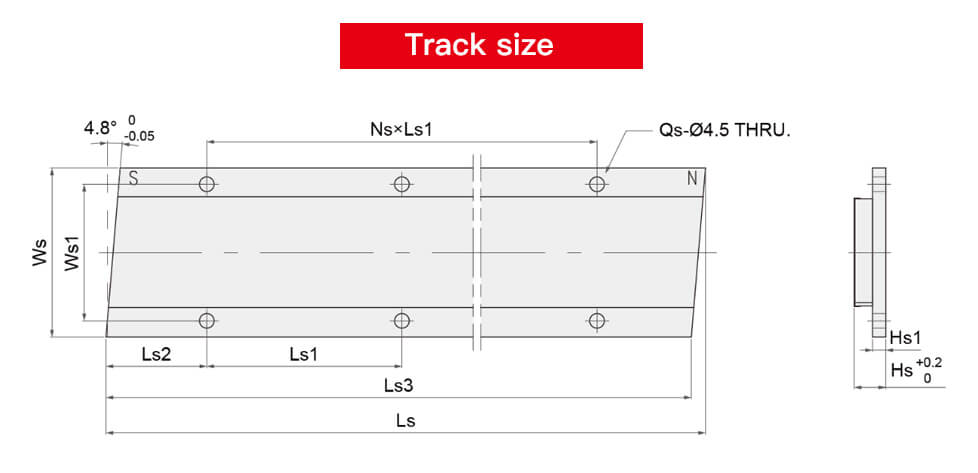

Track
The track is the fixed part, usually composed of a high-strength aluminum base + permanent magnet, and is installed on the bottom or both sides of the linear stage.

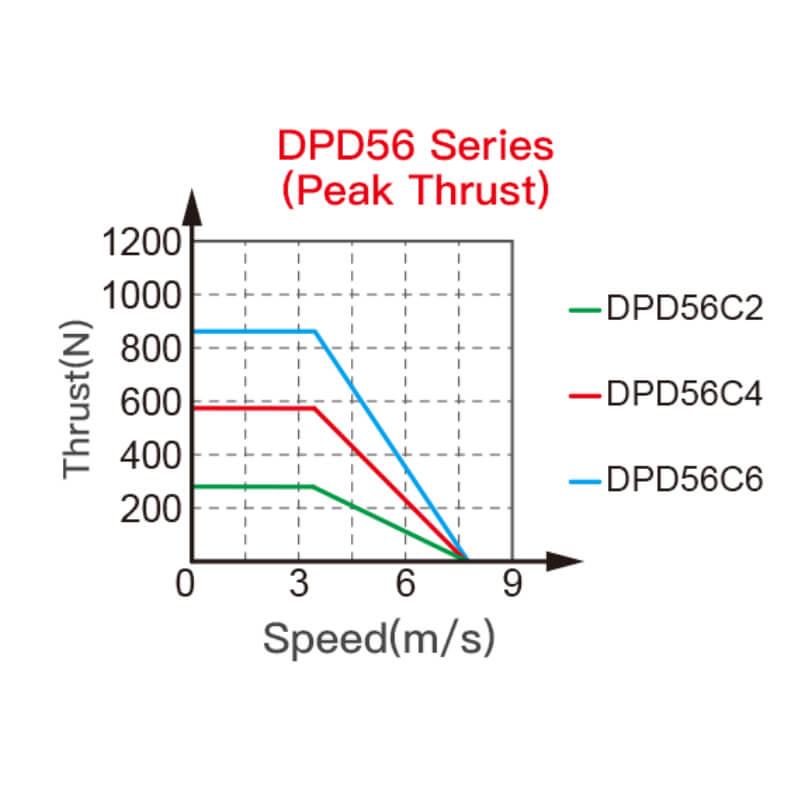

Thrust vs Velocity Graph
