NSFY Lead Screw Nut

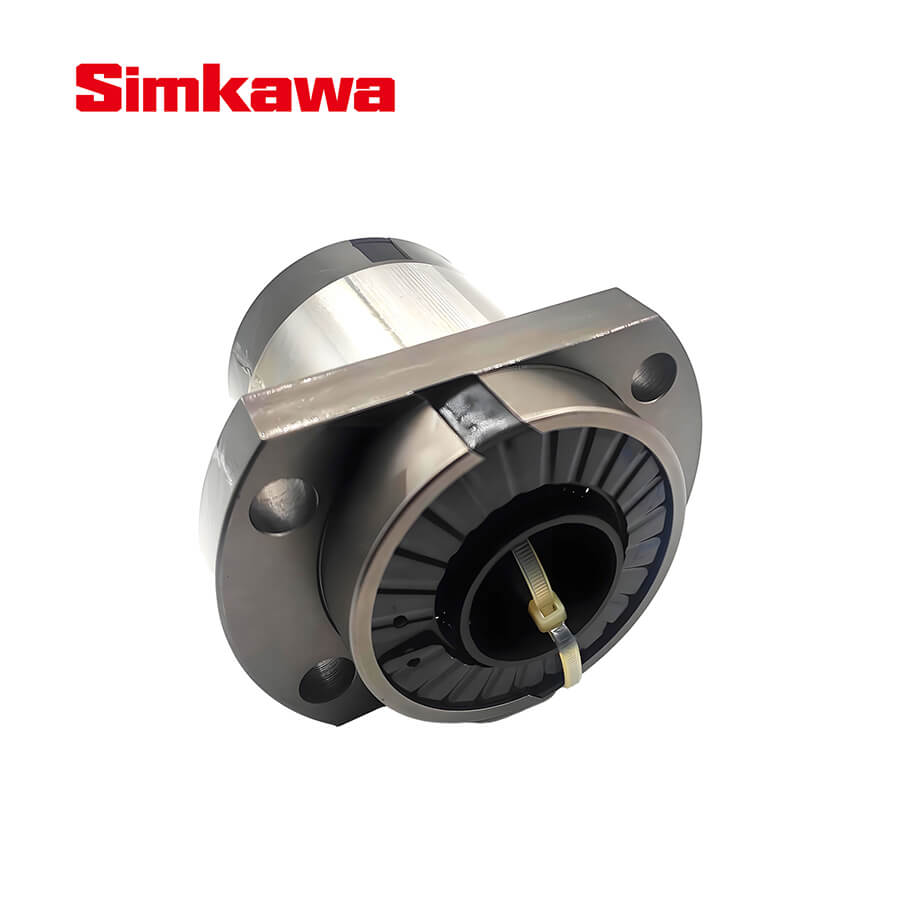

The end plug circulation design allows the balls to flow back smoothly through the circulation channels at both ends of the nut, ensuring the stability and high precision of the screw drive.
Choose options
Structural Features
End plug type circulation nut, which has a compact structure and reliable performance, is widely used in machine tools, automation equipment, medical equipment and precision instruments.
simkawa drive system

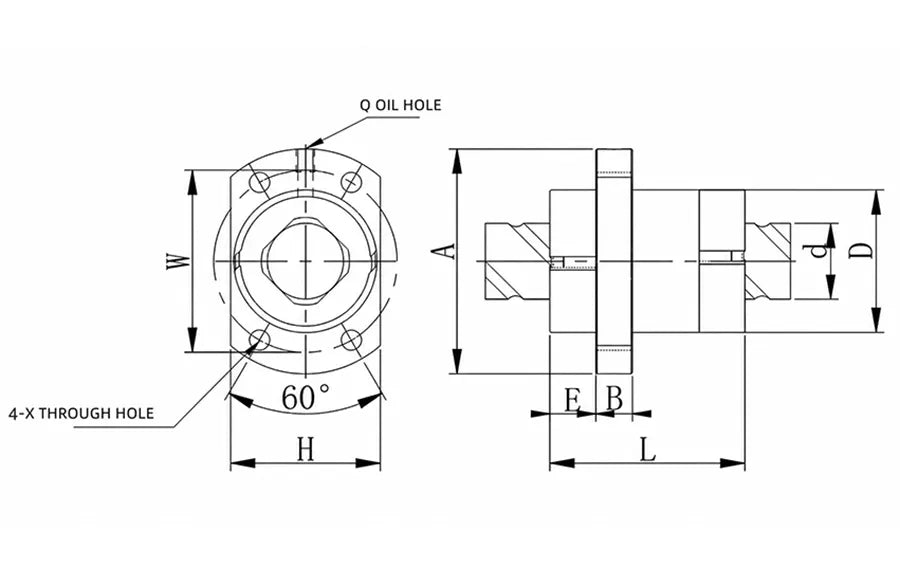

Structures of NSFY Screw Nut
Contact us by clicking the button below to get the latest quote for NSFY series lead screw nut system.
simkawa drive system
Structures of NSFY Screw Nut
Contact us by clicking the button below to get the latest quote for NSFY lead screw nut system.
Symbol Meaning
High-precision transmission: Internal ball recirculation design achieves low friction, high efficiency, and stable positioning.
High load capacity: Suitable for medium to high load transmission applications.
Preload design: Eliminates backlash, maintaining rigidity and precision.
Widely applicable: Suitable for CNC machine tools, automated production lines, double-nut transmission systems, and mechanical synchronizers.
Matching Ball Screw Model:
1632# 1616# 2020G 2040# 2525# 2550# 3232 #4040# 5050#
Notes:
#: SCR heavy-duty screw,
*: SSR light-duty silent screw,
G: Both types available.
Fixing Method

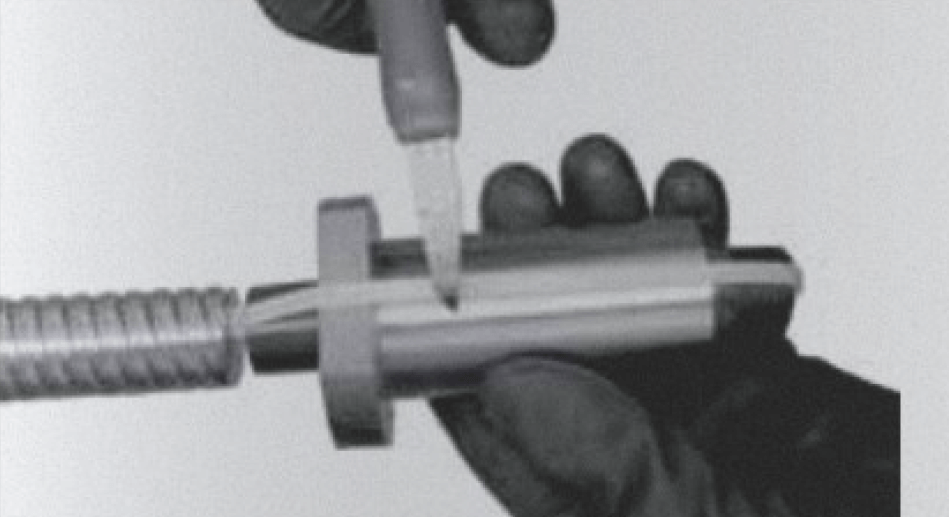

1. Cut off the NSFY lead screw nut's securing tie.
2. Insert the sleeve and nut together into the machined end, pressing against the threaded end of the screw.

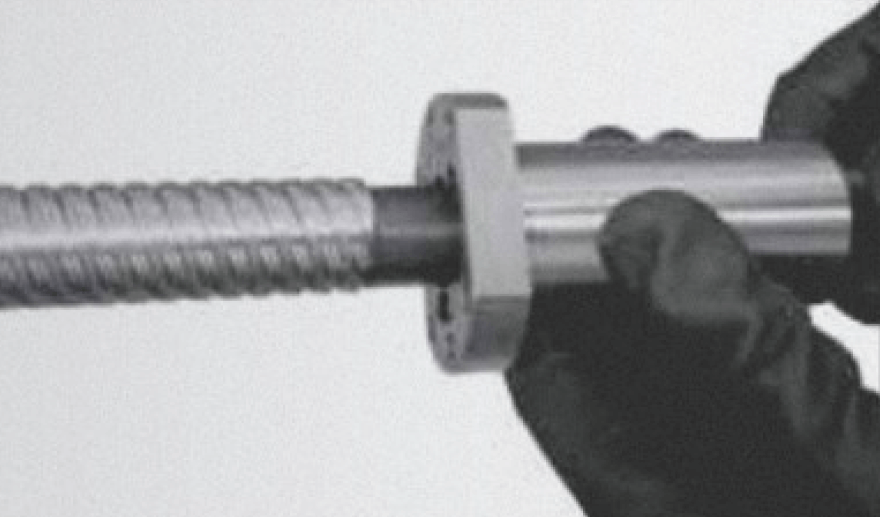

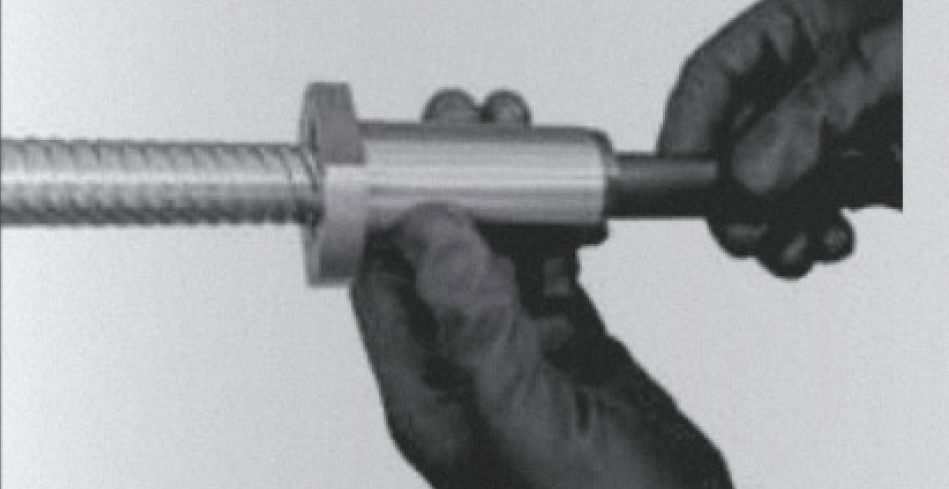

3. Rotate the nut along the raceway and insert it into the screw.

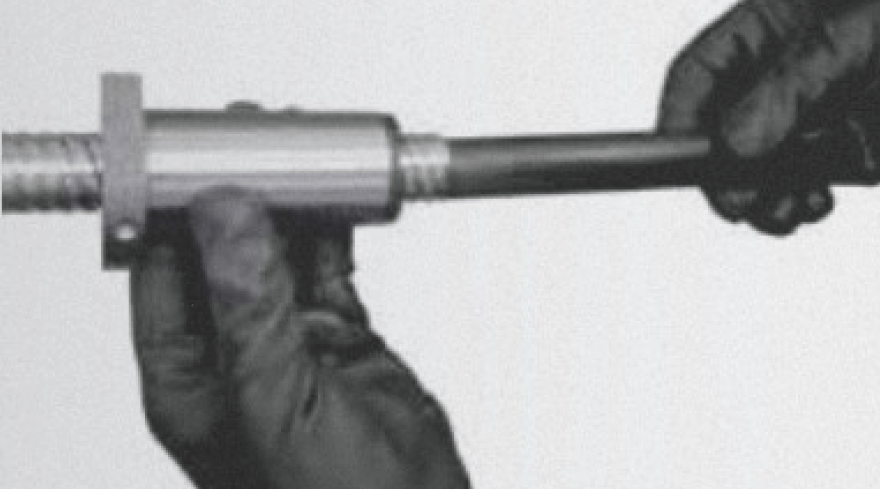

4. Ensure the nut is fully seated in the screw, then remove the sleeve.
NSFY End Plug Screw Nut

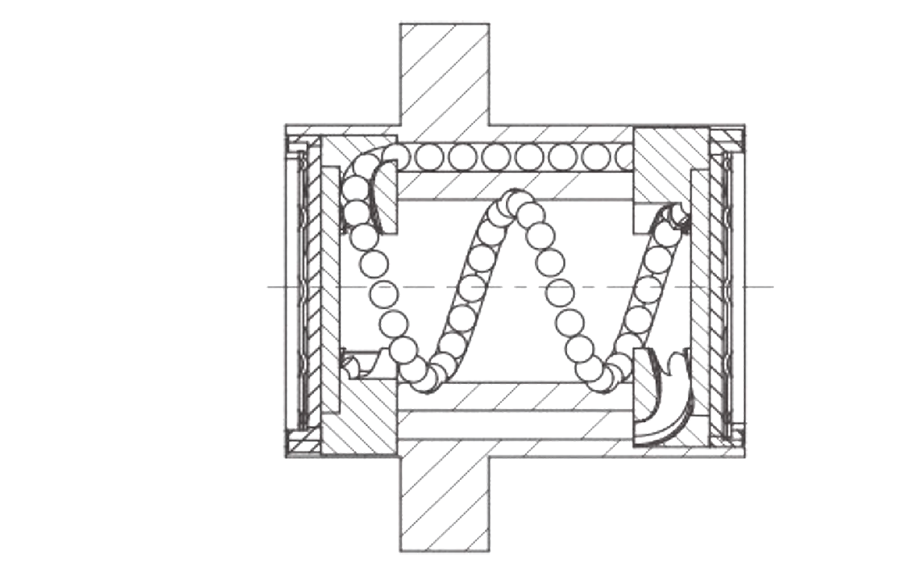

In end-plug recirculating nuts, the steel balls return to their original point of circulation via inverters at both ends and a return channel within the nut housing. Several turns constitute a single cycle, and a nut typically has two cycles, as shown in the diagram to the left.
This cycle allows for a larger lead and smoother rolling conditions.
End Plug Circulation
End plug lead screw nut ensures smooth and precise linear motion. Steel balls circulate through end deflectors and internal return channels, ideal for high-speed and low-noise applications.

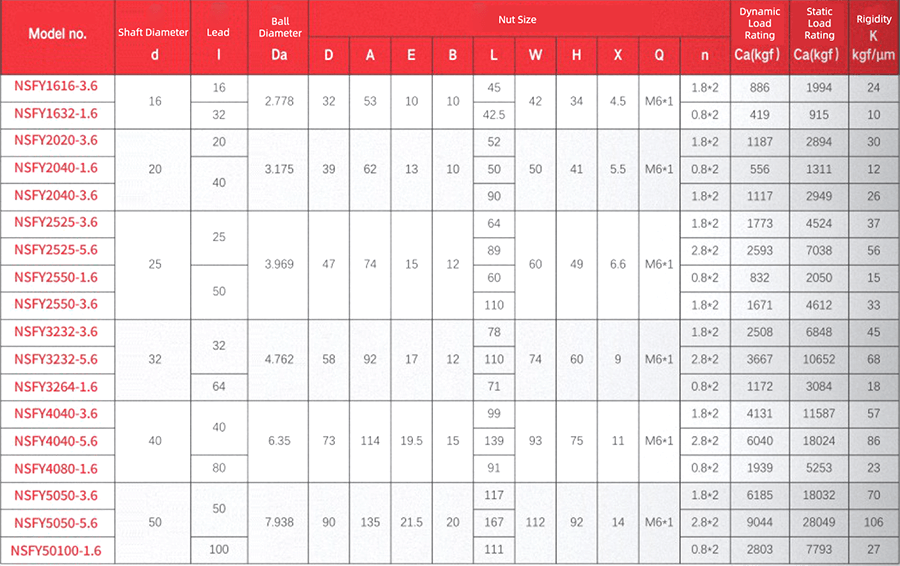

| Model | NSFY |
| Circulation method | End-plug Circulating |
| Nut type | Single Nut |
| Features | Silent high-speed series, suitable for high-speed feeding |
