Disc Flexible Coupling
Discover disc flexible couplings engineered for zero backlash and high torsional rigidity. Ideal for servo motors, precision drives, and industrial automation systems.
Choose options
Beam Coupling Descriptions

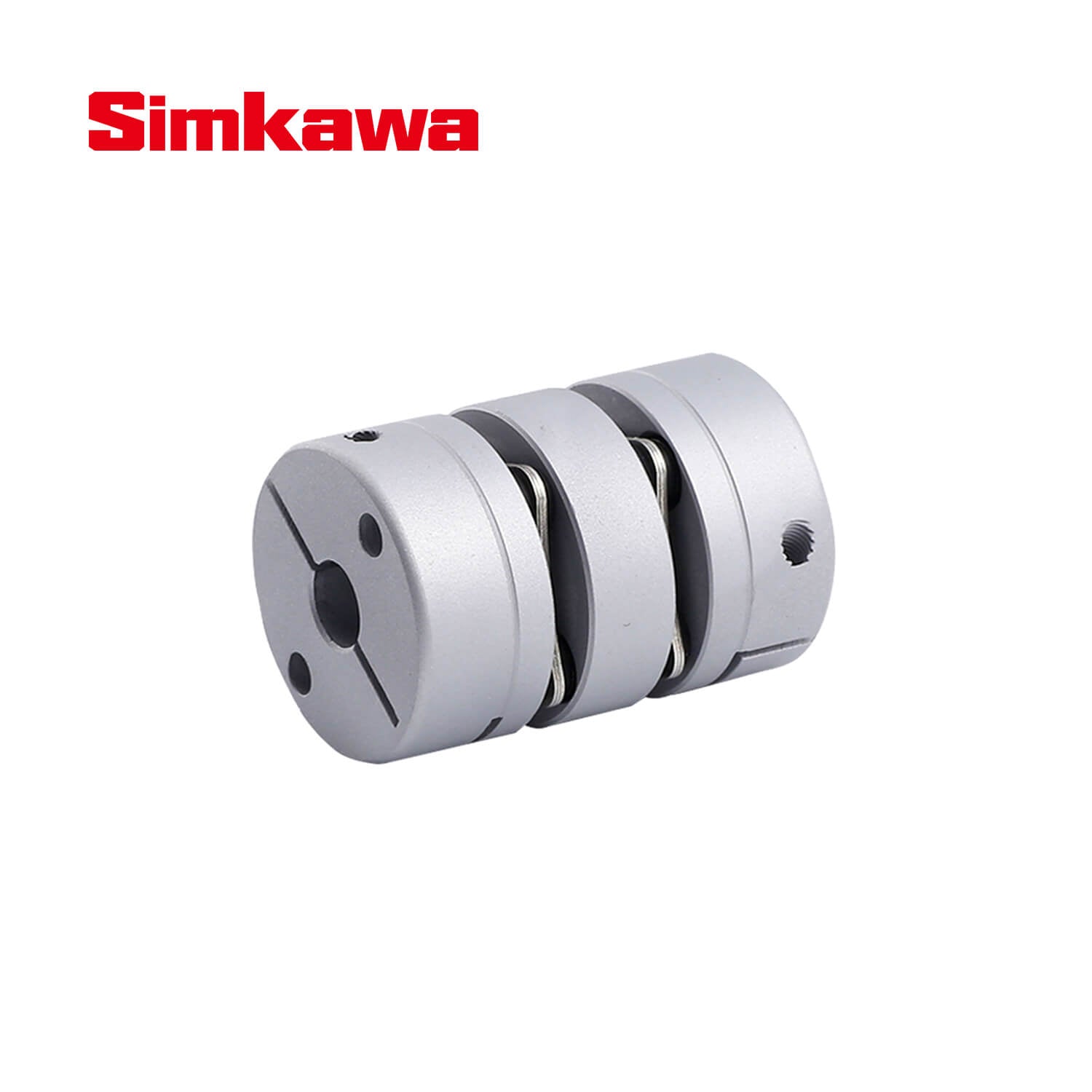

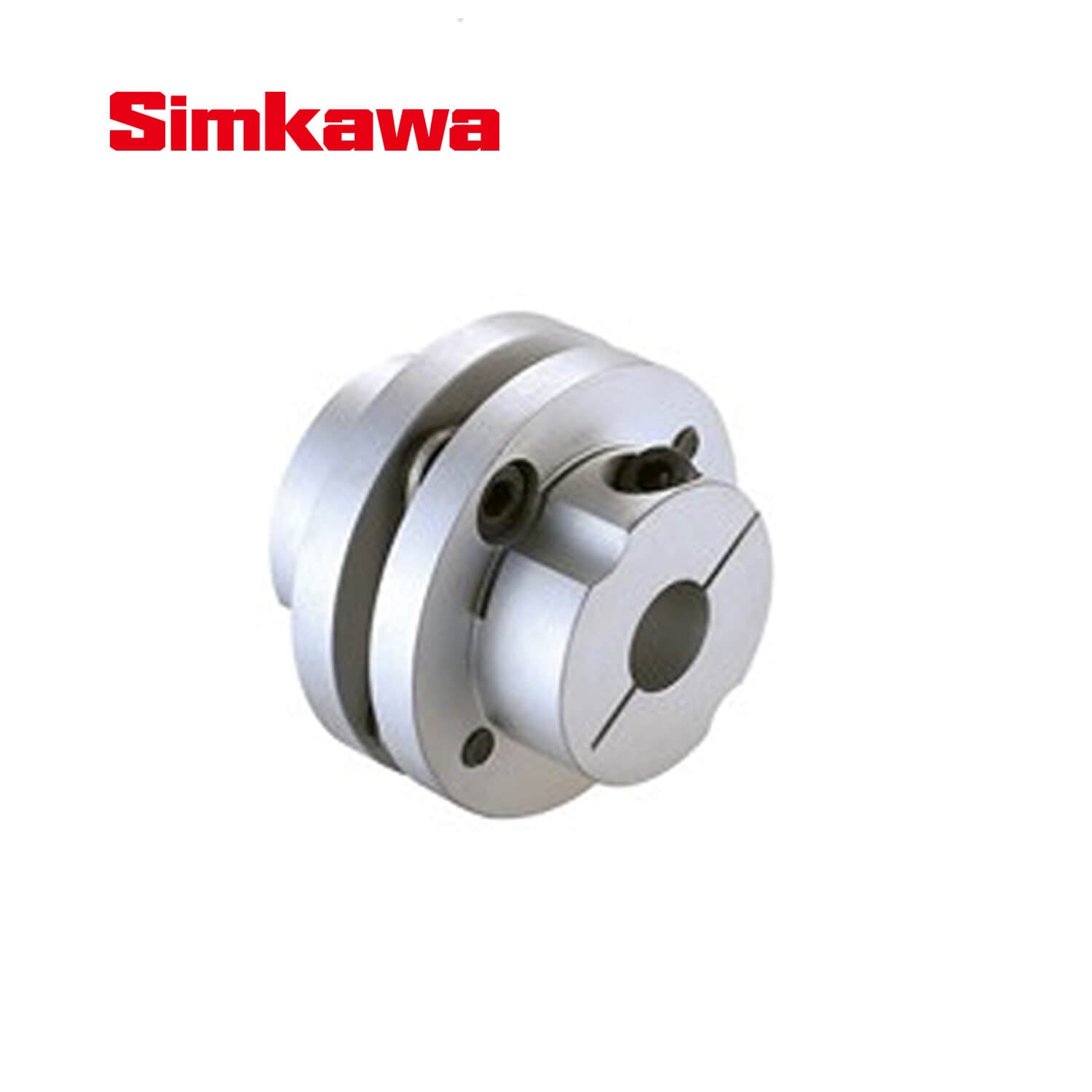

- The disc coupling consists of at least one set of stainless steel carbon sheets and two coupling bodies. The spring sheet is bolted to the coupling body and generally will not loosen or cause backlash between the stainless steel spring sheet and the coupling.
- Similar to the bellows coupling, the disc flexible coupling is easy to bend when relative displacement load occurs, can withstand up to 1.5 times the misalignment at one time, and generates lower bearing loads in the servo system.
- It is divided into single-piece coupling and double-piece coupling, and the style can be selected according to the specific usage scenario.
simkawa shaft coupling
Customization Options
Simkawa shaft couplings offer OEM, ODM, and OBM customization support, allowing users to tailor the product to their specific requirements.
- Spline Hole
Rectangular spline and involute spline holes are optional.
Rectangular spline hole processing follows GB/T1144-2001, and involute spline hole processing follows DIN5480 5482 standard
- Taper Hole
Taper hole processing is divided into 1:5 taper hole and 1:8 taper hole.
- Keyway
Keyway can be processed for hole diameters of 5-95
Product Parameter
| Model | Aperture | D | L | Rated Torque (N.m) | Max Torque (N.m) | |||
| d1 | d2 | |||||||
| Min | Max | Min | Max | |||||
| MP26 | 5 | 10 | 5 | 10 | 26 | 25.5 | 1.0 | 2.0 |
| MP26C | 5 | 10 | 5 | 10 | 26 | 25.5 | 1.5 | 3.0 |
| MP34C | 5 | 14 | 5 | 14 | 34 | 31.3 | 4.0 | 8.0 |
| 5 | 9 | 5 | 14 | 34 | 31.3 | 4.0 | 8.0 | |
| 5 | 9 | 5 | 9 | 34 | 31.3 | 4.0 | 8.0 | |
| MP39C | 8 | 16 | 8 | 16 | 39 | 34.1 | 6.0 | 12.0 |
Functions of Beam Couplings
- Zero rotational backlash
- One of a kind design with no torque loss
- Radial, axial and angular misalignment compensation performance
- Excellent torque stiffness and sensitivity
Product Packaging
1. PE bag independent packaging.
2. Support neutral packaging.
3. Logo customization.
