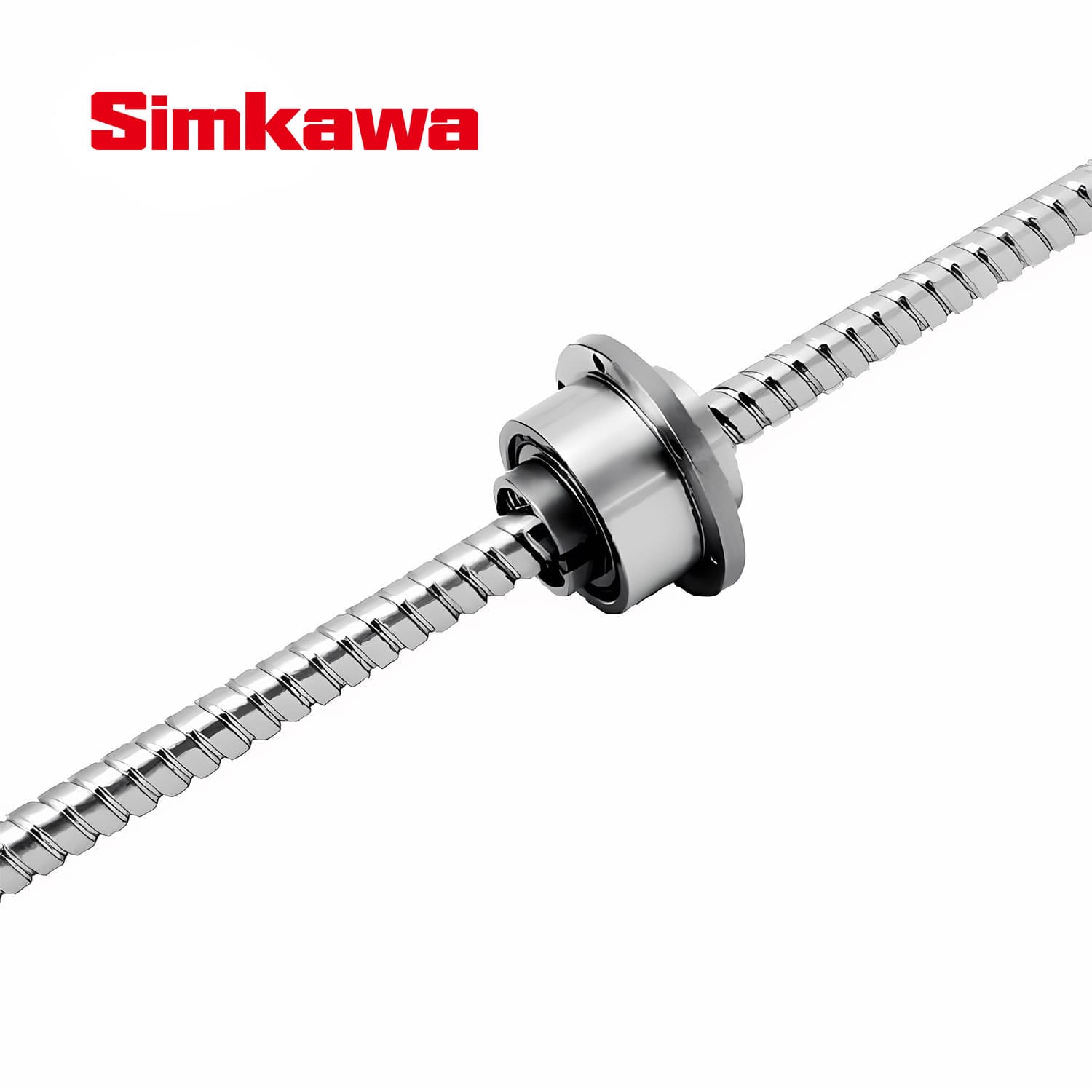

RFY Ball Screw Rod
RFY ball screw rod offers high precision, low backlash, and smooth motion—ideal for CNC machines, automation, and linear motion systems.
Choose options
RFY Ball Screw Rod Features
- Compact structure design
RFY series adopts precision miniaturized design, suitable for installation requirements of equipment with limited space.
- High-precision transmission performance
The screw is precisely processed and matched with the preloaded nut structure.
- Low backlash and low friction
Optimize the contact angle between the ball and the raceway to reduce friction and clearance.
- Stable operation and low noise
The silent circulation system design is adopted, with low vibration and low noise during operation.
simkawa drive system

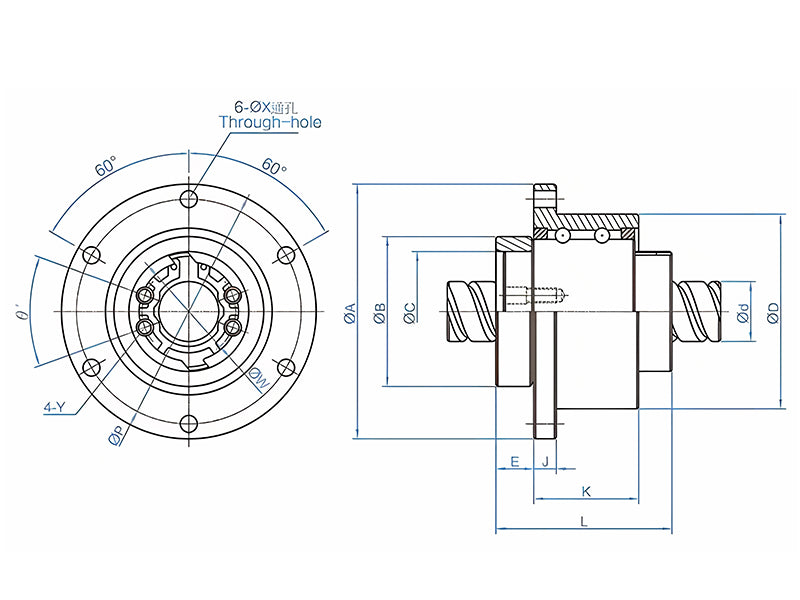

Specifications of RFY Ball Screw Rod
Contact us by clicking the button below to get the latest quote for RFY series ball screw drive system.
Structure and Material
| name | Material | Heat Treatment | Hardness |
| Screw | SCM450(S55C) | Induction hardening | HRC58°~62° |
| Nut | SCM415 | Carburizing and quenching | HRC58°~62° |
| Steel ball | SUJ2 | Roller furnace quenching | HRC60° or above |
Ball Screw Transmission Form
Nut drive type
In this design, the ball screw's nut is fixed to the device, while the screw itself is rotated by a motor or other drive device.
Ball Screw Transmission Form

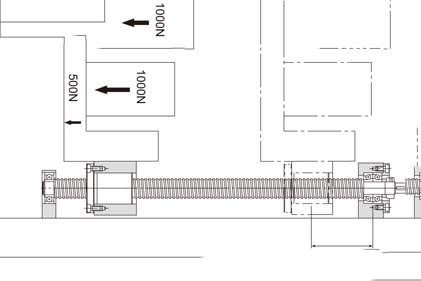

Screw drive type
In this design, the lead screw is fixed and the nut is rotated by a motor or other drive device.
