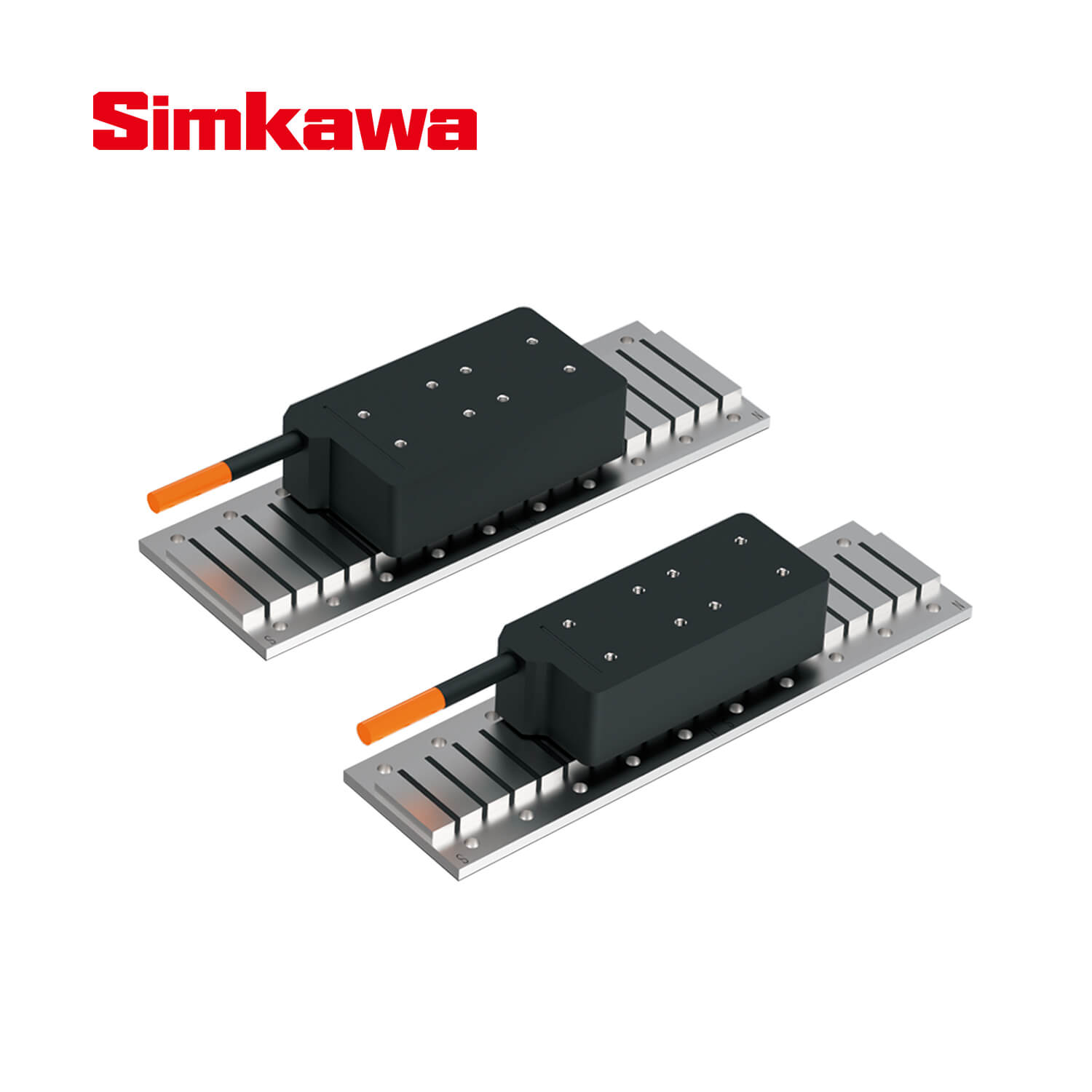

Iron Core Linear Motor DPN Series ( Small Size )
Explore the iron core linear motor DPN series ( small size ) - trusted for high force, precision motion, and reliable performance in industrial automation, CNC machinery, and semiconductor equipment.
Choose options
Iron Core Linear Motor DPN Features
1. Microminiature Design – Ultra-compact structure suitable for space-constrained installations.
2. High Responsiveness – Delivers rapid acceleration and precise dynamic control.
3. Low End Effect – Optimized magnetic circuit design minimizes edge force distortion.
4. Precise Magnetic Force Control – Provides accurate and consistent magnetic suction force.
5. Optional Hall Sensor – For special application scenarios requiring position detection.
simkawa linear motor

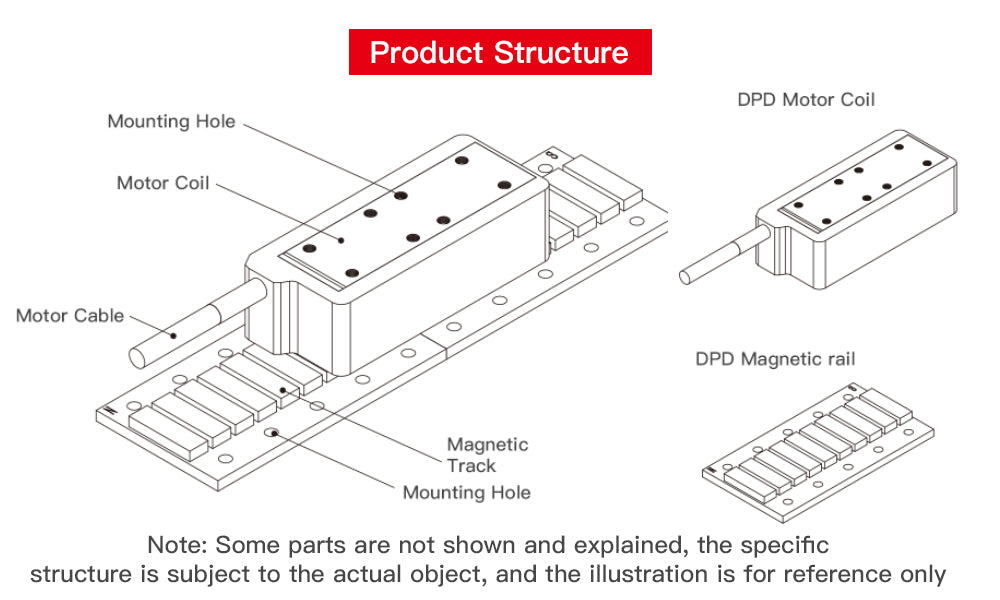

Structures of DPN Linear Motor
Simkawa linear motor manufacturer produces smooth and unstuck operation, provides precise magnetic attraction, and is often used in high-precision, high-dynamic response automation systems.

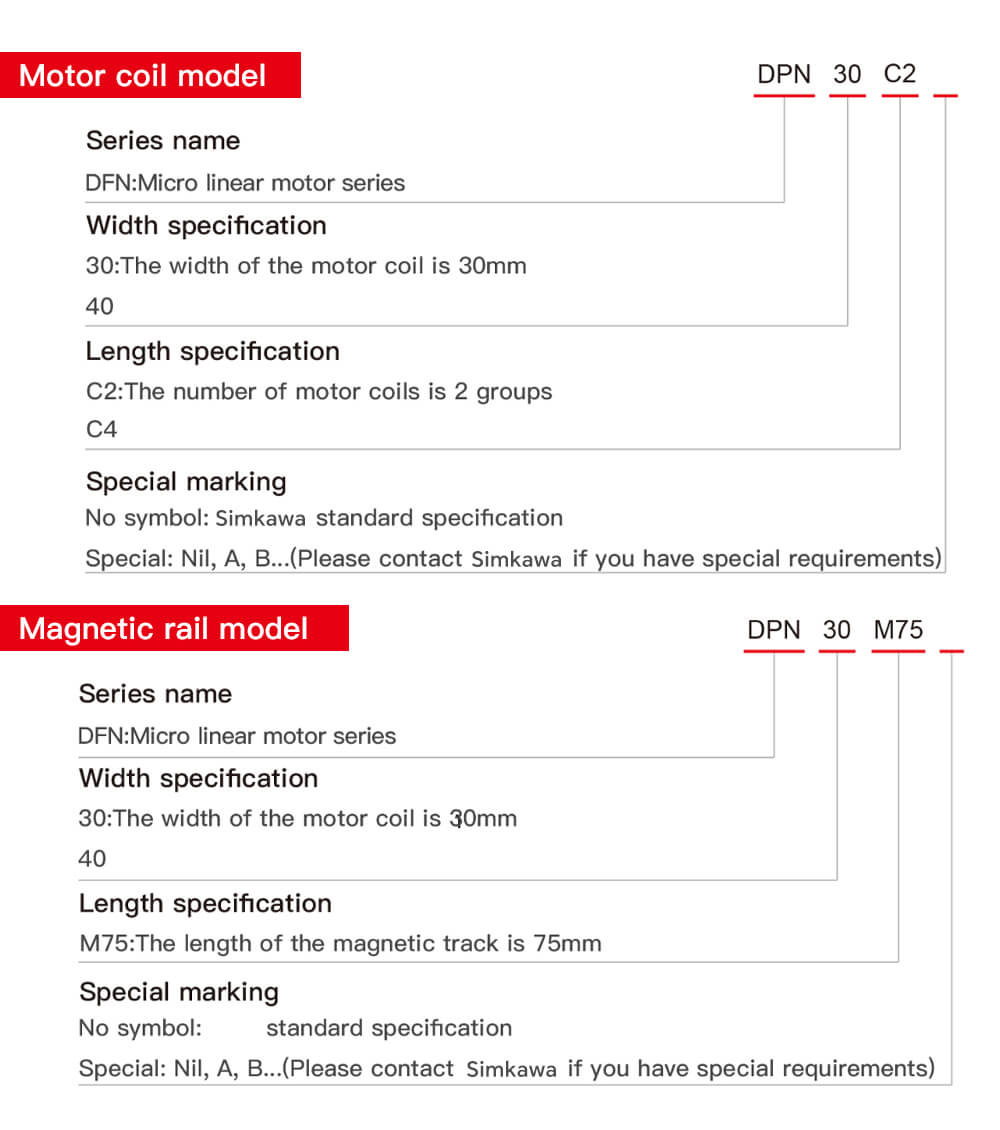

Specifications
DPN Series
The following are common specifications and typical parameter ranges of DPN linear motion motors.
Size

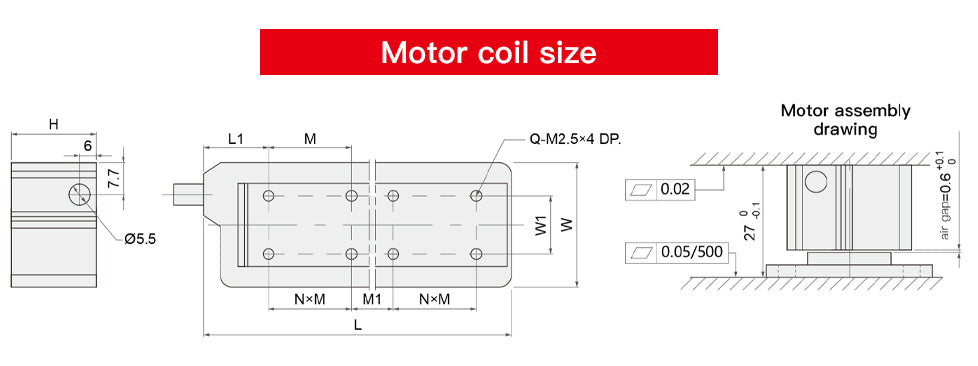

Motor Coil
The coil is the moving part of the linear motion motor and is usually mounted on a motion platform.
Size

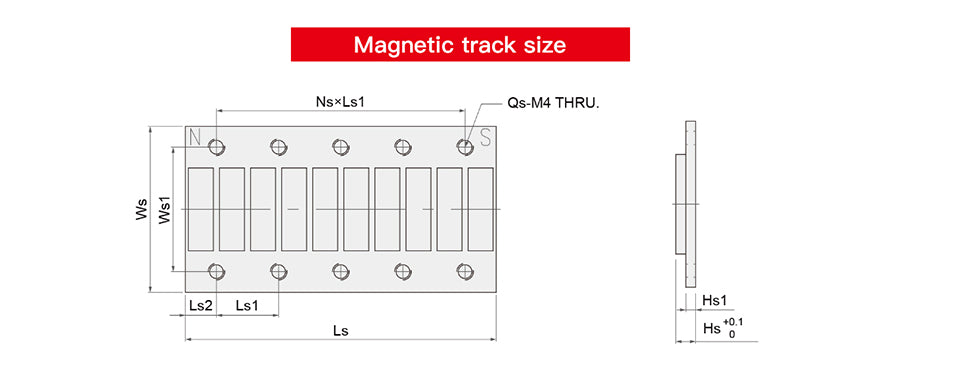

Track
The track is the fixed part, usually composed of a high-strength aluminum base + permanent magnet, and is installed on the bottom or both sides of the linear stage.

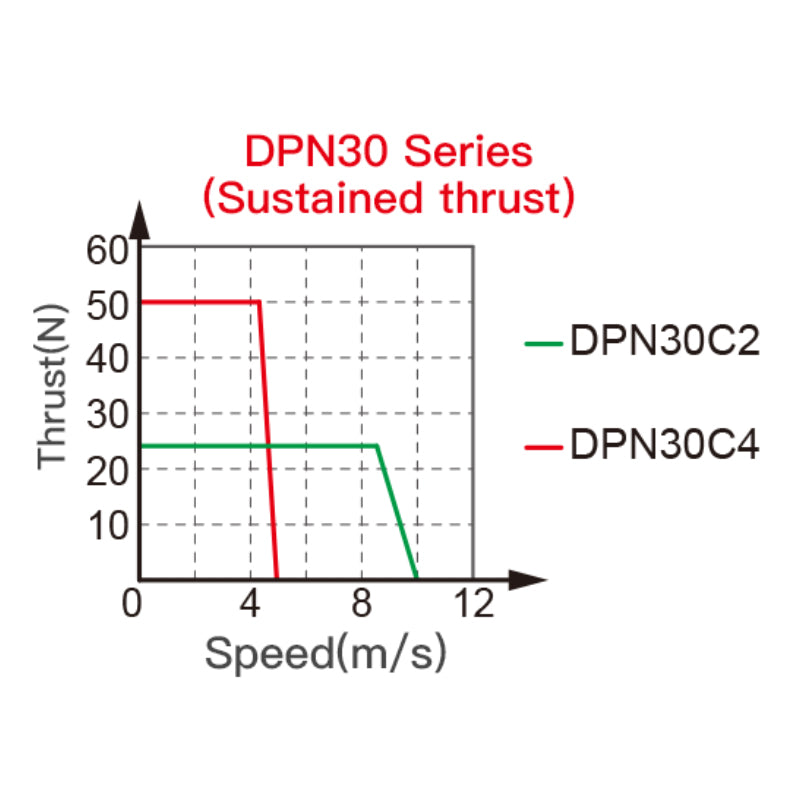

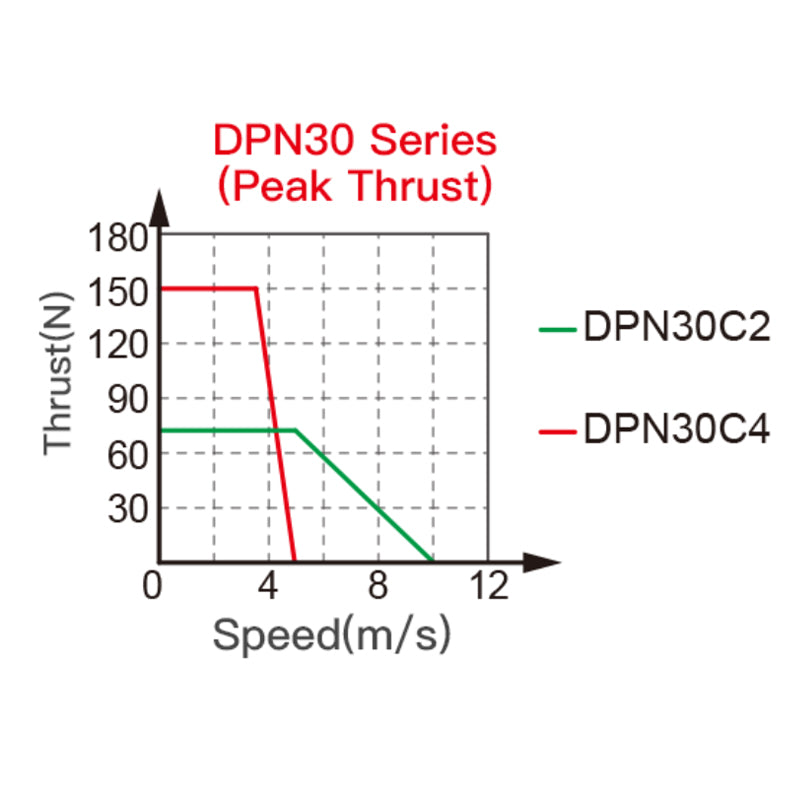

Thrust vs Velocity Graph
DPN Linear Motor High Performance Output:
Peak Thrust: 75N to 240N
Continuous Thrust: 25N to 80N
Maximum Speed: Up to 8 m/s
