Comparison of Different Types of Linear Guides
| Model | Structural features | Load capacity | Operational characteristics | Typical applications |
| LG high assembly linear guide | High slider, wide track, large contact angle, four-way equal load design | ⭐⭐⭐⭐ | Strong stability and excellent torsion resistance | Machine tools, mold equipment, and automated production lines |
| LM low assembly linear guide | Low slide height, compact structure, and lower center of gravity | ⭐⭐⭐ | Low center of gravity design, suitable for high-speed operation | CNC machining centers, small machinery |
| LMGQ Series Silent Linear Guides | Resin coupling between balls reduces noise and friction | ⭐⭐⭐⭐ | Quiet, smooth operation, long life, and low maintenance | Medical equipment, electronic assembly, office automation |
| LMR Roller Linear Guides | Uses rollers instead of balls for a larger contact surface | ⭐⭐⭐⭐⭐ | Extremely high load capacity and high rigidity | Heavy machine tools, stamping dies, robot bases |
Linear Guide Rail Advantages
High Positioning Accuracy
When this bed is running, there will be no slippage, and the positioning accuracy can reach μm level.

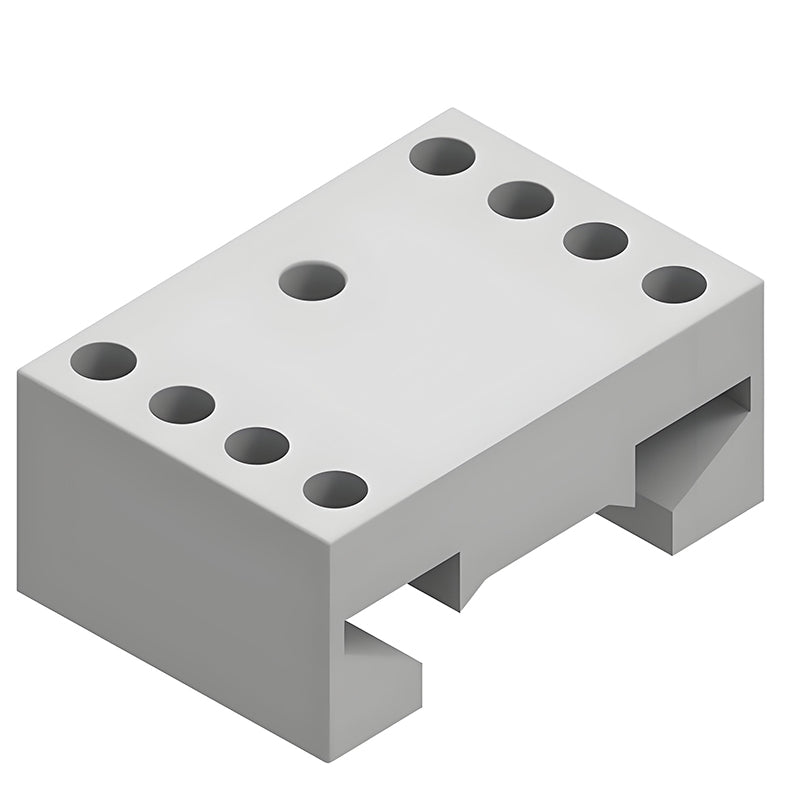

Self-Lubrication
The slider has a built-in self-lubricating module, which guides the lubricant to the surface of the guide rail for lubrication through engineering fibers.

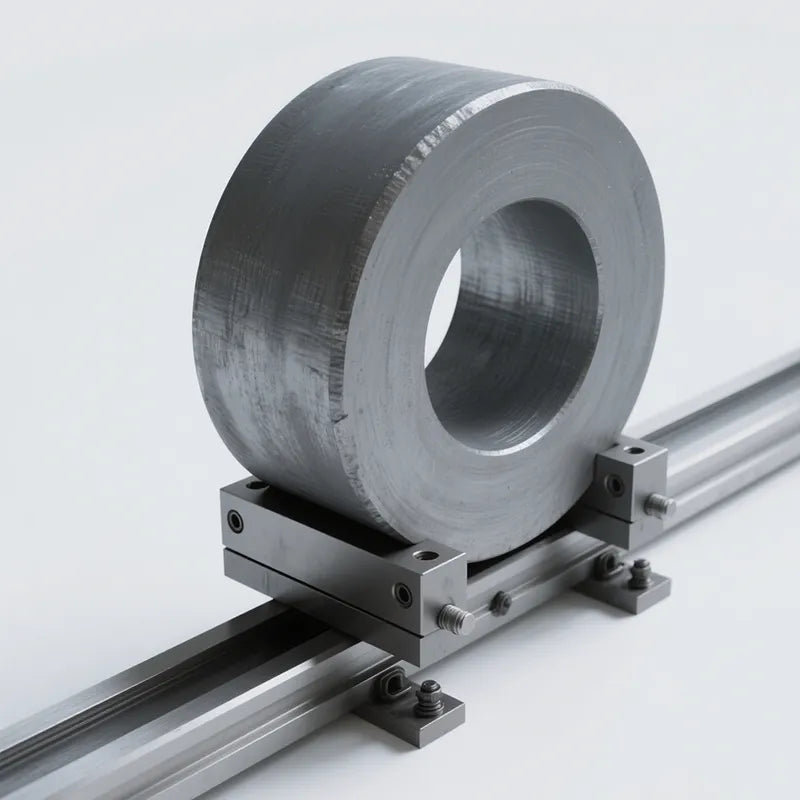

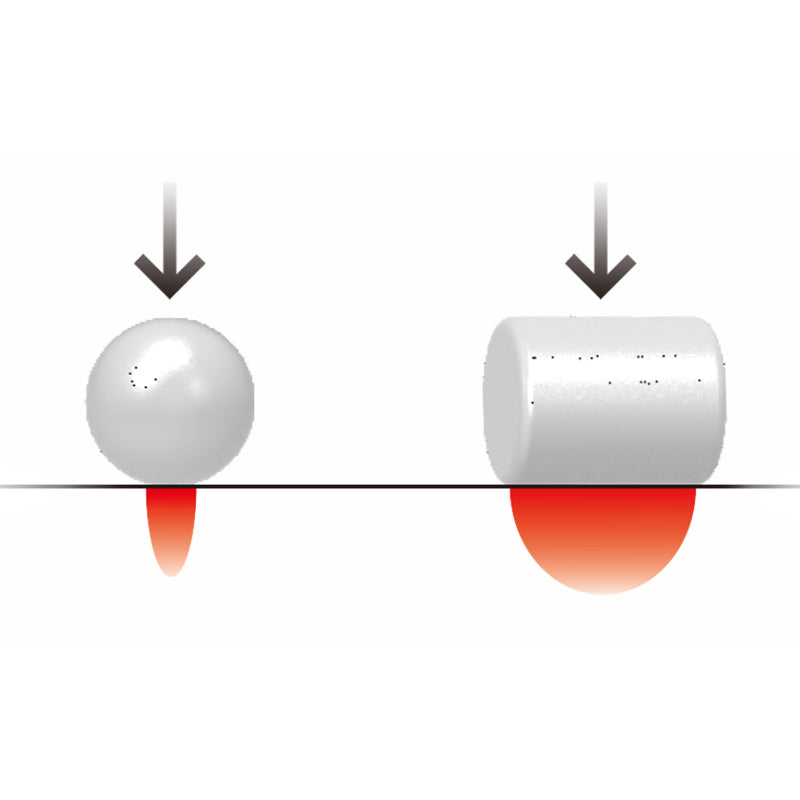

High Load Capacity
Due to the special beam structure design of the linear guide rail, it can withstand loads in the upper, lower, left and right directions at the same time.

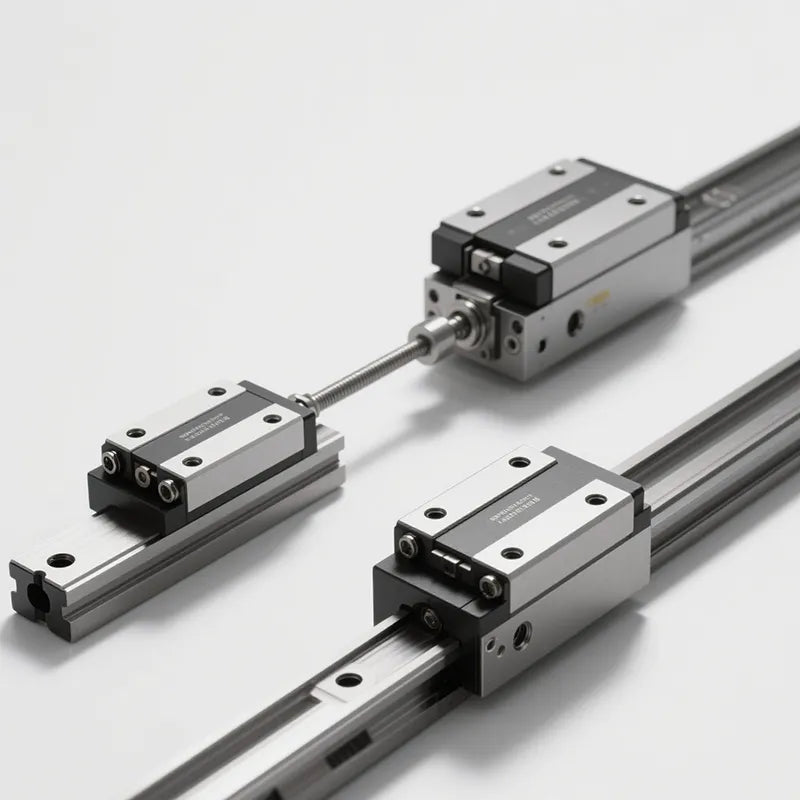

Interchangeability
The linear guide rail is interchangeable, and the slider or guide rail or even the linear guide rail group can be replaced separately, and the machine can regain high-precision guidance.
