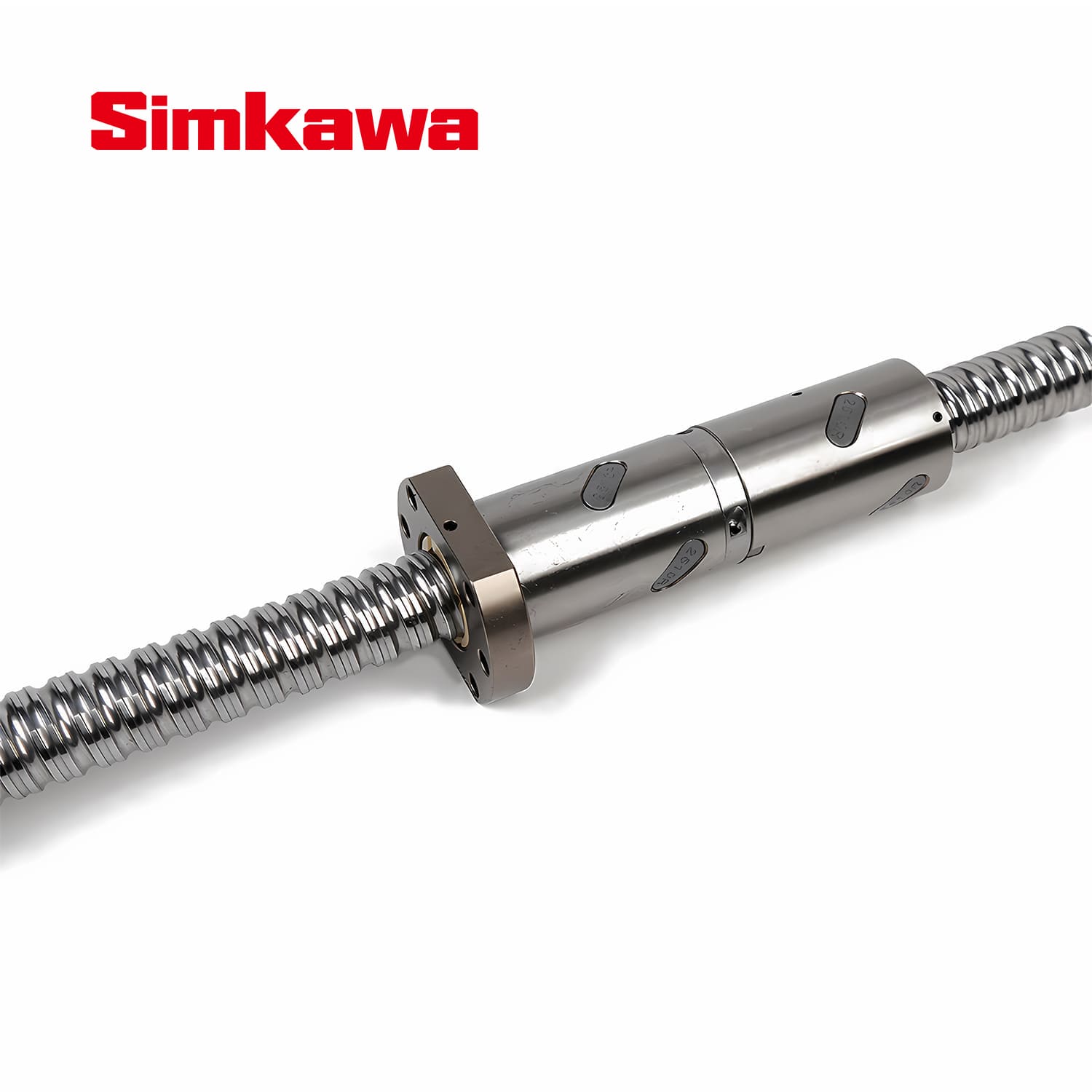

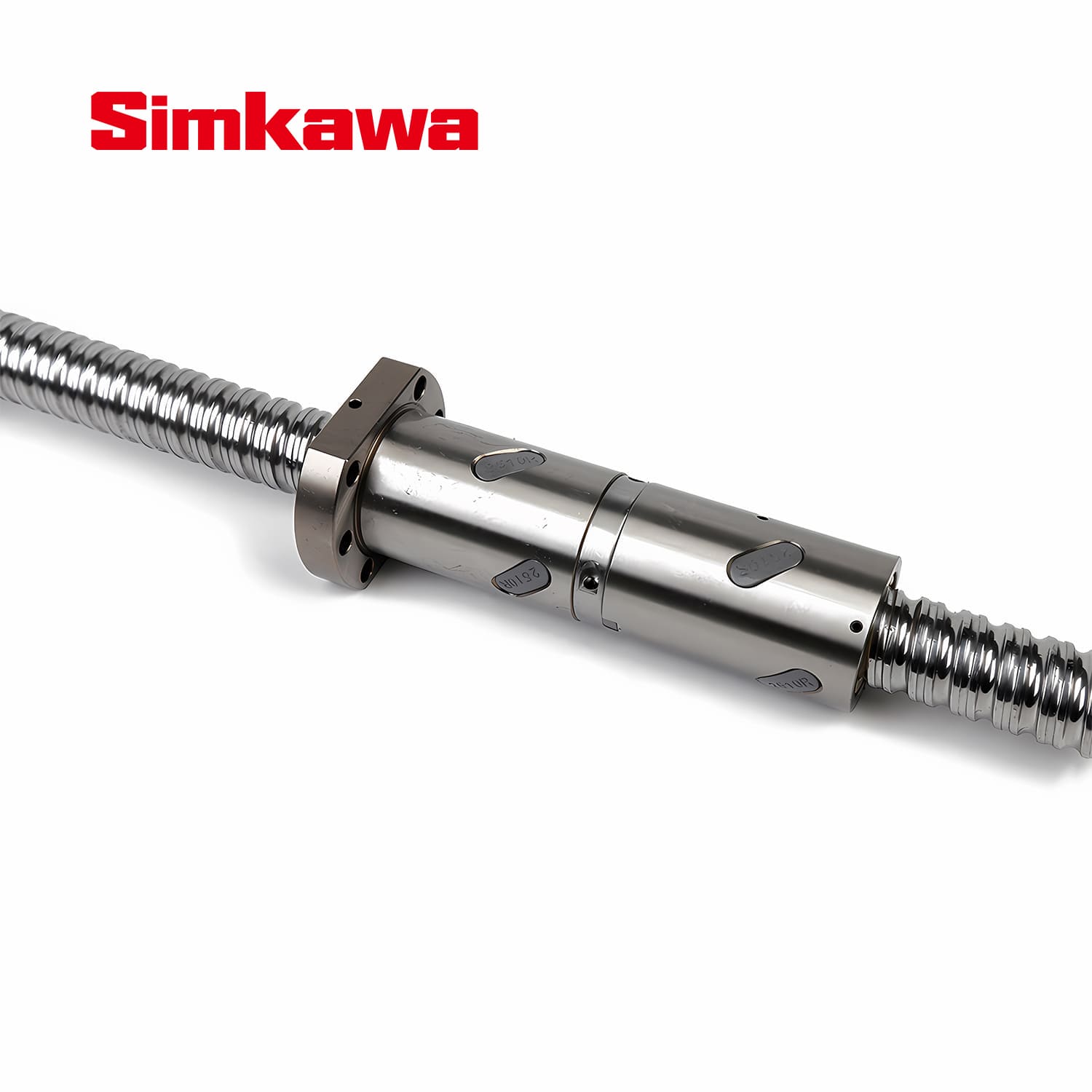

DFU CNC Ballscrews Features

• High Lead Design

The DFU series adopts a large lead structure, which is suitable for high-speed linear displacement transmission, significantly improving the response speed and work efficiency of the equipment.

• Applicable to high-speed processing equipment

Especially suitable for CNC processing centers, high-speed engraving machines, automatic feeding systems and other automation equipment with high requirements for rapid positioning.

• High efficiency and low friction

The ball transmission structure has a small friction coefficient, high transmission efficiency, reduced energy consumption and heat generation, and extended system life.

• High-precision positioning

Precision thread processing technology ensures small axial clearance and high repeated positioning accuracy to meet precision processing needs.

SFU1610 CNC Ballscrews

• SFU1610 is a standard external circulation ball screw. The "16" in the model number indicates that the nominal diameter of the screw is 16mm, and the "10" indicates that the lead is 10mm.
• The external circulation design enables it to have a higher load capacity and better heat dissipation performance.
• The lead is larger (10mm), which is suitable for occasions that require fast movement.
