Heavy-duty motion systems need more than sufficient load capacity. They also need rigidity to limit deflection and maintain stable movement under changing forces. For machine tools and industrial automation equipment, selecting the right linear guide requires careful consideration of load direction, accuracy, preload, and installation conditions.

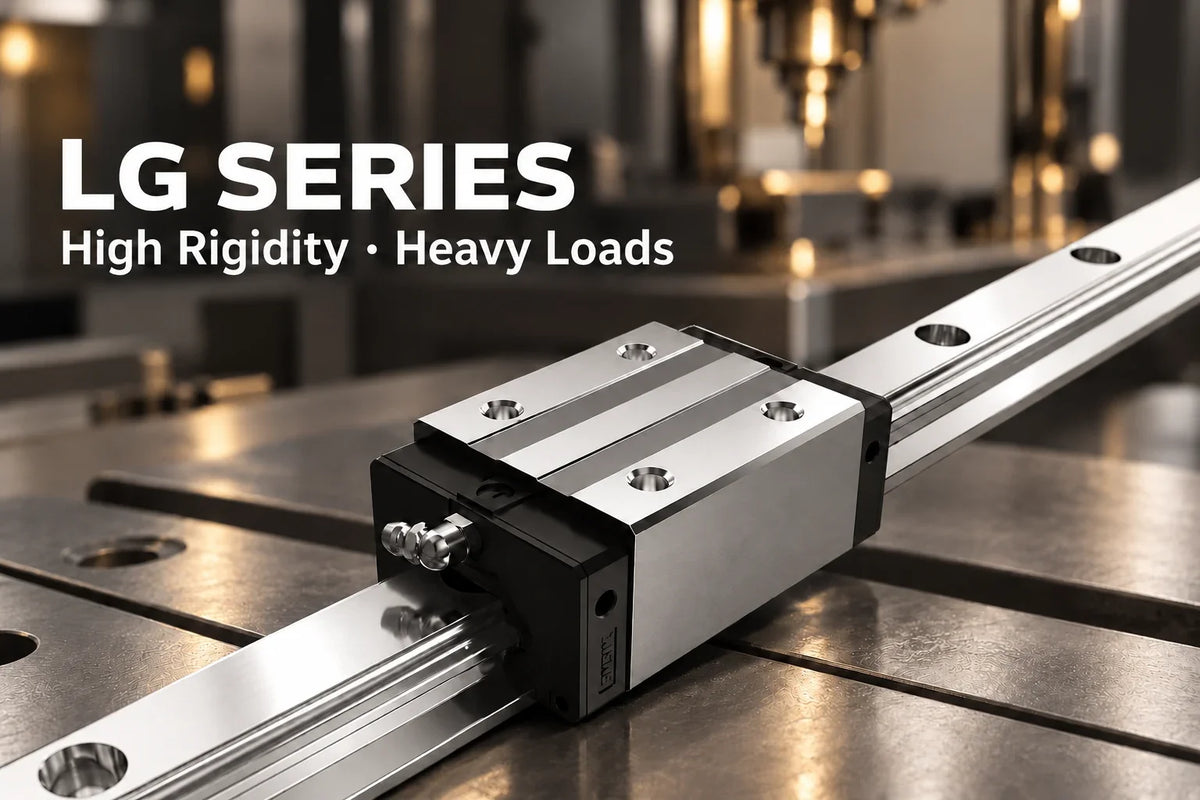

Simkawa LG linear guides are designed for high-load and high-precision applications, with four-direction load capability, self-aligning characteristics, and a range of configuration options.
1. Why Rigidity Matters in Heavy-Load Applications
Load capacity and rigidity describe different aspects of guide performance. Load capacity relates to the loads a guide can accommodate under specified conditions. Rigidity describes its resistance to deformation under an applied force.
A guide may support a worktable’s weight while still deflecting more than the application permits. Machining forces, acceleration, and an offset center of gravity can also change the load on individual blocks.
For this reason, guide selection should account for both loading and permissible deflection, rather than relying on total equipment weight alone.
2. Key Features of LG Linear Guides
Four-Direction Load Capability
The LG series features equal load capability in four directions, supporting loads from above, below, and either side.
Moment loads still require separate evaluation. An overhanging workpiece or a force applied away from the support area can produce uneven block loading. Rail spacing, block spacing, and the position of the applied force should therefore be considered together.
Self-Aligning Characteristics
The self-aligning design helps accommodate some mounting-surface assembly errors.
This capability does not replace proper installation. Clean reference surfaces, suitable mounting flatness, and correct rail alignment remain essential for stable movement.
Size, Accuracy, and Preload Options
The LG series offers the following configurations.
| Configuration | Available Options |
|---|---|
| Rail width | 15, 20, 25, 30, 35, 45, 55, and 65 mm |
| Accuracy grade | N, H, P, SP, and UP |
| Preload grade | Z0, Z1, and Z2 |
Consult the corresponding technical documentation for exact accuracy tolerances. Final machine positioning performance also depends on the drive system, feedback system, and installation quality.
Interchangeable Rail and Block Options
The LG series offers interchangeable rail and block configurations. Before ordering replacements, confirm compatibility for the specific model, accuracy grade, and preload configuration. Matching rail width alone is not sufficient.
3. Selecting the Right Preload
Preload influences guide rigidity and motion resistance. The LG series provides three preload options with different application priorities.
| Grade | General Selection Direction |
|---|---|
| Z0 | Relatively consistent load direction, low impact, and applications prioritizing low motion resistance |
| Z1 | Precision motion applications requiring a balance of rigidity and running performance |
| Z2 | Machine-tool applications with higher rigidity requirements, vibration, or impact |
Higher preload is not automatically better. It generally increases internal loading and motion resistance, so the choice should reflect external loads, operating speed, available drive force, and service-life requirements.
A heavy external load does not, by itself, justify selecting the highest preload.
4. Typical Applications
LG series applications include machining centers, grinding machines, CNC lathes, precision XY platforms, packaging machines, and conveying equipment.
The selection priorities differ between these applications:
| Application | Main Selection Considerations |
|---|---|
| Machining centers and grinding machines | Machining forces, vibration, rigidity, and contamination protection |
| CNC lathes | Load direction, impact, and movement stability |
| Precision XY platforms | Accuracy, preload, alignment, and motion resistance |
| Packaging and conveying equipment | Working loads, duty cycle, and maintenance access |
These applications provide a starting point for selection. The final configuration should be checked against actual operating conditions, particularly where loads are offset or unevenly distributed.
5. Lubrication and Protection
The LG series incorporates lubrication and contamination-protection features, with fittings, pipe connections, seals, and scrapers described in its product information. Lateral lubrication options are also available for consideration.
An effective maintenance plan should account for travel speed, stroke length, duty cycle, and the operating environment. Applications exposed to chips, dust, or coolant may require additional protection to reduce contamination of the rolling contact surfaces.
Lubricant selection and replenishment intervals should follow the applicable product guidance and operating conditions.
6. Information Needed for Guide Selection
To identify an appropriate LG series configuration, prepare the following information:
- Loading: Moving mass, workpiece weight, and center-of-gravity position.
- Motion: Travel direction, speed, acceleration, and stroke.
- Operating forces: Machining forces, impact loads, and operating frequency.
- Layout: Number of rails, rail spacing, and block arrangement.
- Requirements: Accuracy, installation space, and environmental conditions.
Use this information to check the selected model’s load ratings, permissible moments, and calculated service life.
Frequently Asked Questions
1. Does the LG series use balls or rollers?
The product page lists steel balls in the recirculation system, identifying the LG series as a ball-type linear guide.
2. Is a larger linear guide always a better choice?
No. Guide size should match the application’s loads, moments, rigidity requirements, and available space. Cost and drive requirements also matter.
3. How can I get help selecting an LG series guide?
Provide Simkawa with your application, loading conditions, stroke, and accuracy requirements to discuss rail size, block configuration, and preload.
Explore the Simkawa LG Heavy Duty Linear Guide for product details and selection support.
