Choosing an alternative to the HIWIN RG series involves more than finding a guideway with a similar appearance. For machinery operating under heavy loads, the replacement must meet requirements for mounting dimensions, rigidity, accuracy, and service life.
Simkawa LR roller guideways are worth evaluating for this purpose. Their roller-based design targets applications where load capacity and resistance to deformation are key selection factors. However, suitability should be confirmed for the specific assembly rather than assumed from the series name alone.
What Makes the HIWIN RG Series Different?
The HIWIN RG series uses rollers instead of steel balls as its rolling elements. Its 45-degree contact arrangement supports loads in four directions, while the roller contact geometry helps reduce elastic deformation under load.
These characteristics make the RG series relevant to precision machinery where maintaining stiffness under changing working forces is essential. HIWIN lists the series with accuracy grades from H to UP.
When evaluating an alternative, buyers should therefore look beyond nominal rail size and compare the complete guideway configuration.

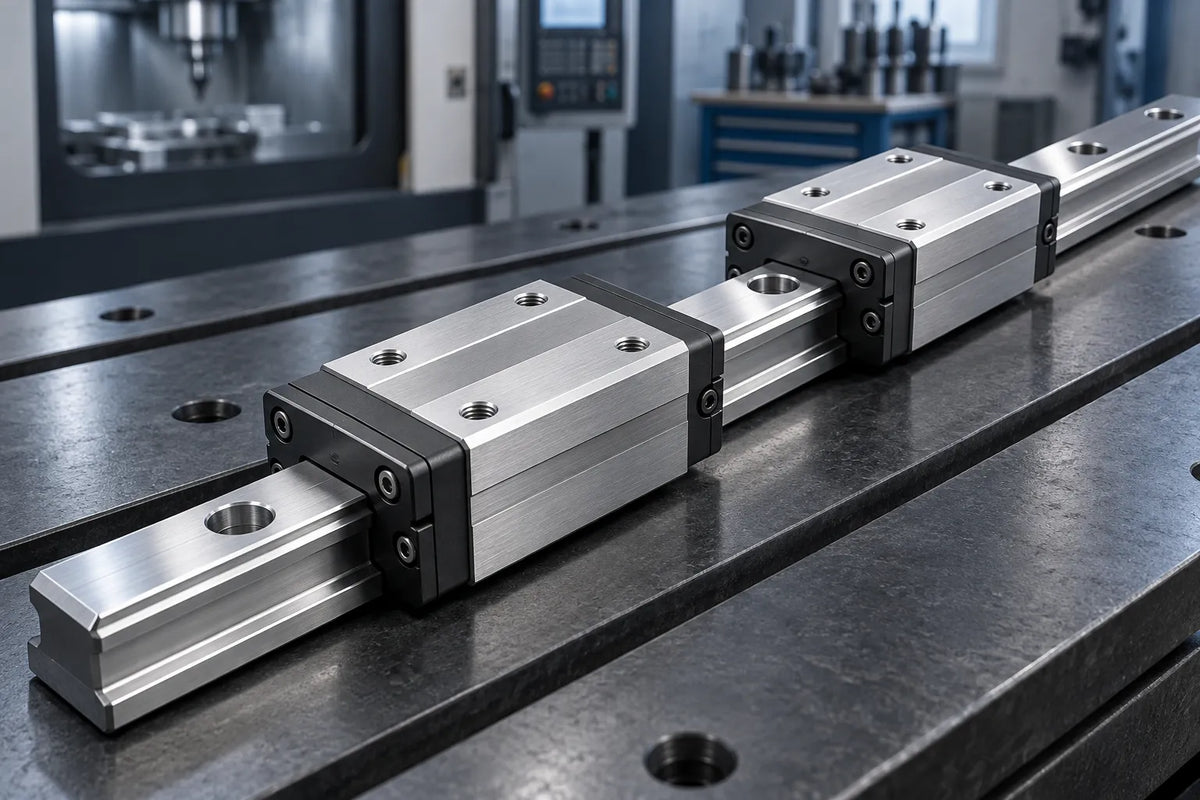

Introducing Simkawa LR Roller Guideways
Simkawa LR guideways also use rollers, with a 45-degree DB contact arrangement designed to support radial, reverse-radial, and lateral loads.
The LR product page lists H, P, SP, and UP accuracy grades, along with sealing and lubrication features. These specifications establish LR as a roller-guideway option for evaluation alongside HIWIN RG. They do not, by themselves, establish identical performance or direct interchangeability.
For a practical comparison, the next step is to identify the exact LR assembly that matches the machine’s installation and operating requirements.
HIWIN RG vs. Simkawa LR: What Should You Compare?
| Selection factor | What to check |
|---|---|
| Rolling-element design | Confirm that the proposed replacement is a roller guideway |
| Assembly dimensions | Compare installed height, block width, block length, and mounting-hole positions |
| Rail installation | Check rail width, height, hole pitch, and end-hole distances |
| Load capacity | Compare dynamic and static ratings for the exact block configuration |
| Moment capacity | Check ratings against the machine’s offset loads and working forces |
| Accuracy | Compare numerical tolerances, not only grade letters |
| Preload | Verify the specified preload and its suitability for the mounting structure |
| Lubrication and sealing | Confirm lubricant requirements, connection positions, and protection options |
A dimensional match is only one part of the assessment. The replacement must also meet the application’s load, stiffness, and accuracy requirements.
How to Evaluate a Simkawa LR Replacement
1. Identify the Complete Existing Model
Start with the full HIWIN ordering code. A description such as “RG35 guideway” does not provide enough information to select a replacement confidently.
Record the block style, block length, accuracy grade, preload, rail length, and number of blocks. Include any special seals or lubrication accessories.
If the ordering code is unavailable, provide photographs of the markings and measured installation dimensions.
2. Compare the Installation Drawings
Review the existing assembly drawing against the proposed Simkawa LR drawing.
Pay particular attention to installed height and mounting-hole locations. A height difference can affect the alignment of the moving table with other machine components, while a different hole pattern can require changes to the mounting plate.
Also check the available clearance around end seals, scrapers, and lubrication fittings.
3. Verify Load and Moment Ratings
Use the actual working conditions when comparing guideways. The assessment should include moving mass, process forces, acceleration, and any offset between the load and the guideway arrangement.
For example, a table carrying an off-center workpiece needs an assessment of moment loading as well as vertical load.
HIWIN’s technical catalog provides model-specific ratings and selection information. Compare these with the proposed LR specifications using consistent rating definitions and life-calculation assumptions.
4. Match Accuracy and Preload Requirements
The same accuracy-grade letters should not be treated as proof of identical tolerances across suppliers. Request the numerical specifications relevant to the assembly, including running parallelism and dimensional variation.
Preload also requires a separate check. HIWIN’s RG catalog describes different preload classes and their application considerations; the appropriate LR configuration should be selected against the machine’s requirements rather than copied from a suffix alone.
5. Confirm Protection and Maintenance Details
Simkawa describes end scrapers and rail dust-protection strips on its LR page. Confirm which accessories are included in the quotation and whether they suit the machine’s exposure to chips, dust, or coolant.
Request the lubrication instructions at the same time, including lubricant type, supply method, and maintenance interval for the intended duty.
Can Simkawa LR Blocks Run on Existing HIWIN RG Rails?
Cross-brand block-and-rail compatibility should not be assumed.
Matching external dimensions does not confirm matching internal raceway geometry, preload, or running accuracy. Unless the exact combination has been approved by the suppliers, evaluate replacement as a complete rail-and-block assembly.
Even when retaining the existing mounting holes is possible, the complete replacement still requires alignment and operating checks.
Is Simkawa LR a More Cost-Effective Choice?
The answer depends on a quotation for an equivalent, verified configuration.
Compare the cost of the complete assembly, including the required accuracy, preload, rail machining, seals, lubrication accessories, shipping, and installation work. A lower component price may offer limited savings if it creates additional machining or commissioning costs.
For repeat purchases, also request confirmed lead times, spare-part availability, and technical-support arrangements. These factors help determine whether the alternative fits the purchasing plan as well as the machine.
FAQ
Is Simkawa LR a ball guide or a roller guide?
Simkawa LR is a roller guideway series. Its rolling elements are rollers rather than steel balls.
Is every Simkawa LR model a direct replacement for HIWIN RG?
A direct replacement must be confirmed through model-specific drawings and performance data. Series-level similarity is insufficient.
What information is needed for a replacement assessment?
Provide the complete HIWIN model number, rail length, block quantity, installation drawing, accuracy and preload requirements, and working conditions.
Find a Simkawa LR Option for Your Application
Review the Simkawa LR roller guideways and send your existing HIWIN RG model details for a configuration review.
A useful replacement proposal should identify the recommended assembly, document the dimensional comparison, and confirm the load, accuracy, and installation requirements before ordering.
