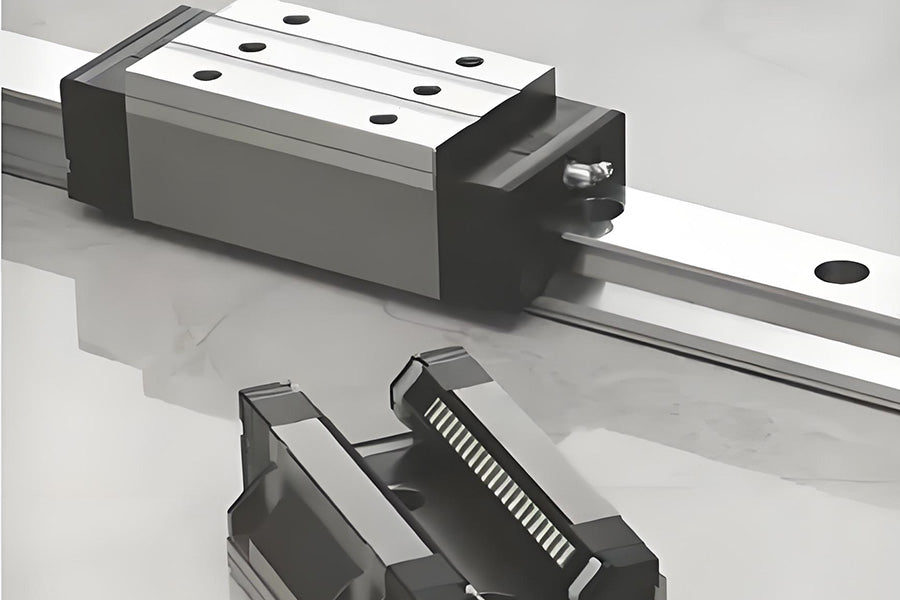

Selecting a linear guide is by no means a simple process of cross-referencing a catalog and ticking off parameters; rather, it is a systematic engineering decision. Today, I will guide you through three key dimensions—fundamental principles, selection logic, and practical techniques—to help you thoroughly master the essence of heavy duty linear guide selection.
1. The Essence of Linear Guides: Why Are They the "Lifeline" of Automation Equipment?
The core value of a heavy duty linear guide lies in the balance between "high-precision guidance" and "low-friction load-bearing." Its three core functions are:
1.1 Precise Guidance
Ensuring moving components travel along a predetermined trajectory (e.g., achieving a repetitive positioning accuracy of ±5μm).
1.2 Supporting Diverse Loads
Withstanding radial forces, moments, vibrations, and shocks (e.g., the complex forces acting on a machine tool spindle head).
1.3 Long-Term Stability
Maintaining operational lifespan under various working conditions, such as exposure to dust, humidity, and temperature fluctuations (e.g., the requirement for 10 years of maintenance-free operation in semiconductor manufacturing equipment).
Classic Case Study
In a linear module used in a photovoltaic string welder, the selection process overlooked the coefficient of thermal expansion. This resulted in positioning deviations exceeding 0.1mm under high-temperature conditions; the issue was ultimately resolved only after switching to stainless steel guides and optimizing the preload force.
2. Classification of Linear Guides
Classified by Preload Class (Directly impacts rigidity and precision)
- Light Preload (C0): For light loads and high speeds (e.g., the X-axis of a laser cutting machine).
- Medium Preload (C1): General-purpose standard (suitable for 80% of applications).
- Heavy Preload (C2): For applications requiring high rigidity (e.g., stamping robots).
Pitfall Avoidance Guide: Excessive preload can lead to increased frictional heat generation. In one instance, a lithium-ion battery stacking machine suffered from guide rail deformation caused by thermal expansion—a direct result of mistakenly selecting a C2 preload—ultimately forcing the machine to operate at a reduced speed.
3. The 7 Step Method for Heavy Duty Linear Guide Selection
3.1 Define Load Characteristics (The Cornerstone of Selection)
Calculate the actual loads (vertical force Fz, lateral force Fy, and moments Mx/My/Mz);
Apply the equivalent load formula:
P = F + \frac{2M}{D} \quad (where D is the guide rail span)
Case Study: In a logistics sorting module, calculations revealed that lateral forces accounted for over 60% of the load; consequently, a solution featuring wide-profile roller guides combined with lateral reinforcement ribs was ultimately selected.
3.2 Determine Motion Parameters (The Trade-off Between Speed and Acceleration)
High-speed scenarios (v > 2 m/s): Prioritize ball-type guides combined with grease lubrication;
High acceleration (a > 1g): Verify the cage's shock resistance to prevent the balls from disengaging from the raceway.
3.3 Precision Matching (Don't Pay for Excess Performance)
General machine tools: Standard Grade (±5 μm/m);
Semiconductor equipment: Precision Grade (±1 μm/m) + Temperature Compensation;
The Reality: The precision specifications listed in product catalogs represent laboratory data; actual precision = Guide Rail Precision × Flatness of Mounting Reference Surface × Assembly Process Quality.
3.4 Environmental Adaptability (The "Invisible Killer")
Dusty environments: Select sealed-type guides (e.g., THK's SEB series);
Corrosive environments: Use stainless steel materials (note that hardness decreases by 20%);
Vacuum environments: Require specialized grease (with an evaporation rate < 10⁻⁹ Pa·m³/s).
3.5 Lifetime Calculation (Bridging the Gap Between Theory and Reality)
Basic Lifetime Formula:
L = \left( \frac{C}{P} \right)^3 \times 50 \, \text{km}
Key Adjustments: Actual lifetime must be multiplied by a load factor (fw) and a temperature factor (ft). In a specific AGV project, failure to account for the vibration factor (fw = 1.5) resulted in an actual service life of only 40% of the theoretical calculation.
3.6 Brand and Cost-Effectiveness (Deep-Dive Decision-Making)
Premium Choices: THK, HIWIN (stable precision, high cost);
Domestic Alternatives: HIWIN (high cost-performance ratio), Kait (advantages in heavy-load applications);
A Hard-Learned Lesson: An automated production line, seeking to cut costs, opted for generic guide rails; they required replacement three times within a single year, resulting in downtime losses that far exceeded the cost of the rails themselves.
3.7 Verification and Iteration (The Key to a Closed Loop)
Conduct FEA (Finite Element Analysis) for stress distribution (especially for cantilever structures);
Build and test a prototype (focusing specifically on impact shocks and abnormal noises during start-up and shut-down).
4. The Three Iron Rules of Installation and Commissioning
4.1 Base Surface Preparation (The Error Amplifier)
Flatness Requirement: Typically ≤ 0.01 mm/m;
Machining Method: Prioritize grinding; use milling with caution (it tends to result in a convex surface).
4.2 Bolt Tightening Sequence (Releasing Internal Stress)
Tighten diagonally, working "from the center outward";
Apply torque in three stages (30% → 70% → 100%).
4.3 Parallelism Calibration (The Critical Threshold)
Use a laser interferometer to verify the parallelism of dual guide rails (≤ 0.02 mm/m);
A Classic Error: A CNC machine tool suffered from excessive guide rail parallelism errors, resulting in a backlash of 0.1 mm—a deviation that could not be eliminated despite repeated compensation attempts.
5. Maintenance and Upkeep
5.1 Lubrication Management
Grease Lubrication: Replenish every 100 km of travel (e.g., using Molykote EM-50L);
Oil Lubrication: Install an automatic oiler (to prevent the oil film from rupturing).
5.2 Contamination Control
Install telescopic covers/bellows (e.g., Accuride's protective kits);
Regularly wipe down the rail surfaces using a non-woven cloth.
5.3 Health Monitoring
Listen for abnormal noises (a precursor to damage in the raceways);
Monitor temperature rise (shut down and inspect if the temperature exceeds 60°C).
Summary
Selecting the right heavy duty linear guide rail is a "balancing act between requirements and constraints"—there is no single absolutely correct answer, only the most suitable compromise. When you are able to look past the data sheets and perceive the underlying physical essence—when you can distill design principles from countless rounds of troubleshooting—you will truly understand:
“Component selection is not a multiple-choice question; it is the art of systems engineering.”
