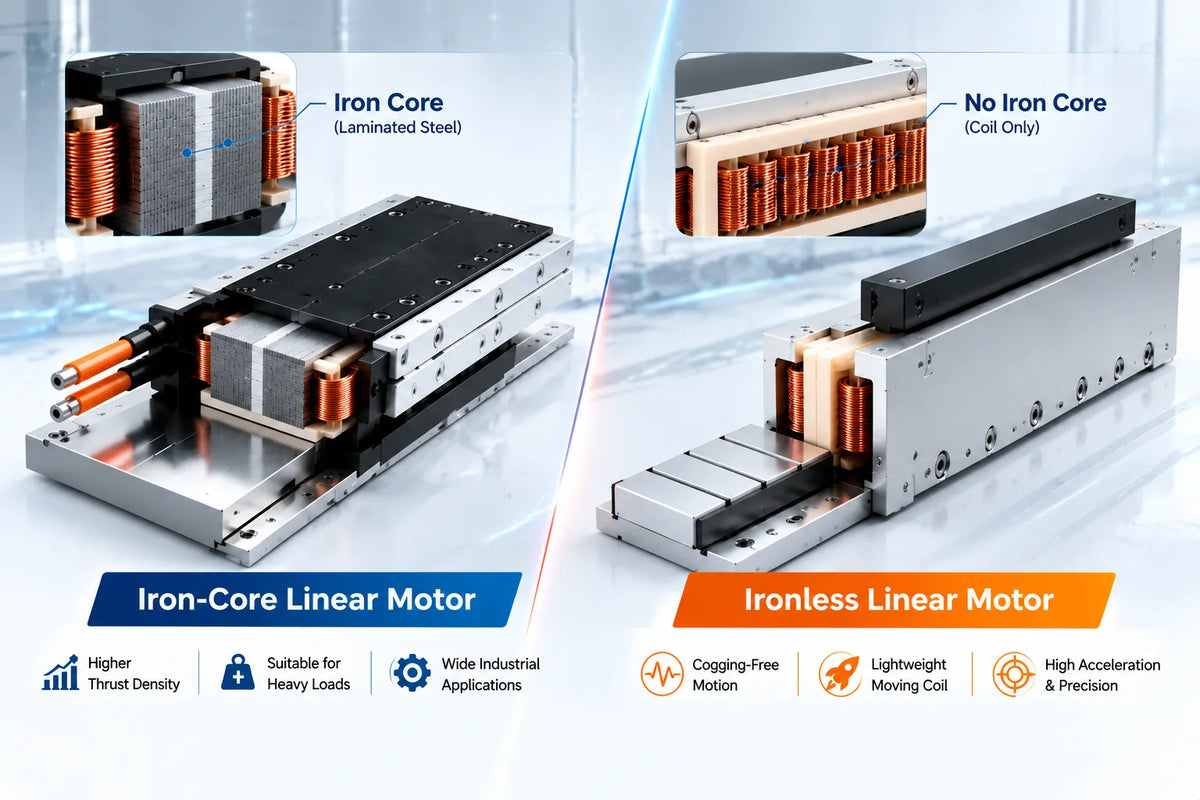

Iron Core vs. Ironless Linear Motors: Key Differences

Iron-core linear motors generally offer higher thrust density, while ironless linear motors provide cogging-free motion and a lightweight moving coil. The right choice depends on your requirements for thrust, acceleration, motion smoothness, and positioning precision.

At Simkawa, our linear motor range includes the DUD ironless series and the DPD, DPN, DPW, and DPG iron-core series, offering solutions for different industrial motion applications.

1. What Is an Iron-Core Linear Motor?

An iron-core linear motor contains an iron core, typically formed from laminated electrical steel, within its coil assembly. The iron helps concentrate magnetic flux and strengthens the electromagnetic interaction between the coil and the permanent magnet track.

This structure allows the motor to generate substantial thrust within a relatively compact design, making iron-core linear motors a common choice for demanding industrial motion applications.

Key characteristics

• High thrust density: Generates substantial force relative to motor size.

• Strong driving capability: Suitable for moving heavier loads and supporting demanding acceleration profiles.

• Magnetic attraction: The coil assembly and magnet track experience a normal attraction force that the mechanical structure must accommodate.

• Potential cogging: The interaction between the iron core and the magnet poles can create force variation during movement. Optimized magnetic circuit designs can reduce this effect.

• Industrial versatility: Available in different configurations to suit high-force, high-speed, and space-constrained applications.

Simkawa iron-core linear motor series

Simkawa offers several iron-core linear motor options for different installation and performance requirements:

• DPD Series – Standard Iron-Core Linear Motor: Designed for high thrust density, compact integration, and direct-drive motion.

• DPN Series – Small-Size Iron-Core Linear Motor: A compact option for installations with limited space.

• DPW Series – High-Force Iron-Core Linear Motor: Intended for applications requiring substantial thrust and dynamic response.

• DPG Series – Iron-Core Linear Motor: Offers high-speed operation and a range of thrust options.

These series provide different configurations rather than a single universal solution. The appropriate model depends on the required continuous thrust, peak thrust, speed, acceleration, and available installation space.

2. What Is an Ironless Linear Motor?

An ironless linear motor has no iron core in its coil assembly. The windings are typically embedded in a lightweight nonmagnetic support structure and interact with the permanent magnets to produce linear motion.

Because the coil assembly lacks iron teeth, the characteristic cogging associated with an iron-core design is eliminated. The motor also avoids the normal magnetic attraction between the coil assembly and the magnet track found in conventional iron-core designs.

These characteristics make ironless linear motors particularly suitable for applications where motion smoothness and dynamic response are more important than maximizing thrust density in the smallest possible motor.

Key characteristics

• Cogging-free motion: Eliminates cogging caused by iron-core teeth interacting with the magnet track.

• Low moving mass: The lightweight coil assembly supports rapid acceleration and deceleration.

• Smooth low-speed movement: Well suited to applications requiring consistent velocity and precise motion control.

• No significant coil-to-track attraction force: Simplifies the mechanical design by avoiding the normal magnetic attraction characteristic of iron-core motors.

• Precision-focused applications: Suitable for scanning, inspection, positioning, and other demanding motion tasks.

Simkawa DUD ironless linear motor

Our DUD Ironless Linear Motor Series features a lightweight coil structure designed for precision and dynamic motion applications.

According to the product specifications, its coreless construction eliminates magnetic resistance variations associated with an iron core, while the lightweight coil supports rapid response. Typical acceleration can exceed 50 g in suitable configurations; actual performance depends on the selected model, moving mass, drive system, and mechanical setup.

For applications requiring high acceleration, smooth scanning, or stable motion at low speeds, the DUD series is worth evaluating.

3. Iron Core vs. Ironless Linear Motors: Key Differences

The following table summarizes the main engineering differences between the two motor types.

4. Which Linear Motor Is Better for Your Application?

Neither iron-core nor ironless linear motors are universally better. The right choice depends on the motion profile and the physical demands of the application.

Choose an iron-core linear motor when:

• The system requires high thrust within a limited installation space.

• The moving platform or workpiece has substantial mass.

• The machine requires strong driving force for demanding motion cycles.

• The mechanical structure can accommodate the motor's magnetic attraction forces.

• The application prioritizes force density and industrial driving capability.

Potential applications include heavy-duty automation, machine-tool axes, high-force positioning systems, and industrial equipment requiring substantial thrust.

For these requirements, explore Simkawa's DPW high-force series or DPD standard series.

Choose an ironless linear motor when:

• Smooth, cogging-free motion is a priority.

• The application requires rapid acceleration and deceleration.

• The moving assembly should remain lightweight.

• Stable velocity at very low speeds is important.

• The system requires precise scanning or frequent, rapid positioning.

Potential applications include semiconductor equipment, electronic inspection systems, precision scanning mechanisms, and high-speed pick-and-place systems where motion quality is critical.

For these requirements, consider the DUD ironless linear motor.

The application examples above are general engineering guidelines. Final suitability must be established using the actual load, duty cycle, motion profile, and machine configuration.

5. Five Factors to Check Before Selecting a Linear Motor

The motor's iron-core or ironless construction is only one part of the selection process. Before choosing a model, evaluate the complete motion system.

5.1 Continuous and Peak Thrust

Continuous thrust determines whether the motor can sustain the required force over its operating cycle. Peak thrust determines its short-duration capability during acceleration or other demanding motion events.

Calculate the force required to accelerate the moving mass, overcome friction, and handle any external process forces. Check both continuous and peak requirements against the motor's specifications.

5.2 Moving Mass and Acceleration

The total moving mass includes the motor's moving component, mounting hardware, platform, workpiece, and any attached equipment.

A lighter ironless coil can be advantageous when acceleration is a major performance requirement. However, the complete system's achievable acceleration also depends on available thrust, moving mass, mechanical rigidity, and servo control.

5.3 Cogging and Velocity Stability

Cogging is a periodic force variation associated with the interaction between iron-core teeth and the magnet track. It can affect velocity uniformity, especially during sensitive low-speed motion.

Ironless motors eliminate this particular source of cogging. However, overall motion quality still depends on encoder resolution, servo tuning, force ripple, structural vibration, and the mechanical system.

5.4 Magnetic Attraction and Guide Loading

Iron-core motors generate normal magnetic attraction between the coil assembly and magnet track. The machine frame, bearings, and linear guides must accommodate the resulting forces without excessive deflection or wear.

Ironless designs avoid this coil-to-track attraction force, which can simplify mechanical integration. Nevertheless, the guides and support structure must still be sized for the payload, acceleration forces, and external loads.

5.5 Thermal Management and Installation Space

Both motor types generate heat, and their continuous thrust capability depends on effective thermal management.

Iron-core designs may transfer heat through the iron structure into the machine frame. Ironless coil assemblies can require particular attention to heat dissipation, depending on their construction and cooling arrangement.

Also consider magnet-track geometry, travel length, cable management, encoder installation, cooling requirements, and the available mounting space before finalizing the motor selection.

6. How Simkawa Helps You Select a Suitable Linear Motor

At Simkawa, we offer both iron-core and ironless linear motor solutions for different motion requirements. Our product range allows equipment manufacturers and automation engineers to evaluate different motor configurations based on application needs rather than selecting solely by motor type.

When requesting a recommendation, provide the following information where available:

• Required continuous and peak thrust

• Moving mass and external load

• Maximum speed and acceleration

• Stroke length and duty cycle

• Required positioning accuracy and velocity stability

• Available installation space and cooling conditions

• Encoder, servo drive, and controller requirements

With these details, our team can help identify suitable models from the DUD, DPD, DPN, DPW, and DPG series and review the technical specifications relevant to your application.

Explore our linear motor product range to compare available options, or contact Simkawa to discuss your motion requirements.

Conclusion

Iron-core linear motors are generally suited to applications prioritizing high thrust density and substantial driving force. Ironless linear motors are particularly suitable for applications requiring cogging-free motion, low moving mass, high acceleration, and stable low-speed movement.

Simkawa offers the DUD series (ironless) as well as the DPD, DPN, DPW, and DPG series (iron-core) to address a wide range of direct-drive motion requirements.

The best choice is not determined by motor construction alone. Evaluate thrust, moving mass, acceleration, velocity stability, magnetic attraction, thermal management, and installation conditions to select a linear motor that meets your system's actual requirements.

7. Frequently Asked Questions

Q1. What is the main difference between iron-core and ironless linear motors?

The main difference is whether the coil assembly contains an iron core. Iron-core motors generally provide higher thrust density, while ironless motors eliminate iron-core cogging and reduce moving mass, making them suitable for smooth, high-dynamic motion.

Q2. Which linear motor produces more thrust?

Iron-core linear motors generally deliver higher thrust density in conventional designs because the iron core concentrates magnetic flux. However, actual thrust depends on the specific motor's size, magnetic circuit, cooling, and electrical configuration. Compare rated continuous and peak thrust rather than relying on the motor category alone.

Q3. Are ironless linear motors more accurate?

Not automatically. Ironless motors eliminate iron-core cogging and can provide smoother motion and more consistent velocity. Positioning accuracy also depends on the encoder, servo controller, mechanical rigidity, thermal stability, and system calibration.

Q4. Why do iron-core linear motors experience magnetic attraction?

The iron in the coil assembly is attracted to the permanent magnets in the motor track. This creates a normal force in addition to the motor's useful thrust. The mechanical support system must be designed to accommodate that force.

Q5. Can an ironless linear motor achieve high acceleration?

Yes. Its lightweight coil assembly can reduce moving mass and support high acceleration. Simkawa's DUD series is designed for high-dynamic motion, with typical acceleration above 50 g stated for suitable configurations. Actual acceleration depends on the selected motor, payload, available thrust, and mechanical setup.
